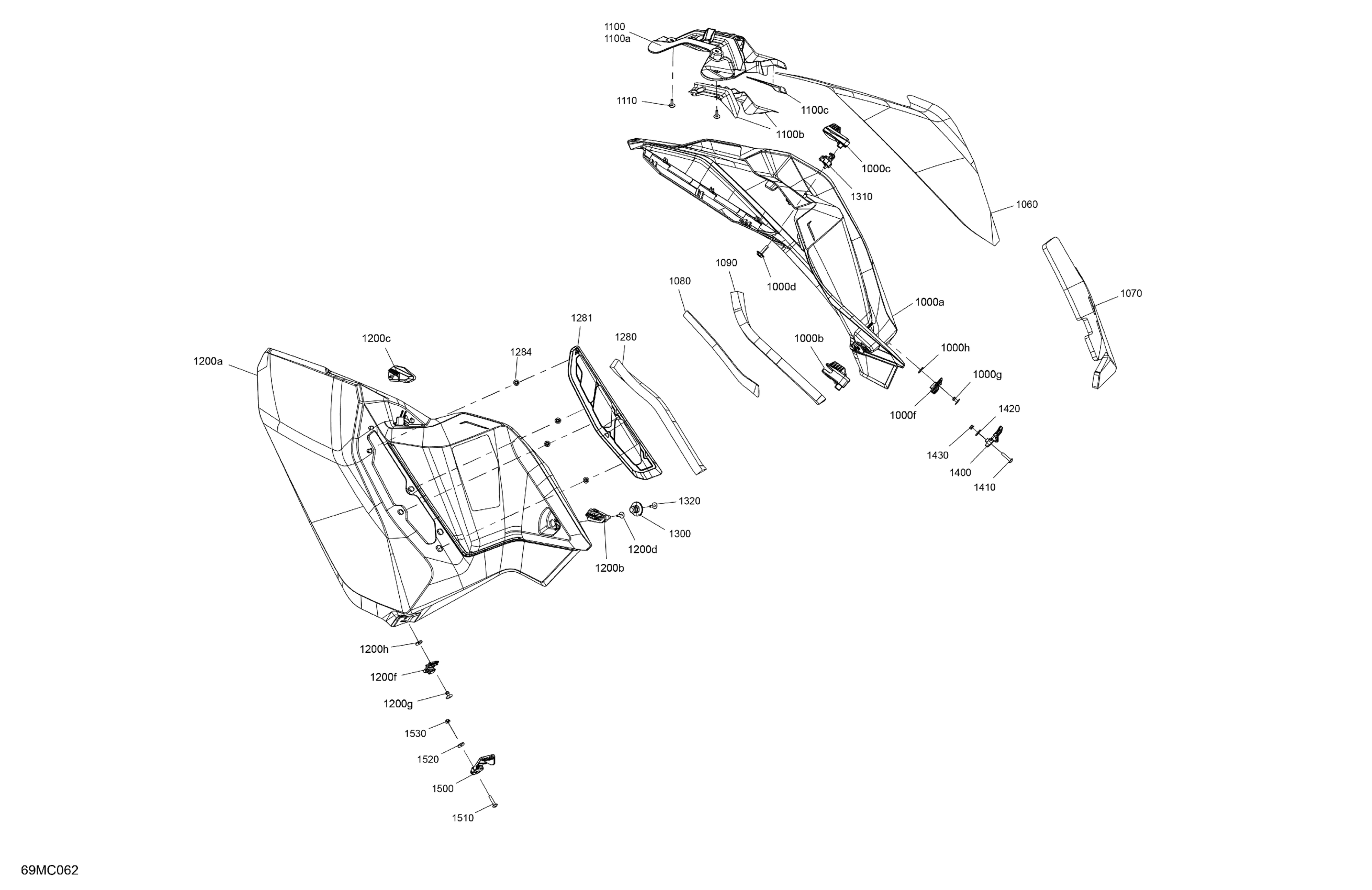

Ski-Doo 009 - MXZ 600 EFI - 40 - NEO - North America, 2023 07- Body - Side Panels Diagram

Description

Price

1000a

Catalyst Gray, RH Panel

517307399

$214.99

1000b

RH Rear Latch

517305773

$18.49

1000c

RH Front Latch

517305979

$16.79

1000d

Screw M4 X 16

250000725

$3.49

1000f

RH Hook

517306311

$12.99

1000g

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1000h

Washer

517124300

$0.19

1060

RH Central Panel Foam

517306188

$29.99

1070

RH Rear Panel Foam

517306586

$13.49

1080

Rubber Sheet

517306262

$30.99

1090

RH Rear Panel Foam

517306480

$11.99

1100

RH Front Grille Ass'y | Includes 1100 to 1100c

517308289

$31.99

1100a

Not Available As Spare Parts

XXX

Unavailable

1100b

Foil Kit

517308787

$4.39

1100c

Heat Shield

517307667

$2.19

1110

Screw M4 X 16

250000725

$3.49

1200a

Catalyst Gray, LH Panel

517307405

$214.99

1200b

LH Rear Latch

517305774

$18.49

1200c

LH Front Latch

517305980

$18.49

1200d

Screw M4 X 16

250000725

$3.49

1200f

LH Hook

517306312

$12.99

1200g

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1200h

Washer

517124300

$0.19

1280

LH Rear Panel Foam

517306479

$11.99

1281

LH Grille

517306944

$17.99

1284

Push Nut

732610072

$2.19

1300

Rear Stud

517305985

$15.36

1310

Front Stud

517305988

$16.18

1320

Screw M4 X 16

250000725

$3.49

1400

RH Lower Latch

517306309

$18.99

1410

Torx Screw M5 X 25

250000762

$2.11

1420

Washer | DS 650 X

391301600

$0.48

1430

Hex. Flange Nut M5

233151414

$0.55

1500

LH Lower Latch

517306310

$18.99

1510

Torx Screw M5 X 25

250000762

$2.11

1520

Washer | DS 650 X

391301600

$0.48

1530

Hex. Flange Nut M5

233151414

$0.55
