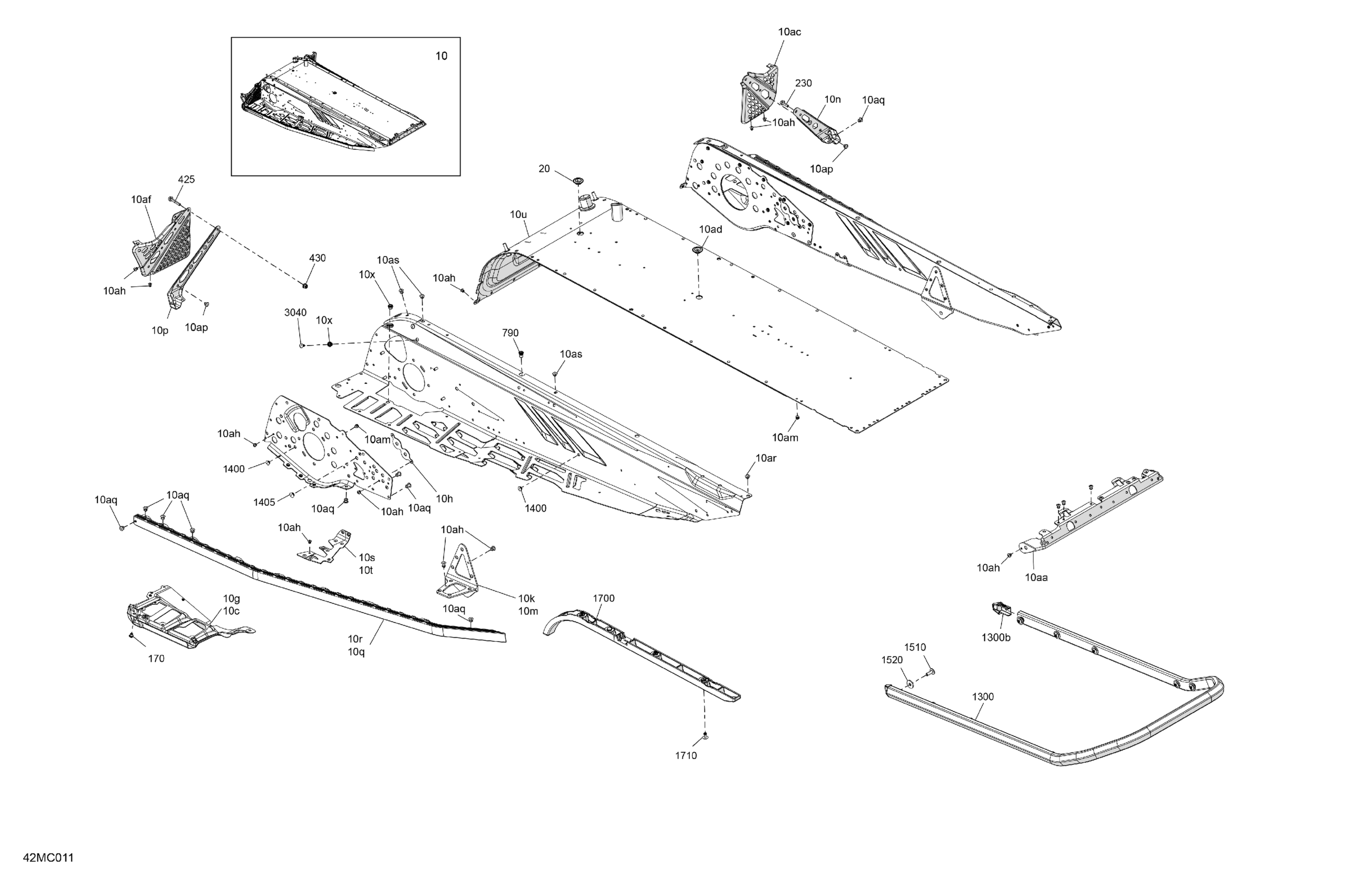

Ski-Doo MXZ 600 EFI - 40 - NEO - 2023 Frame - System - Rear Section Diagram

#

Description
Price

10

Chassis Tunnel Module 120 | Includes 10 to 10b

415130696

$3,069.20

10c

Deep Black, RH Footrest Reinforcement

518330738

$82.28

10g

Deep Black, LH Footrest Reinforcement

518331523

$82.28

10h

Front Suspension Arm Reinforcement

518327233

$16.12

10k

LH Rear Suspension Support

518334417

$96.12

10m

RH Rear Suspension Support

518334418

$96.12

10n

Stirrup Reinforcement

518334507

$18.43

10p

Deep Black, LH Chassis Reinforcement

518332924

$18.43

10q

RH Roller

518328451

$180.74

10r

LH Roller

518328452

$180.74

10s

LH Footrest Reinforcement

518332296

$18.43

10t

RH Footrest Reinforcement

518332297

$18.43

10u

Radiator Tunnel 120 Ass'y

518334496

$692.28

10x

Insert Half Hex Body M6 x 1.0

250100199

$2.54

10aa

Rear Cap

518328990

$20.74

10ac

RH Footrest

518333006

$38.43

10ad

Black, Plug

293730052

$6.37

10af

LH Footrest

518333007

$38.43

10ah

Rivet Avibulb 3/16

293150203

$0.29

10am

Henrob Rivet

293150245

$1.65

10ap

Rivet Ornit 6,5 X 10.5

293150264

$1.94

10aq

Rivet Ornit 6,5 X 12.5

293150265

$1.94

10ar

Rivet Ornit 6,5 X 16.5

293150267

$1.94

10as

Ornit Rivet 6,5 X 14.5

293150266

$1.94

20

Black, Plug

293730052

$6.37

170

Insert M5 - 0.8

293450267

$4.22

230

Hex. Flange Screw M6 X 20

207562056

$1.74

425

Hex. Flange Screw M6 X 20

207562056

$1.74

430

Elastic Flange Nut M6 X 1.0

233261416

$1.74

790

Insert

293450278

$4.09

1300

Rear Bumper 120 | Includes 1300 to 1300b

518331613

$114.99

1300b

Insert

293450275

$9.89

1400

Full Moon Dart 8 mm

293730041

$2.12

1405

Full Moon Dart 10 mm

293730059

$4.42

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

1520

Flat Washer

224061201

$1.11

1700

Front Protector

518329982

$17.66

1710

Pop Rivet 3/16”

293150108

$1.23

3040

Dart

293730079

$1.92
