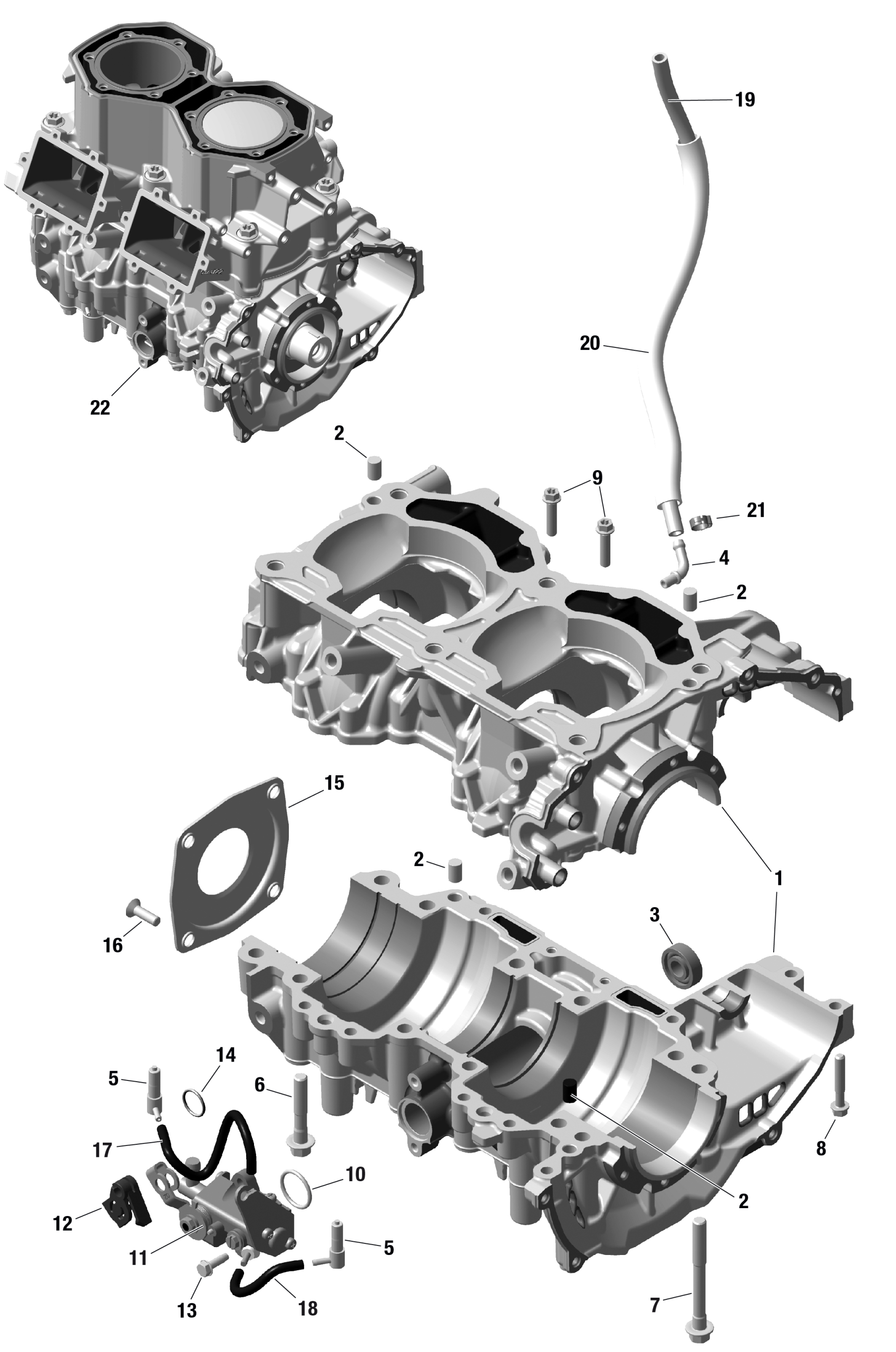

Ski-Doo MXZ 600 EFI - 40 - NEO - 2023 ROTAX - Crankcase Diagram

#

Description
Price

1

Crankcase Ass'y | Includes no. 1-6

420686664

$1,091.76

2

Center Pin 8 X 12

420632010

$3.52

3

Ball Bearing

420232100

$17.88

4

Impulse Fitting

420924529

$8.09

5

Check Valve

420956511

$32.81

6

Collar Hex Screw M8 X 45

420640433

$1.88

7

Collar Hex Screw M8 X 75

420640833

$1.88

8

Torx Flange Screw M6 X 35

420440274

$0.96

9

Torx Flange Screw M6 X 25

420440234

$2.91

10

O-Ring

420430373

$3.01

11

Oil Pump Ass'y | Includes no. 11-12

420888781

$375.34

12

Lever

420260171

$0.90

13

Taptite Screw M5 X 16

420941926

$0.45

14

O-Ring

420430110

$4.15

15

Oil Seal Cover

420812422

$14.10

16

Screw M6 X 20

420941436

$2.72

17

Oil Line 150MM

420960043

$2.99

18

Oil Hose This part replaces 420201241.

414413800

Unavailable

19

Oil Line 310MM

420201551

$7.09

20

Protector Tube

420460047

$12.15

21

Clamp

420853653

$7.01

22

Short Block 598 Blast

420059832

$2,139.99
