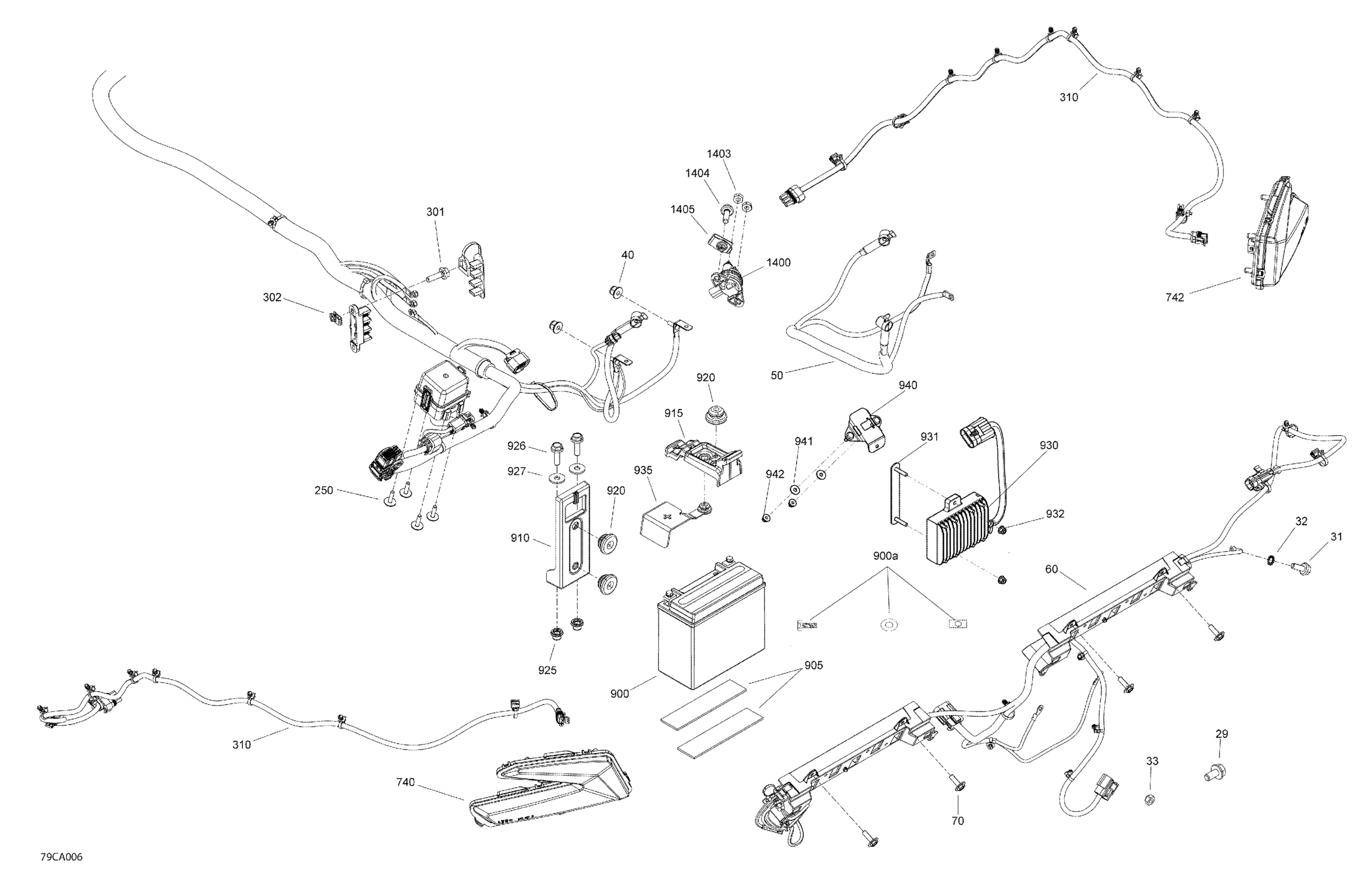

Can-Am Maverick Turbo RR - XDS_XRS - 2021 Electric - Rear System Diagram

#

Description
Price

29

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.15

31

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

32

External Serrated Lock Washer 6 mm

234461608

$1.15

33

Elastic Stop Nut M6, Brass

232561200

$4.23

40

Elastic Stop Nut M6, Brass

232561200

$4.23

50

Starter Wiring Harness

710007440

$77.99

60

Junction Wiring Harness

710007023

$97.99

60

Junction Wiring Harness

710007303

$97.99

70

Screw PT Type K-50 X 16

250000959

$2.11

250

Screw M4 X 16

250000725

$3.49

301

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

302

Panel Nut M6 X 1.0

250100198

$2.11

310

Rear Wiring Harness

710006424

$27.99

740

LH Tail Light

710004743

$134.99

742

RH Tail Light

710004744

$134.99

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

900a

Battery Bolt Kit

250000282

$7.29

905

Rubber Pad

293830126

$13.76

910

Fixation Plate

710004788

$11.49

915

Fixation Plate

710004789

$9.29

920

Stopper Rubber

705014429

$5.95

925

Insert Half Hex Body M6 x 1.0

250100199

$3.19

926

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

927

Flat Washer 6 mm

234062410

$0.77

930

Voltage Regulator

710006824

$222.49

931

Voltage Regulator Support

710006987

$11.49

932

Hex. Flange Elastic Nut M6

233261494

$1.58

935

Battery Cable Cap

710006471

$2.59

940

Cable Support

710009507

$10.99

941

Stainless Steel Flat Washer

234062670

$2.11

942

Hex. Flange Elastic Nut M6

233261494

$1.58

1400

Starter Relay

278003012

$42.49

1403

Elastic Stop Nut M6, Brass

232561200

$4.23

1404

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

1405

Panel Nut M6 X 1.0

250100198

$2.11
