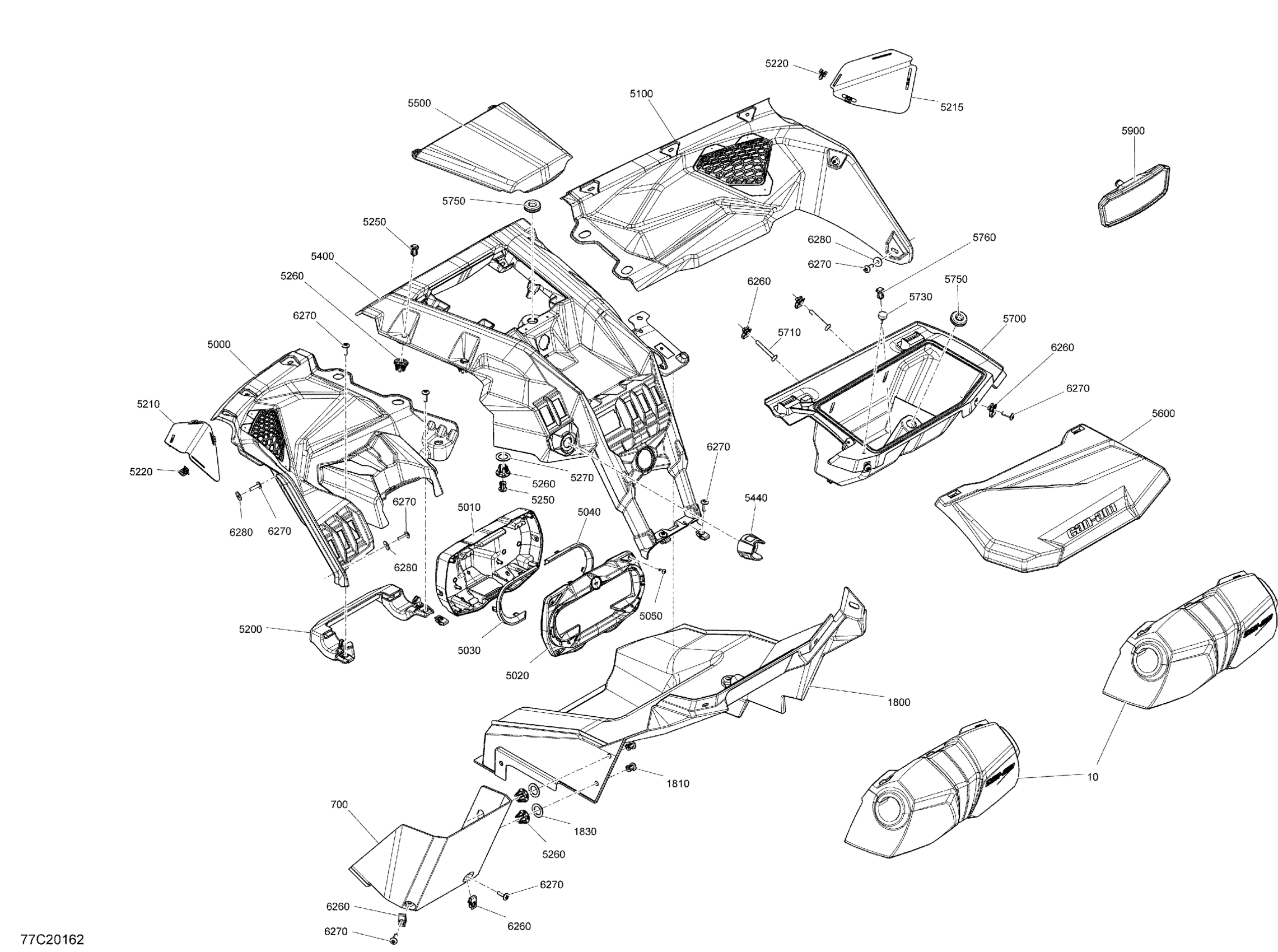

Can-Am Maverick MAX Turbo RR - XMR - 2020 Cab Interior - Dashboard - XMR Diagram

Description

Price

Foam

707900653

$119.97

700

Cover Central Console

707900473

$27.66

1800

RH Lower Dash Panel

707900410

$73.82

1810

Tuflok Plastic Rivet

293150230

$1.21

1830

Washer

503189273

$3.20

5000

LH Dashboard Kit

715006587

$110.74

5010

Rear Gauge Trim

709402141

$19.97

5020

Front Gauge Trim

709402142

$20.74

5030

Deep Black, LH Trim Gauge

705012349

$4.34

5040

Deep Black, RH Trim Gauge

705012351

$4.34

5050

Torx Truss Screw K40 X 12

250000577

$1.74

5100

RH Dashboard

707900698

$41.51

5200

Dash Support

707900479

$14.37

5210

LH Speaker Cover

707900465

$26.89

5215

RH Speaker Cover

707900590

$26.89

5220

Edge Clip

517302785

$0.70

5250

Tuflok Plastic Rivet

293150230

$1.21

5260

Insert

707900133

$2.75

5270

Washer

503189273

$3.20

5400

Central Dashboard

707901065

$63.05

5440

Key Protector

707900598

$4.98

5500

Dash Cover

707900400

$27.66

5600

Glove Box Cover Kit

715004067

$55.35

5700

Glove Box

707900350

$92.28

5710

Torx Truss M6 X 50

250000868

$1.74

5730

Rubber Stopper

708000759

$3.61

5750

Grommet

517303756

$3.15

5760

Tuflok Plastic Rivet

293150230

$1.21

5900

Central Mirror

707900502

$55.35

6260

Panel Nut M6 X 1.0

250100198

$1.73

6270

Torx Screw M6 X 20

250000722

$1.34

6280

Stainless Steel Flat Washer

234062670

$1.74
