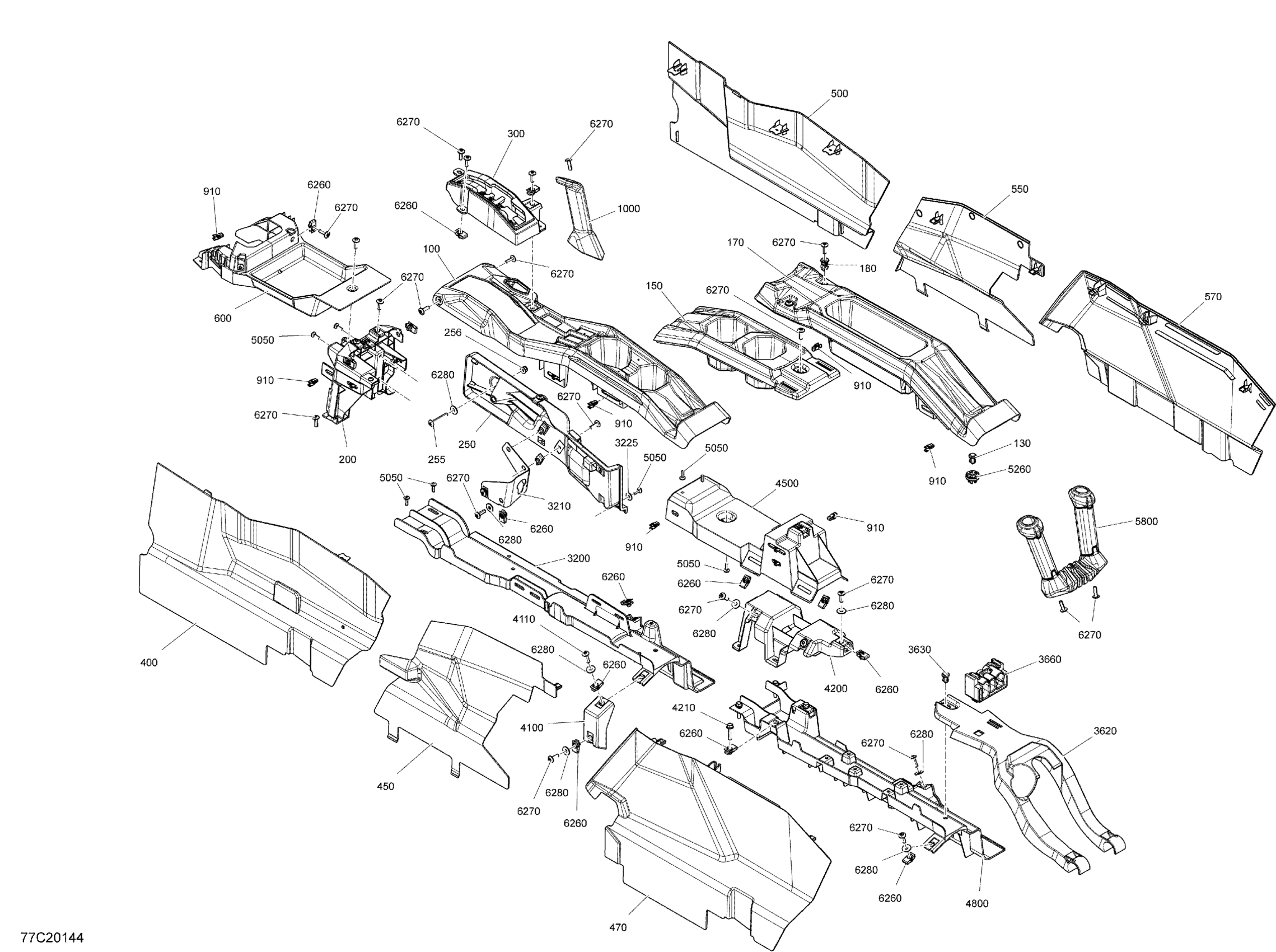

Can-Am Maverick MAX Turbo RR - XMR - 2020 Cab Interior - Console - XMR Diagram

#

Description
Price

100

Front Console Kit

715004068

$156.89

100

Front Console Kit | Model With Smart Lock Differential

715005025

$147.66

130

Tuflok Plastic Rivet

293150230

$1.21

150

Middle Console

707900492

$20.74

170

Rear Console

707900568

$20.74

180

Insert

705016606

$2.31

200

Front Central Console Support

707900459

$64.58

250

Shifter Gate Support

707900488

$27.66

255

Torx Screw M6 X 45

250000748

$1.56

256

Hex. Flange Elastic Nut M6

233261466

$1.66

300

Lever Indicator

707900644

$23.05

400

LH Lateral Dash Panel

707900396

$69.20

450

LH Middle Lateral Dash Panel

707900497

$69.20

470

LH Rear Lateral Dash Panel

707900571

$69.20

500

RH Lateral Dash Panel

707900397

$69.20

550

RH Middle Lateral Dash Panel

707900498

$69.20

570

RH Rear Lateral Dash Panel

707900572

$69.20

600

Front Top Console

707900460

Unavailable

910

Clip

705010721

$2.31

1000

Passenger Handle

707900011

$12.91

3200

Central Support Hose

707900710

$46.12

3210

Cable Support

707900478

$11.15

3225

Washer M5

250200025

$0.61

3620

Hose Support | Not Shown

707900651

$36.89

3630

Tuflok Plastic Rivet

293150230

$1.21

3660

Support Hose Rear

707900699

$5.52

4100

Central Console Support

707900501

$12.31

4110

Torx Truss Screw M6 X 25

250000807

$1.74

4200

Rear Console Support

707900569

$16.89

4210

Hex. Flange Screw M6 X 1.0 X 30

207663056

$3.61

4500

Console Support

707900573

$36.89

4800

Support Hose Central

707900711

$46.12

5050

Torx Truss Screw K40 X 12

250000577

$1.74

5260

Insert

707900133

$2.75

5800

Passenger Handle

707900575

$32.28

6260

Panel Nut M6 X 1.0

250100198

$1.73

6270

Torx Screw M6 X 20

250000722

$1.34

6280

Stainless Steel Flat Washer

234062670

$1.74
