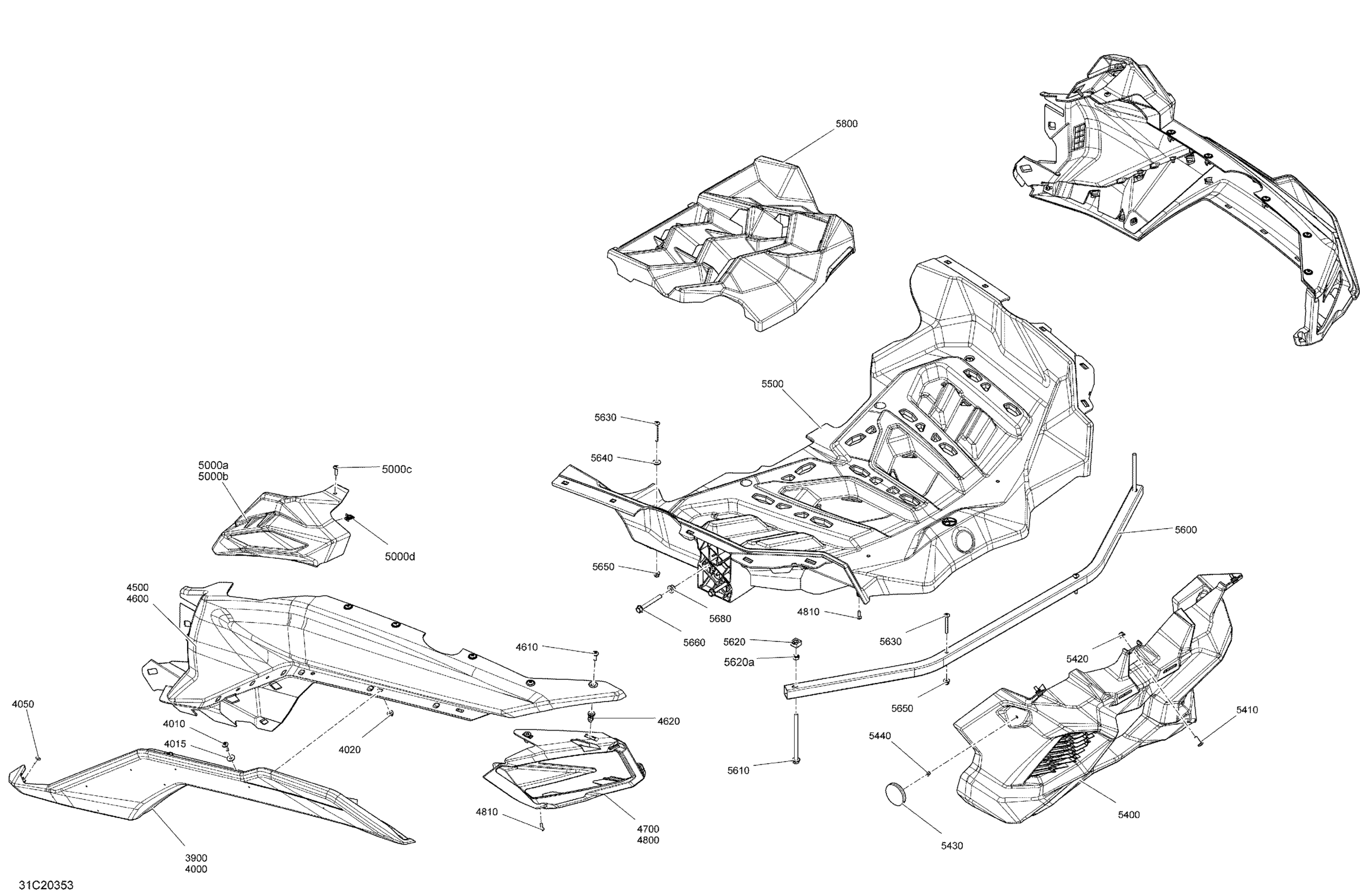

Can-Am Maverick MAX Turbo RR - XMR - 2020 Body - Rear Section - XMR - Green Diagram

Description

Price

3900

LH Rear Fender Deflector

705009511

$52.99

4000

RH Rear Fender Deflector

705017543

$48.99

4010

Torx Screw M6 X 20

250000722

$1.68

4015

Stainless Steel Flat Washer

234062670

$2.11

4020

Hex. Elastic Flange Nut M6

233161464

$1.01

4050

Torx Screw K50 X 16

250000720

$1.69

4500

Mineral Gray Satin, LH Rear Fender

705014346

$309.99

4600

Mineral Gray Satin, RH Rear Fender

705014352

$309.99

4610

Torx Screw M6 X 20

250000722

$1.68

4620

Insert

705016606

$2.79

4700

LH Rear Lateral Cover

705010686

$36.99

4800

RH Rear Lateral Cover

705010687

$36.99

4810

Torx Screw K50 X 16

250000720

$1.69

5000a

LH Rear Cage Trim

705010335

$35.99

5000b

RH Rear Cage Trim

705010336

$35.99

5000c

Torx Screw M6 X 20

250000722

$1.68

5000d

Clip

293650268

$0.73

5400

Rear Fairing

705017558

$209.99

5410

Torx Screw M6 X 20

250000722

$1.68

5420

Panel Nut M6 X 1.0

250100198

$2.11

5430

Red Reflector

705011221

$14.49

5440

Elastic Flange Nut M5

233251494

$2.11

5500

Luggage Rack Kit

715006592

$444.99

5600

Luggage rack Tube

705012589

$36.99

5610

Hex. Flange Screw M8 X 130

230683034

$7.51

5620

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

5620a

Hex. Elastic Nut M8 Brass

232581200

$2.22

5630

Torx Truss M6 X 50

250000868

$2.11

5640

Stainless Steel Flat Washer

234062670

$2.11

5650

Hex. Flange Elastic Nut M6

233261494

$1.58

5660

Hex. Flange Screw M8 X 70

207687044

$7.41

5670

Hex. Flange Nut M8

233081416

$1.15

5680

Panel Nut M6 X 1.0

250100198

$2.11

5800

Rear Cover

705013757

$224.99
