Description

Price

100

Mineral Satin Gray, LH Front Fender

705014304

$139.99

200

Mineral Satin Gray, RH Front Fender

705014312

$139.99

210

Clip

705010721

$2.61

220

Edge Clip

517302785

$0.88

230

Support Plate

705003841

$0.99

240

Panel Nut M6 X 1.0

250100198

$2.11

300

Manta Green, Front Panel

705014098

$74.99

310

Grommet

705010718

$2.69

320

Tuflok Plastic Rivet

293150230

$1.47

330

Torx Screw M6 X 20

250000722

$1.68

340

Panel Nut M6 X 1.0

250100198

$2.11

370

Torx Screw M6 X 20

250000722

$1.68

380

Stainless Steel Flat Washer

234062670

$2.11

600

Front Facia

705009508

$74.99

605

Torx Screw M6 X 20

250000722

$1.68

610

Black, Dart

414644300

$0.98

615

Stainless Steel Flat Washer

234062670

$2.11

620

Panel Nut M6 X 1.0

250100198

$2.11

630

Grommet

517303756

$4.09

640

Amber, Reflector

520000271

$19.99

650

Torx Screw K50 X 16

250000720

$1.69

660

LH Reflector Support

705011806

$4.09

665

RH Reflector Support

705011814

$4.09

700

Mineral Satin Gray, Front Hood

705014316

$174.99

800

Radiator Front Grille

703501021

$51.99

810

Edge Clip

517302785

$0.88

820

Torx Screw K50 X 16

250000720

$1.69

830

Washer M5

250200025

$0.74

900

Logo | Except Model X3

705010885

$11.99

910

Screw M4 X 16

250000725

$3.49

1600

LH Front Radiator Deflector

705017559

$20.99

1700

RH Front Radiator Deflector

705017560

$20.99

1710

Torx Screw M6 X 20

250000722

$1.68

1720

Edge Clip

517302785

$0.88

1725

Panel Nut M6 X 1.0

250100198

$2.11

1800

LH Light Cover

705010628

$33.99

1900

RH Headlight Trim

705017566

$33.99

3400

Black, LH Front Lateral Panel Kit

715006594

$124.99

3410

Torx Screw M6 X 20

250000722

$1.68

3411

Torx Screw M6 X 20

250000712

$2.11

3412

Torx Truss Screw M6 X 25

250000807

$2.11

3415

Hex. Flange Elastic Nut M6

233261494

$1.58

3430

Panel Nut M6 X 1.0

250100198

$2.11

3440

Torx Truss M6 X 50

250000868

$2.11

3500

RH Front Lateral Panel Kit

715004074

$104.99

3510

Torx Screw M6 X 20

250000722

$1.68

3511

Torx Screw M6 X 20

250000712

$2.11

3515

Hex. Flange Elastic Nut M6

233261494

$1.58

3530

Panel Nut M6 X 1.0

250100198

$2.11

3540

Torx Truss M6 X 50

250000868

$2.11

3550

Hex. Flange Elastic Nut M6

233261494

$1.58

3560

Grommet

517303756

$4.09

3600

Lateral Cover

705017564

$43.99

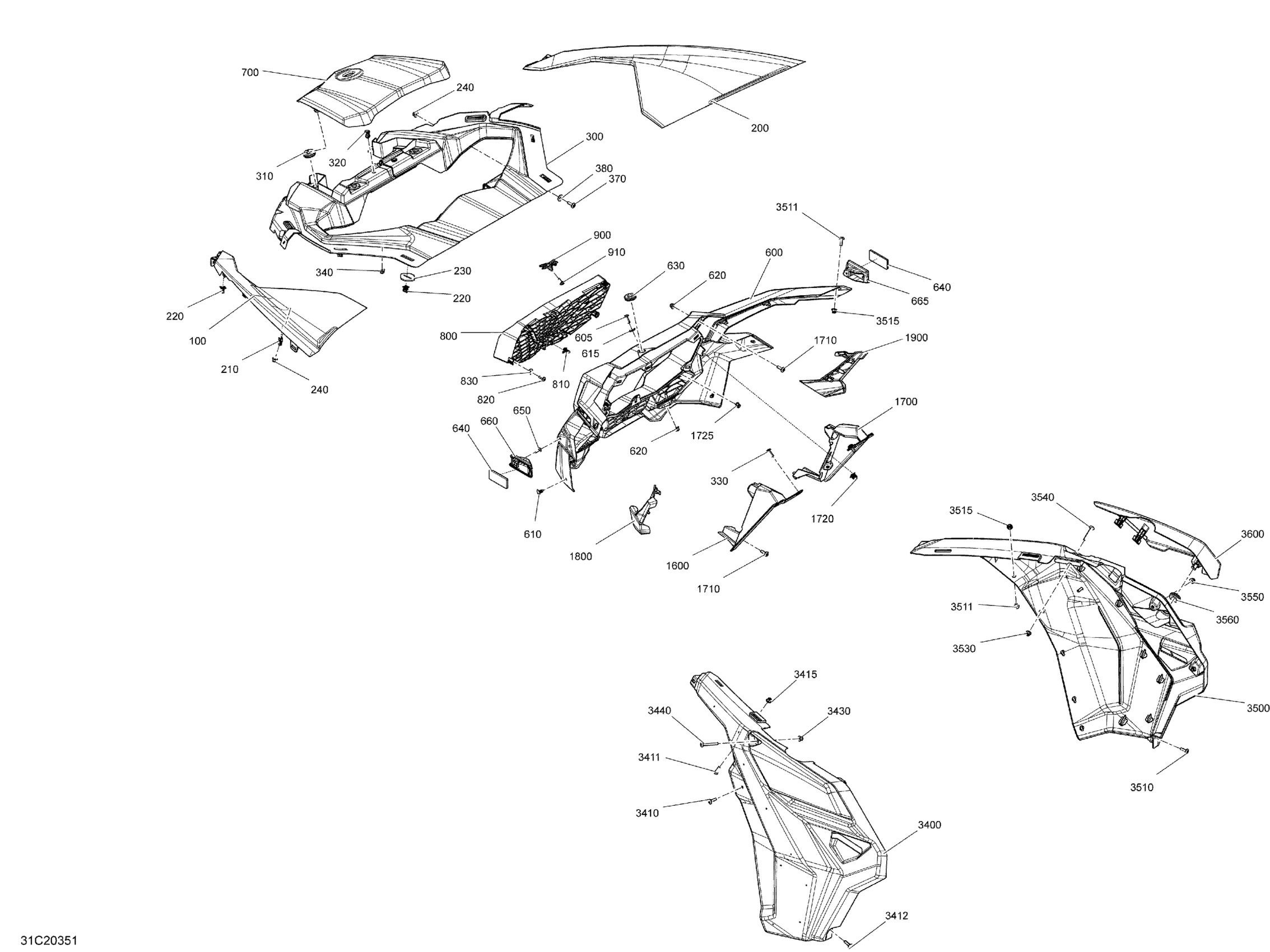

Can-Am Maverick MAX Turbo RR - XMR - 2020 Body - Front Section - XMR - Green Diagram

Mineral Satin Gray, LH Front Fender

Mineral Satin Gray, RH Front Fender

Clip

Edge Clip

Support Plate

Panel Nut M6 X 1.0

Manta Green, Front Panel

Grommet

Tuflok Plastic Rivet

Torx Screw M6 X 20

Panel Nut M6 X 1.0

Torx Screw M6 X 20

Stainless Steel Flat Washer

Front Facia

Torx Screw M6 X 20

Black, Dart

Stainless Steel Flat Washer

Panel Nut M6 X 1.0

Grommet

Amber, Reflector

Torx Screw K50 X 16

LH Reflector Support

RH Reflector Support

Mineral Satin Gray, Front Hood

Radiator Front Grille

Edge Clip

Torx Screw K50 X 16

Washer M5

Logo | Except Model X3

Screw M4 X 16

LH Front Radiator Deflector

RH Front Radiator Deflector

Torx Screw M6 X 20

Edge Clip

Panel Nut M6 X 1.0

LH Light Cover

RH Headlight Trim

Black, LH Front Lateral Panel Kit

Torx Screw M6 X 20

Torx Screw M6 X 20

Torx Truss Screw M6 X 25

Hex. Flange Elastic Nut M6

Panel Nut M6 X 1.0

Torx Truss M6 X 50

RH Front Lateral Panel Kit

Torx Screw M6 X 20

Torx Screw M6 X 20

Hex. Flange Elastic Nut M6

Panel Nut M6 X 1.0

Torx Truss M6 X 50

Hex. Flange Elastic Nut M6

Grommet

Lateral Cover
