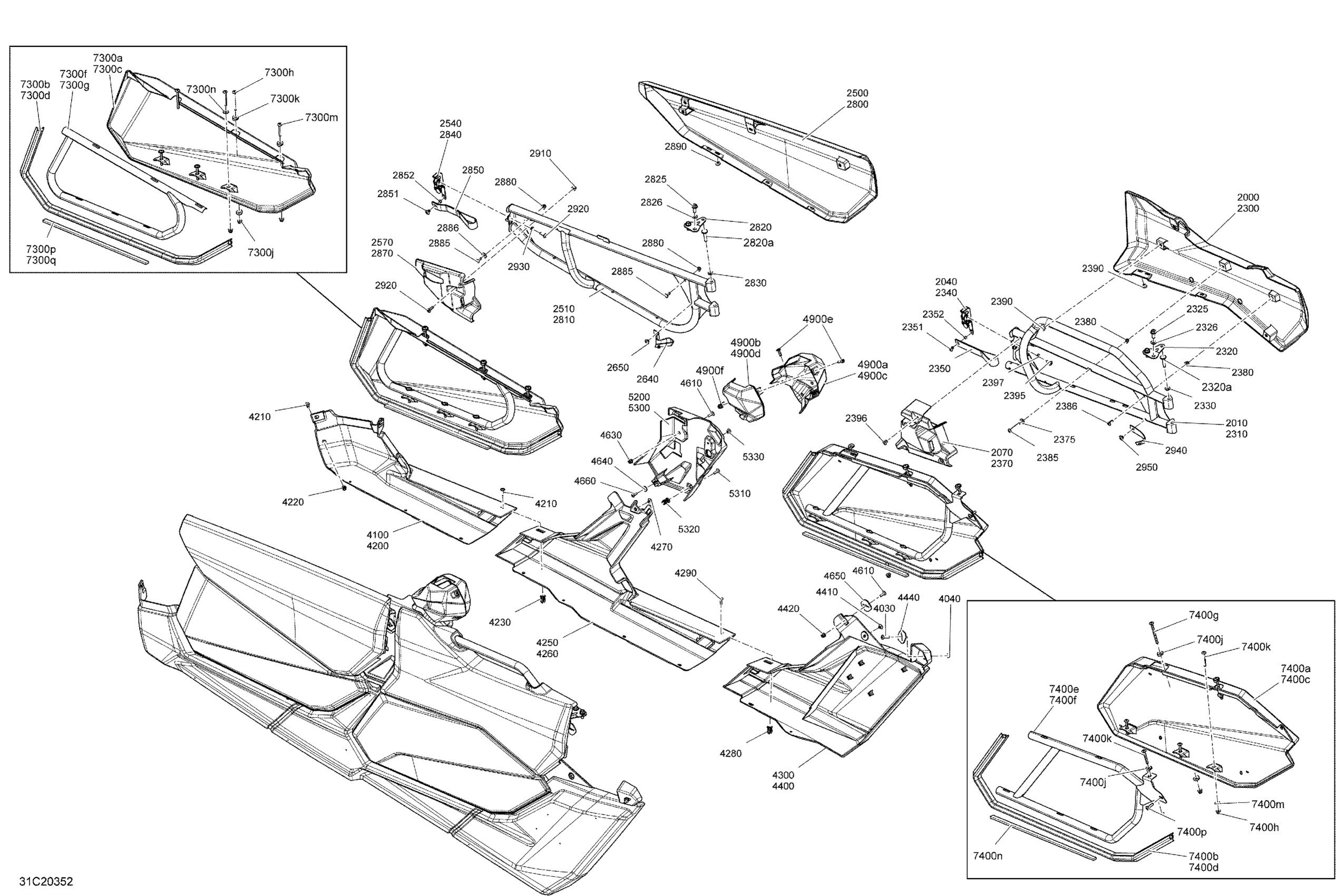

Can-Am Maverick MAX Turbo RR - XMR - 2020 Body - Door Section - XMR - Green Diagram

#

Description
Price

2000

Mineral Satin Gray, LH Rear Door Panel

705014358

$197.66

2010

Manta Green, LH Rear Door

705016026

$140.74

2040

LH Latch

705013095

$55.35

2070

LH Latch Cover

705013859

$36.89

2300

Mineral Satin Gray, RH Rear Door Panel

705014142

$197.66

2310

Manta Green, RH Rear Door

705016027

$140.74

2320

Door Support

705011187

$10.98

2320a

Weld Pin 8mm X 40mm

250000913

$1.61

2325

Hex Screw Washer Head M8 X 20

207582054

$2.61

2326

Flat Washer M8

234081430

$1.74

2330

Flat Washer 8 mm, Nylon

234081100

$1.00

2340

RH Latch

705013096

Unavailable

2350

Belt

293850135

$14.75

2351

Pop Rivet 3/16"

293150103

$0.54

2352

Bushing | DS 650 X

293900104

$5.26

2370

RH Latch Cover

705013860

$36.89

2375

Stainless Steel Flat Washer

234062670

$1.74

2380

Panel Nut M6 X 1.0

250100198

$1.73

2385

Torx Screw M6 X 45

250000748

$1.56

2386

Torx Truss Screw M6 X 16

250000721

$1.39

2390

Pop Rivet 3/16"

293150103

$0.54

2395

Torx Truss Screw M6 X 16

250000721

$1.39

2396

Pop Rivet 3/16"

293150103

$0.54

2397

Flat Washer

224061121

$0.44

2500

Mineral Satin Gray, LH Front Door Panel

705014083

$197.66

2510

Manta Green, LG Front Door

705016018

$232.28

2540

LH Latch

705013095

$55.35

2570

LH Latch Cover

705013535

$36.89

2640

Door Belt

293850129

$15.35

2650

Pop Rivet 3/16"

293150103

$0.54

2800

Mineral Satin Gray, RH Front Door Panel

705014084

$197.66

2810

Manta Green, RH Front Door

705016019

$232.28

2820

Door Support

705011187

$10.98

2820a

Weld Pin 8mm X 40mm

250000913

$1.61

2825

Hex Screw Washer Head M8 X 20

207582054

$2.61

2826

Flat Washer M8

234081430

$1.74

2830

Flat Washer 8 mm, Nylon

234081100

$1.00

2840

RH Latch

705013096

Unavailable

2850

Belt

293850135

$14.75

2851

Pop Rivet 3/16"

293150103

$0.54

2852

Bushing | DS 650 X

293900104

$5.26

2870

RH Latch Cover

705013536

$36.89

2880

Panel Nut M6 X 1.0

250100198

$1.73

2885

Torx Truss Screw M6 X 16

250000721

$1.39

2886

Stainless Steel Flat Washer

234062670

$1.74

2890

Pop Rivet 3/16"

293150103

$0.54

2910

Panel Nut M6 X 1.0

250100198

$1.73

2920

Torx Screw M6 X 20

250000722

$1.34

2930

Flat Washer

224061121

$0.44

2940

Door Belt

293850129

$15.35

2950

Pop Rivet 3/16"

293150103

$0.54

4030

Torx Truss Screw M6 X 25

250000807

$1.74

4040

Panel Nut M6 X 1.0

250100198

$1.73

4100

LH Central Lateral Panel

705009513

$64.58

4200

Deep Black, RH Central Body Panel

705017555

$69.20

4210

Torx Screw M6 X 20

250000722

$1.34

4220

Panel Nut M6 X 1.0

250100198

$1.73

4230

Insert

705016606

$2.31

4250

LH Rear Central Lateral Panel

705015741

$69.20

4260

RH Rear Central Lateral Panel

705015742

$69.20

4270

Pop Rivet 3/16”

293150108

$1.23

4280

Insert

705016606

$2.31

4290

Torx Screw M6 X 20

250000722

$1.34

4300

LH Rear Lateral Panel

705010676

$110.74

4400

Deep Black, RH Rear Lateral Panel

705010677

$110.74

4410

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

4420

Panel Nut M6 X 1.0

250100198

$1.73

4440

Support Plate

705003841

$0.91

4610

Torx Screw M6 X 20

250000722

$1.34

4630

Panel Nut M6 X 1.0

250100198

$1.73

4640

Stainless Steel Flat Washer

234062670

$1.74

4650

Support Plate

705003841

$0.91

4660

Torx Screw K50 X 16

250000720

$1.39

4900a

LH Central Cage Trim

705015489

$33.05

4900b

LH Central Cage Trim

705014860

$33.05

4900c

RH Central Cage Trim

705015490

$33.05

4900d

RH Central Cage Trim

705014862

$33.05

4900e

Torx Screw M6 X 20

250000722

$1.34

4900f

Panel Nut M6 X 1.0

250100198

$1.73

5200

Mineral Gray, LH Central Latch Trim

705014123

$139.20

5300

Mineral Gray, RH Central Latch Trim

705014124

$139.20

5310

Torx Screw M6 X 20

250000722

$1.34

5320

Insert

705016606

$2.31

5330

Pop Rivet 3/16"

293150103

$0.54

7300a

LH Door Panels

705010271

$105.35

7300b

Door Seal

705012018

$18.43

7300c

RH Door Panels

705010272

$104.58

7300d

Door Seal

705012018

$18.43

7300f

Black, LH Door Frame

705012750

$124.58

7300g

Black, RH Door Frame | Includes 7300f to 7300p

705012751

$124.58

7300h

Torx-Truss M/S M6 X 80

250000902

$2.60

7300j

Hex. Flange Elastic Nut M6

233261494

$1.26

7300k

Offset Washer

705202223

$4.98

7300m

Torx Truss Screw M6 X 50

250000749

$3.11

7300n

Stainless Steel Flat Washer

234062670

$1.74

7300p

Neoprene Seal (1PAC=3M)

219704364

$22.72

7300q

Neoprene Seal (1PAC=3M)

219704364

$22.72

7400a

LH Rear Door Panel Ass'y | Includes 7400a to 7400a2

705011468

$129.20

7400b

Door Seal

705012018

$18.43

7400c

RH Rear Door Panel Ass'y | Includes 7400b to 7400b2

705011469

$129.20

7400d

Door Seal

705012018

$18.43

7400e

Deep Black, Door Rigid Lower Rear Kit

715006209

Unavailable

7400f

Deep Black, Door Rigid Lower Rear Kit

715006209

Unavailable

7400g

Torx-Truss M/S M6 X 80

250000902

$2.60

7400h

Hex. Flange Elastic Nut M6

233261494

$1.26

7400j

Offset Washer

705202223

$4.98

7400k

Torx Truss Screw M6 X 50

250000749

$3.11

7400m

Stainless Steel Flat Washer

234062670

$1.74

7400n

Neoprene Seal (1PAC=3M)

219704364

$22.72

7400p

Torx Truss Screw M6 X 25

250000807

$1.74
