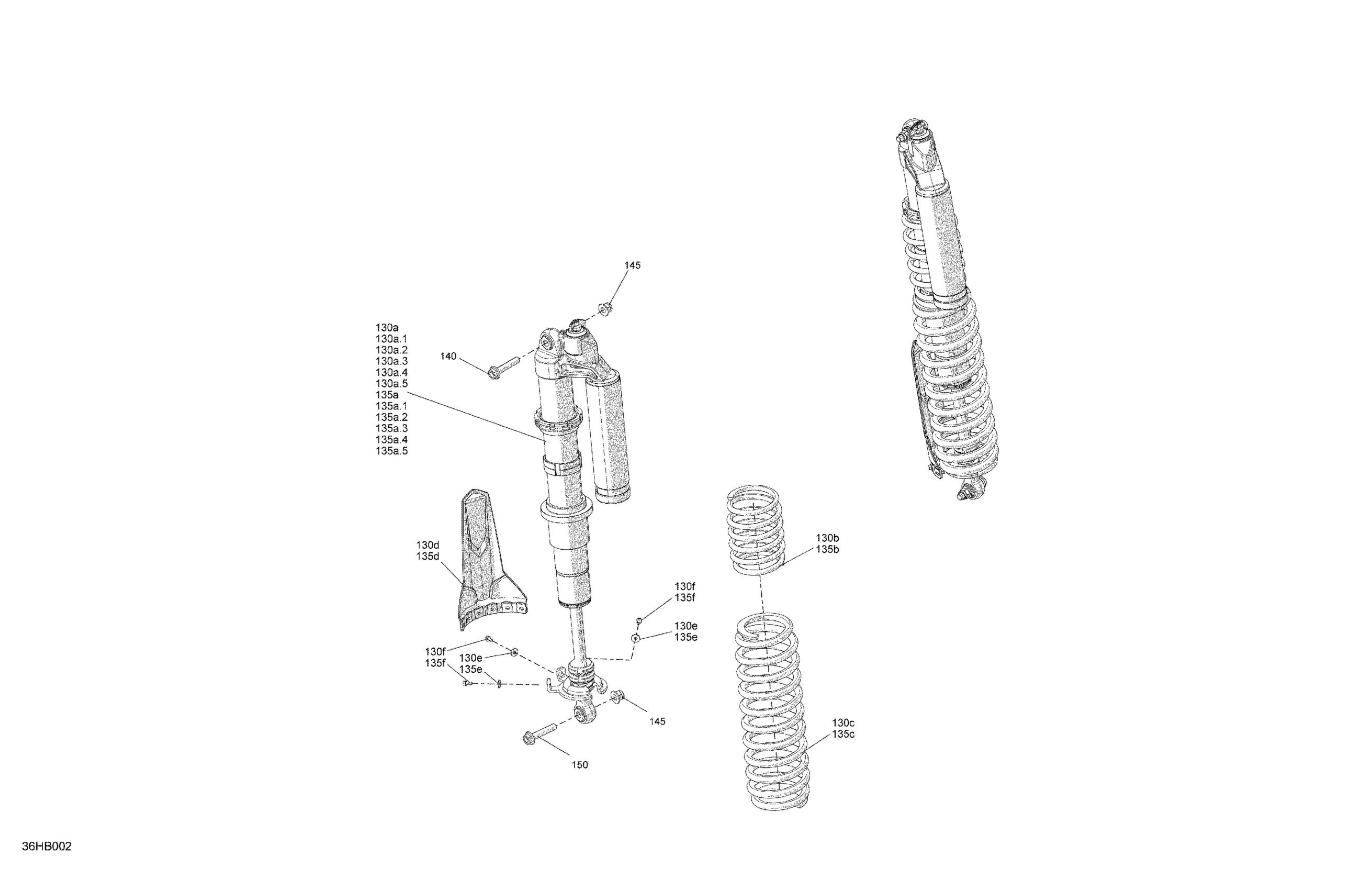

Can-Am Maverick MAX Turbo RR - DS - 2022 Suspension - Rear Shocks Diagram

#

Description
Price

130a

LH Rear Shock | Standard Package

706002666

$909.97

130a.1

Spherical Bearing

715900337

$80.74

130a.2

O-Ring Bushing

715900338

$10.98

130a.3

Circlip

715900480

$11.06

130a.4

Reducer

715900481

$27.66

130a.5

Ball Joint

706004078

$45.12

130b

Red Rear Spring | White

706003283

$96.89

130b

Northern Lichen, Compression Spring | Model Macchiato Satin

706004144

$96.89

130b

Gulfstream Blue, Compression Spring

706004176

$96.89

130c

Can-Am Red, Rear Spring | White

706003284

$147.66

130c

Northern Lichen, Compression Spring | Model Macchiato Satin

706004143

$147.66

130c

Gulfstream Blue, Compression Spring

706004177

$147.66

130d

Protector

706202215

$9.23

130e

Washer M5

250200025

$0.61

130f

Hex Flange Screw M5 X 11

210251150

$1.74

135a

RH Rear Shock | Standard Package

706002667

$923.05

135a.1

Spherical Bearing

715900337

$80.74

135a.2

O-Ring Bushing

715900338

$10.98

135a.3

Circlip

715900480

$11.06

135a.4

Reducer

715900481

$27.66

135a.5

Ball Joint

706004078

$45.12

135b

Red Rear Spring | White

706003283

$96.89

135b

Northern Lichen, Compression Spring | Model Macchiato Satin

706004144

$96.89

135b

Gulfstream Blue, Compression Spring

706004176

$96.89

135c

Can-Am Red, Rear Spring | White

706003284

$147.66

135c

Northern Lichen, Compression Spring | Model Macchiato Satin

706004143

$147.66

135c

Gulfstream Blue, Compression Spring

706004177

$147.66

135d

Protector

706202215

$9.23

135e

Washer M5

250200025

$0.61

135f

Hex Flange Screw M5 X 11

210251150

$1.74

140

Flange Screw M12 X 60

250000857

$6.08

145

Elastic Flange Nut M12

233221466

$2.15

150

Flange Screw M12 X 60

250000857

$6.08
