Partiron

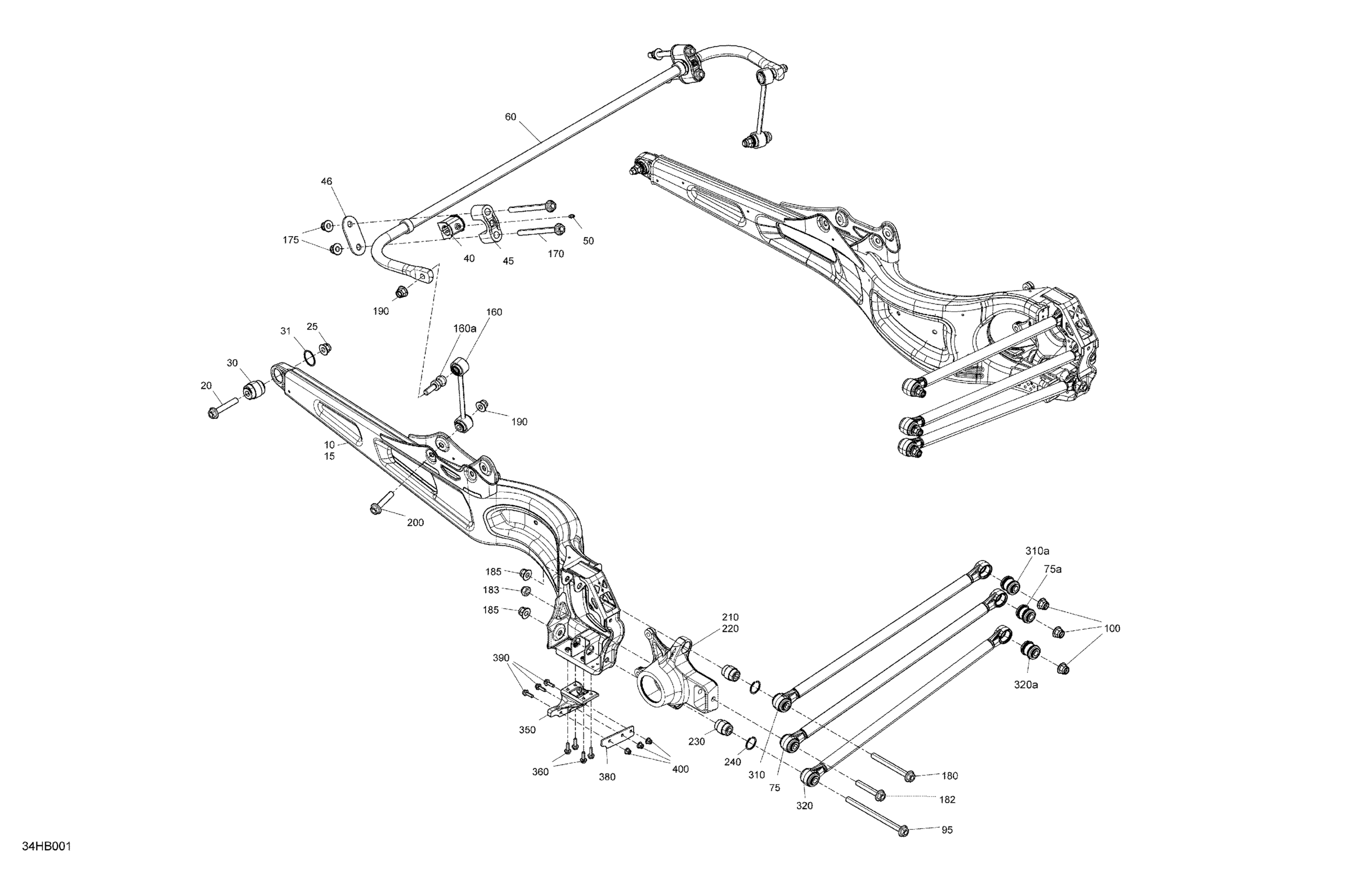

Can-Am Maverick MAX Turbo RR - DS - 2022 Suspension - Rear Components Diagram

#

Description
Price

10

Macchiato Satin, LH Rear suspension Arm | Macchiato Satin Model

706004595

$360.49

10

Can-Am Red, LH Rear Suspension Arm

706004599

$360.49

10

Gulfstream Blue, LH Rear Suspension Arm | GulfStream Blue Model

706004601

$360.49

15

Macchiato Satin, RH Rear suspension Arm | Macchiato Satin Model

706004596

$360.49

15

Can-Am Red, RH Rear Suspension Arm

706004600

$360.49

15

Gulfstream Blue, RH Rear Suspension Arm | GulfStream Blue Model

706004602

$360.49

20

Hex. Flange Screw M12 X 70

250000858

$3.80

25

Elastic Flange Nut M12

233221466

$2.89

30

Radial Joint

706001373

$52.99

31

Retaining Ring

293370093

$7.59

40

Stabilizer Bar Bushing

706004264

$3.61

45

Clamp

706002303

$17.05

46

Support Plate

706002357

$5.09

50

Grease Fitting

408200700

$3.49

60

Stabilizer Bar Ass'y

706002100

$98.49

75

Central Control Link | Includes 75 to 75a

706002099

$119.99

75a

Radial Joint

706002135

$43.49

95

Screw Flange M12 X 175

250000862

$6.67

100

Elastic Flange Nut M12

233221466

$2.89

160

Rear Stabilizer Bar Link | Includes 160 to 160a

706003752

$93.99

160a

Radial Joint

706002135

$43.49

170

Flange Screw M12 X 145

250000861

$6.67

175

Elastic Flange Nut M12

233221466

$2.89

180

Screw Flange M12 X 115

250000860

$6.67

182

Hex. Flange Screw DIN.6921 M12X1.75X80

250000974

$4.76

183

Elastic Flange Nut M12

233221466

$2.89

185

Elastic Flange Nut M12

233221466

$2.89

190

Elastic Flange Nut M12

233221466

$2.89

200

Flange Screw M12 X 60

250000857

$7.41

210

LH Rear Knuckle

706005410

$164.49

220

RH Rear Knuckle

706005411

$164.49

230

Radial Joint

706002317

$43.49

240

Retaining Ring

293370118

$7.59

310

Upper Control Link | Includes 310 to 310a

706002136

$134.99

310a

Radial Joint

706002135

$43.49

320

Lower Link Rod Ass'y | Includes 320 to 320a

706004619

$134.99

320a

Radial Joint

706002135

$43.49

350

Deflector

706004265

$15.49

360

Hex. Flange Screw M6 X 20

207662044

$2.00

380

Wear Plate

706002851

$11.49

390

Hex. Flange Screw M6 X 20

207662044

$2.00

400

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
