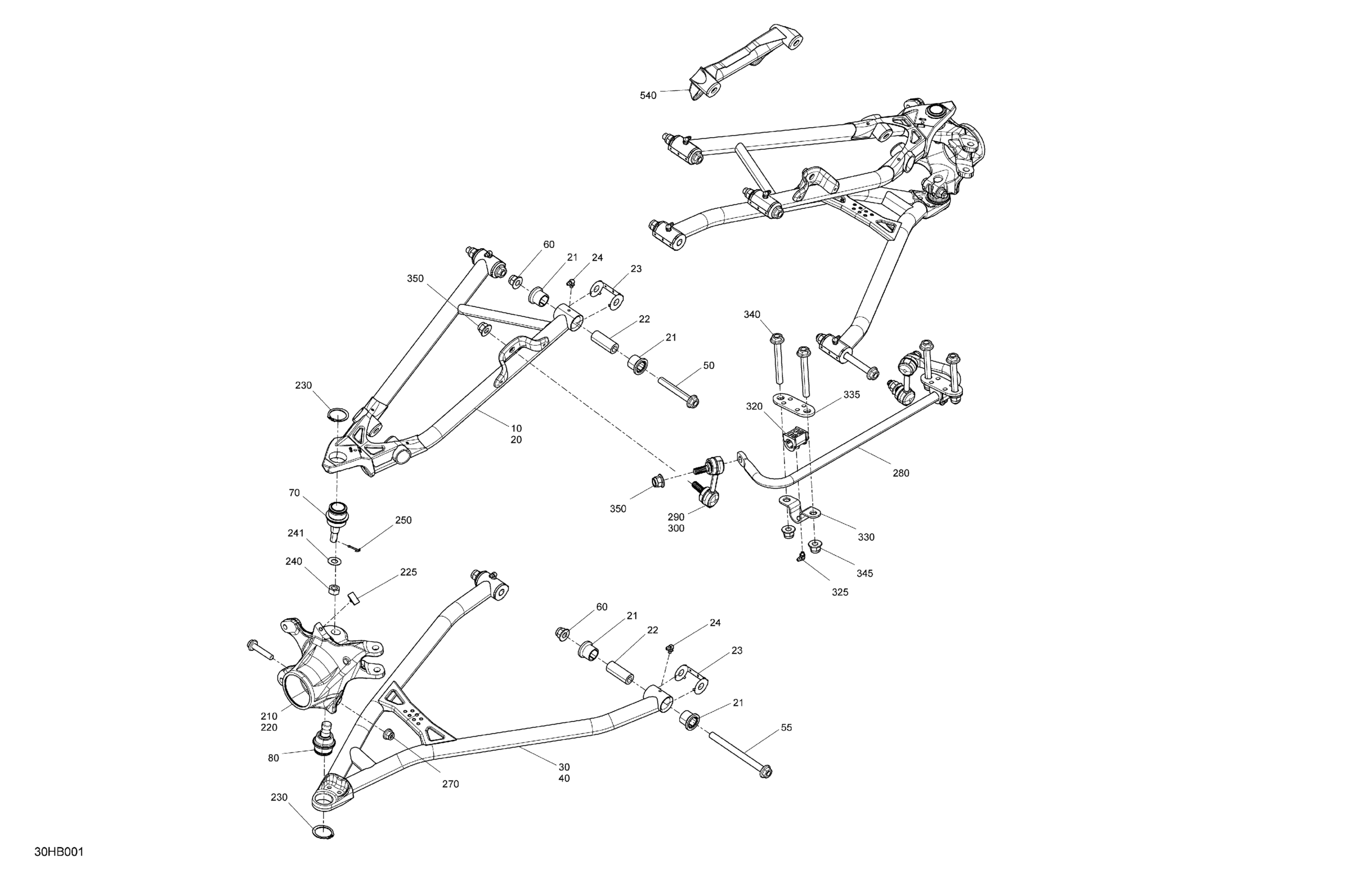

Can-Am Maverick MAX Turbo RR - DS - 2022 Suspension - Front Components Diagram

#

Description
Price

10

Deep Black, LH Upper Suspension Arm

703501047

$201.49

10

Gulfstream Blue, LH Upper Suspension Arm | Package XRC

703501120

$201.49

10

Can-Am Red, LH Upper Suspension Arm

703501123

$201.49

20

Deep Black, RH Upper Suspension Arm

703501050

$201.49

20

Gulfstream Blue, RH Upper Suspension Arm | GulfStream Blue Model

703501121

$201.49

20

Can-Am Red, RH Upper Suspension Arm

703501122

$201.49

21

Suspension Arm Bushing

706204409

$9.10

22

Interior Bushing

706202257

$9.79

23

Wear Plate

706202300

$2.29

24

Grease Fitting 90°

293550056

$1.15

30

Deep Black, LH Front Suspension Arm Ass'y With Balljoint This part replaces 706202919.

715010612

$269.99

40

Deep Black, RH Front Suspension Arm Ass'y With Balljoint This part replaces 706202920.

715010611

$269.99

50

Flange Screw M12 X 85

250000859

$4.76

55

Flange Screw M12 X 145

250000861

$6.67

60

Elastic Flange Nut M12

233221466

$2.89

70

Ball Joint

706203084

$35.99

80

Ball Joint

706202045

$35.99

210

LH Front Knuckle

706204785

$201.49

220

RH Front Knuckle

706204786

$148.49

225

Wear Plate

706202502

$2.29

230

Circlip

293370035

$2.64

240

Nut M12

250100099

$2.09

241

Hardened Washer

706200281

$2.85

250

Cotter Pin

211400017

$0.33

270

Hex. Flange Elastic Nut M10

233201436

$2.11

280

Stabilizer Bar Ass'y

706203953

$98.49

290

LH Stabilizer Bar Link

706203611

$72.99

300

RH Stabilizer Bar Link

706203612

$72.99

320

Stabilizer Bar Bushing

706204564

$3.61

325

Grease Fitting 90°

293550056

$1.15

330

Clamp

706202460

$6.89

335

Support Plate

706202551

$5.09

340

Hex. Flange Screw M12 X 95

250000876

$6.77

345

Elastic Flange Nut M12

233221466

$2.89

350

Elastic Flange Nut M12

233221466

$2.89

540

Black, Link

706202708

$55.99
