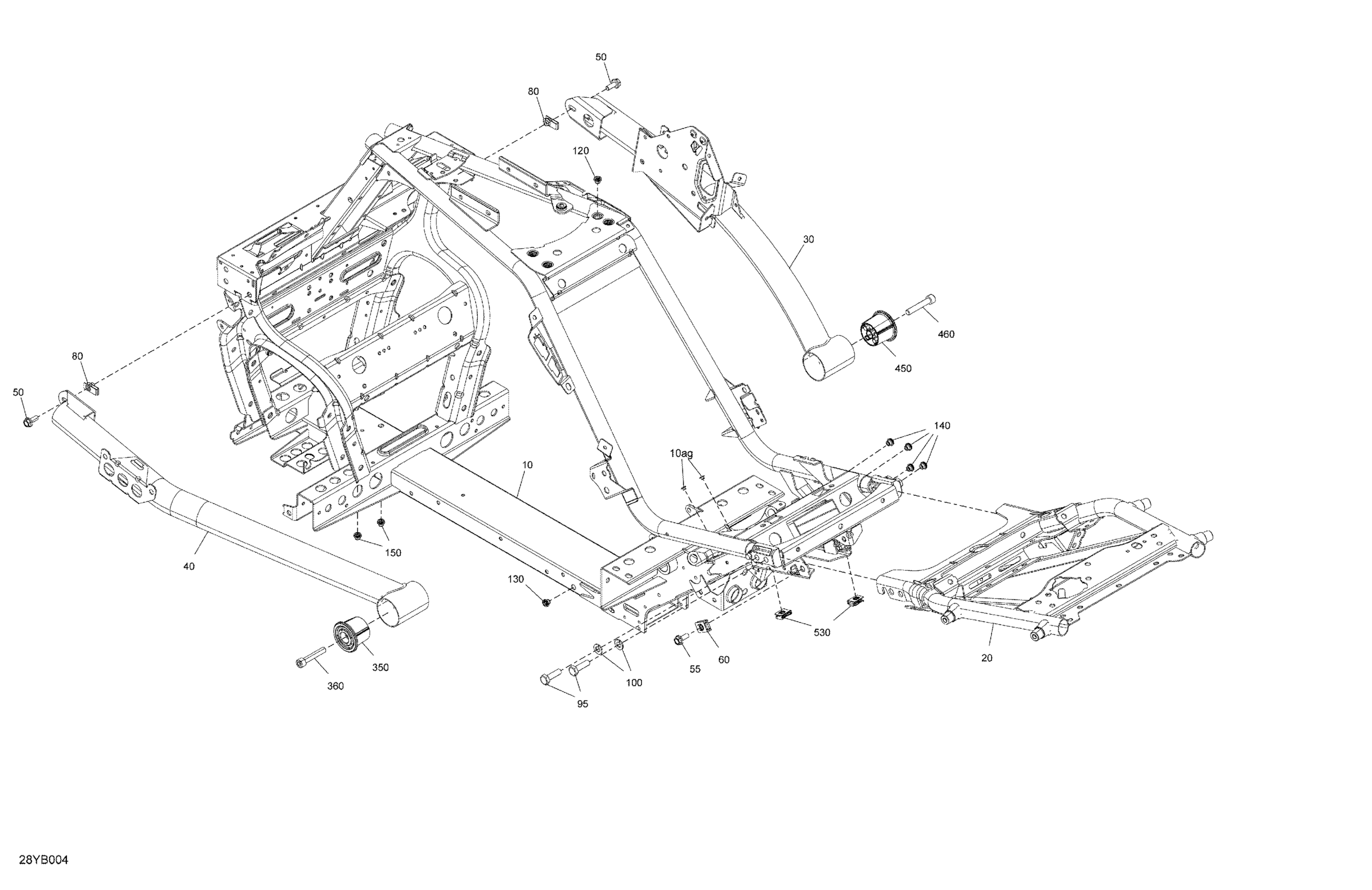

Can-Am F3 S - Special Series - Monolith Black Satin, Australia, 2022 Frame - System Diagram

Chassis | Included 10 to 10ag

705210350

Unavailable

Pop Rivet 3/16"

390402200

$0.26

Frame Extension Kit

219800410

$560.00

Gulfstream Blue, RH Upper Lateral Support

705209287

$210.00

Gulfstream Blue, LH Upper Lateral Support

705209285

$210.00

Hex Screw Washer Head M8 X 20

207582054

$2.61

Hex Screw Washer Head M8 X 20

207582054

$2.61

Panel Nut M8 X 1.25

250100069

$4.00

Panel Nut M8 X 1.25

250100118

$1.63

Hex. Screw M10 x 35 (Scotch Grip)

207303544

$1.65

Lock Washer Helical M10

234101411

$0.22

Insert Half Hex Body M6 x 1.0

250100199

$2.54

Insert Half Hex Body M6 x 1.0

250100199

$2.54

Insert Half Hex Body M6 x 1.0

250100199

$2.54

Insert Half Hex Body M6 x 1.0

250100199

$2.54

Pivot Cap

705010202

$23.00

Socket Head Screw

205505560

$7.00

Pivot Cap

705010202

$23.00

Socket Head Screw

205505560

$7.00

Panel Nut M6 X 1.0

250100208

$1.07
