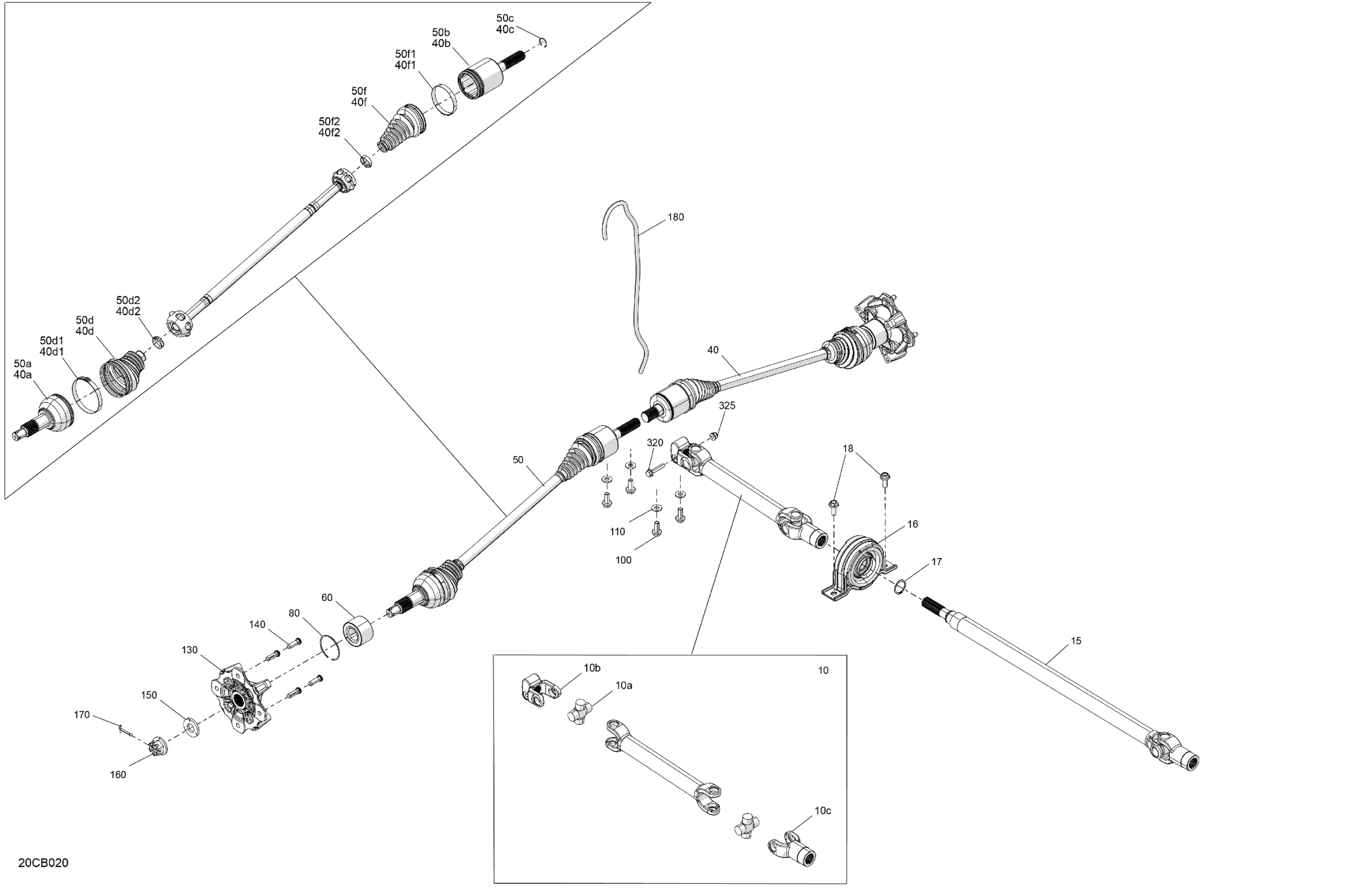

Can-Am Defender MAX HD7 - BASE - 2022 Drive - Front - Common Parts Diagram

#

Description
Price

10

Axle Ass'y

705402125

$243.49

10a

J-Joint Cross Kit

715900402

$89.99

10b

Fixed Yoke

715900400

$59.49

10c

Yoke

715900401

$35.99

15

Drive Axle Ass'y | Includes 15 to 15b

705403288

$238.49

16

Ball Bearing Ass'y

705403522

$47.49

17

Snap Ring

293370098

$3.17

18

Hex. Flange Screw M10 X 20

207502046

$2.11

40

RH Front CV Joint | Includes 40 to 40f2

705402750

$243.99

40a

Exterior CV Joint

715900621

$259.49

40b

RH Plunging Joint

715900688

$259.49

40c

Circlip Joint | Not shown

705401349

$6.50

40d

Boot Kit, Wheel Side

705401345

$42.49

40d1

Oetiker Clamp

715900282

$5.29

40d2

Oetiker Clamp, Small

715900283

$5.29

40f

Boot Kit, Différential Side

705401355

$42.49

40f1

Oetiker Clamp, Small

715900261

$5.29

40f2

Oetiker Clamp, Large

715900262

$10.33

50

LH Front CV Joint | Includes 50 to 50f2

705402749

$243.99

50a

Exterior CV Joint

715900621

$259.49

50b

LH Plunging Joint

715900689

$259.49

50c

Circlip Joint | Not shown

705401349

$6.50

50d

Boot Kit, Wheel Side

705401345

$42.49

50d1

Oetiker Clamp

715900282

$5.29

50d2

Oetiker Clamp, Small

715900283

$5.29

50f

Boot Kit, Différential Side

705401355

$42.49

50f1

Oetiker Clamp, Small

715900261

$5.29

50f2

Oetiker Clamp, Large

715900262

$10.33

60

Ball Bearing

293350150

$52.99

80

Circlip

293370019

$4.68

100

Hex. Flange Screw M10 X 25

207502546

$2.11

110

Conical Spring Washer 10 mm

234201474

$1.69

130

Wheel Hub

705502338

$116.49

140

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

150

Conical Spring Washer M20

250200170

$14.74

160

Castle Nut M20

250100193

$8.05

170

Cotter Pin

250400084

$2.29

180

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

320

Hex. Flange Screw M8 X 42

250001050

$1.16

325

Hex. Elastic Flange Nut M8

233281416

$1.48
