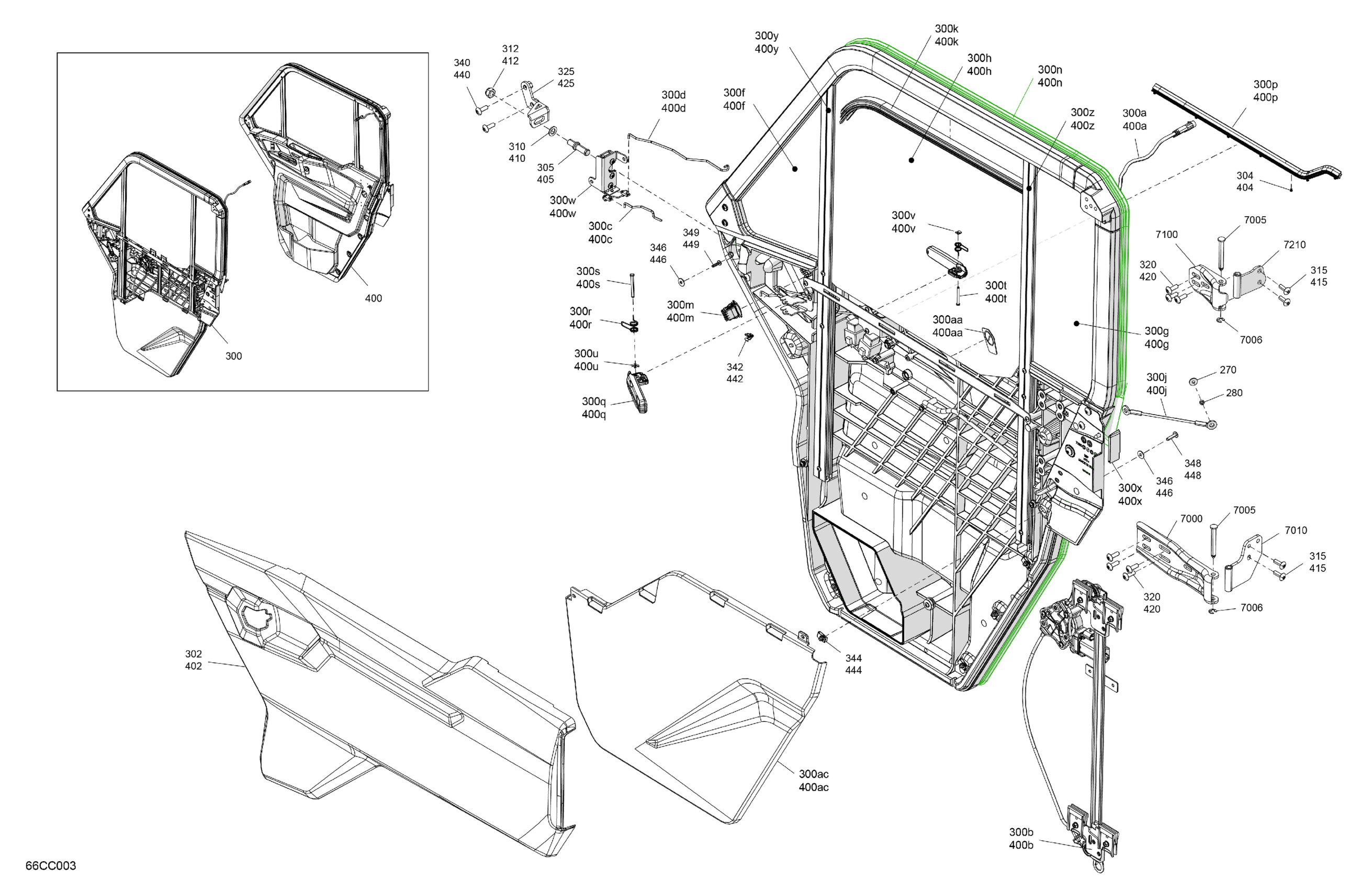

Can-Am Defender MAX HD10 - Lone Star Edition CAB - 2023 Enclosure Cab - Front Doors Diagram

#

Description
Price

270

Washer M6

250200029

$2.50

280

Bushing

708300737

$5.99

300

LH Front Rigid Door Ass'y | Includes 300 to 300ac

705801088

$2,909.99

300a

LH Door Wiring Harness

705800881

$239.99

300b

LH Front Window Actuator

705801143

$829.99

300c

Guide Pin

705801358

$44.99

300d

Guide Pin

705801452

$44.99

300f

Front Door Window

705800863

$369.99

300g

Rear Door Window

705800864

$369.99

300h

Sliding Cab Window

705800865

$489.99

300j

Retaining Cable

705801437

$9.99

300k

Gasket

705801312

$109.99

300m

Window Switch

710004979

$35.99

300n

Gasket

705800866

$239.99

300p

Gasket

705800963

$34.99

300q

Door Handle

705017152

$15.49

300r

Handle Spring

705013062

$14.99

300s

Handle Axle

705207440

$14.49

300t

Guide Pin

705801393

$44.99

300u

External Retaining Ring

705601875

$4.09

300v

External Retaining Ring

705602261

Unavailable

300w

LH Latch

705800872

$409.99

300x

Trim

705800992

$99.99

300y

Front Window Guide Extrusion

705800722

$224.99

300z

Rear Window Guide Extrusion

705800723

$224.99

300aa

LH Door Pictogram Label

704909996

Unavailable

300ac

LH Lower Door Panel

705800716

$239.99

302

Night Black, LH Upper Door Panel

705801425

$244.99

304

Torx Screw ST 2.9 X 6.5 | Not Shown

250001274

$0.93

305

Rod Latch

705800850

$29.99

310

Conical Spring Washer M12

250200005

$3.27

312

Elastic Stop Nut M12

232521416

$1.69

315

Torx Truss M8 X 25

250000874

$2.11

320

Torx Truss M8 X 25

250000874

$2.11

325

LH Front Striker Support

705801086

$44.99

340

Torx Truss M8 X 25

250000874

$2.11

342

Clip

517306478

$1.09

344

Panel Nut M6 X 1.0

250100198

$2.11

346

Stainless Steel Flat Washer

234062670

$2.11

348

Torx Truss Screw M6 X 25

250000807

$2.11

349

Torx Screw Truss Head K50X20 T20

250000760

$2.11

400

RH Front Rigid Door Ass'y | Includes 400 to 400ac

705801089

$2,739.99

400a

RH Door Wiring Harness

705800882

$254.99

400b

RH Front Window Actuator

705801144

$829.99

400c

Guide Pin

705801358

$44.99

400d

Guide Pin

705801453

$44.99

400f

Front Door Window

705801375

$369.99

400g

Rear Door Window

705801376

$369.99

400h

Sliding Cab Window

705801377

$459.99

400j

Retaining Cable

705801437

$9.99

400k

Gasket

705801312

$109.99

400m

Window Switch

710004979

$35.99

400n

Gasket

705801443

$239.99

400p

Gasket

705800963

$34.99

400q

Door Handle

705017152

$15.49

400r

Handle Spring

705013062

$14.99

400s

Handle Axle

705207440

$14.49

400t

Guide Pin

705801393

$44.99

400u

External Retaining Ring

705601875

$4.09

400v

External Retaining Ring

705602261

Unavailable

400w

RH Latch

705800873

$409.99

400x

Trim

705800993

$99.99

400y

Front Window Guide Extrusion

705800722

$224.99

400z

Rear Window Guide Extrusion

705800723

$224.99

400aa

RH Door Pictogram Label

704909998

Unavailable

400ac

RH Lower Door Panel

705800717

$239.99

402

Night Black, RH Upper Door Panel

705801426

$244.99

404

Torx Screw ST 2.9 X 6.5 | Not Shown

250001274

$0.93

405

Rod Latch

705800850

$29.99

410

Conical Spring Washer M12

250200005

$3.27

412

Elastic Stop Nut M12

232521416

$1.69

415

Torx Truss M8 X 25

250000874

$2.11

420

Torx Truss M8 X 25

250000874

$2.11

425

RH Front Striker Support

705801097

$44.99

440

Torx Truss M8 X 25

250000874

$2.11

442

Clip

517306478

$1.09

444

Panel Nut M6 X 1.0

250100198

$2.11

446

Stainless Steel Flat Washer

234062670

$2.11

448

Torx Truss Screw M6 X 25

250000807

$2.11

449

Torx Screw Truss Head K50X20 T20

250000760

$2.11

7000

Door Hinge

705800751

$39.99

7005

Hinge Pin

705800781

$0.58

7006

Retaining Ring

293370125

$2.59

7010

Lower Hinge

705801025

$40.99

7100

Upper Door Hinge

705800752

$43.99

7210

Upper Door Hinge

705800756

$47.99
