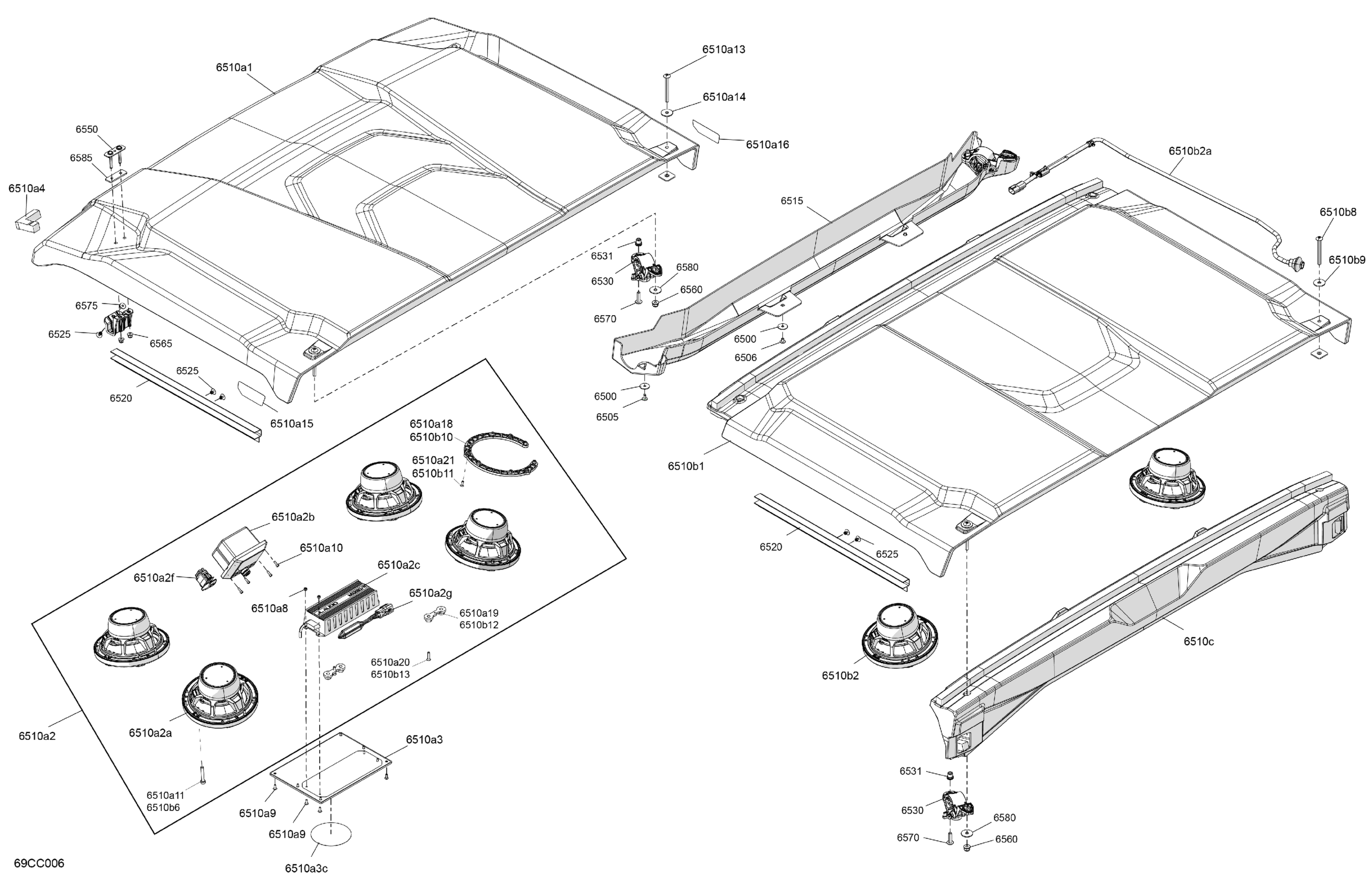

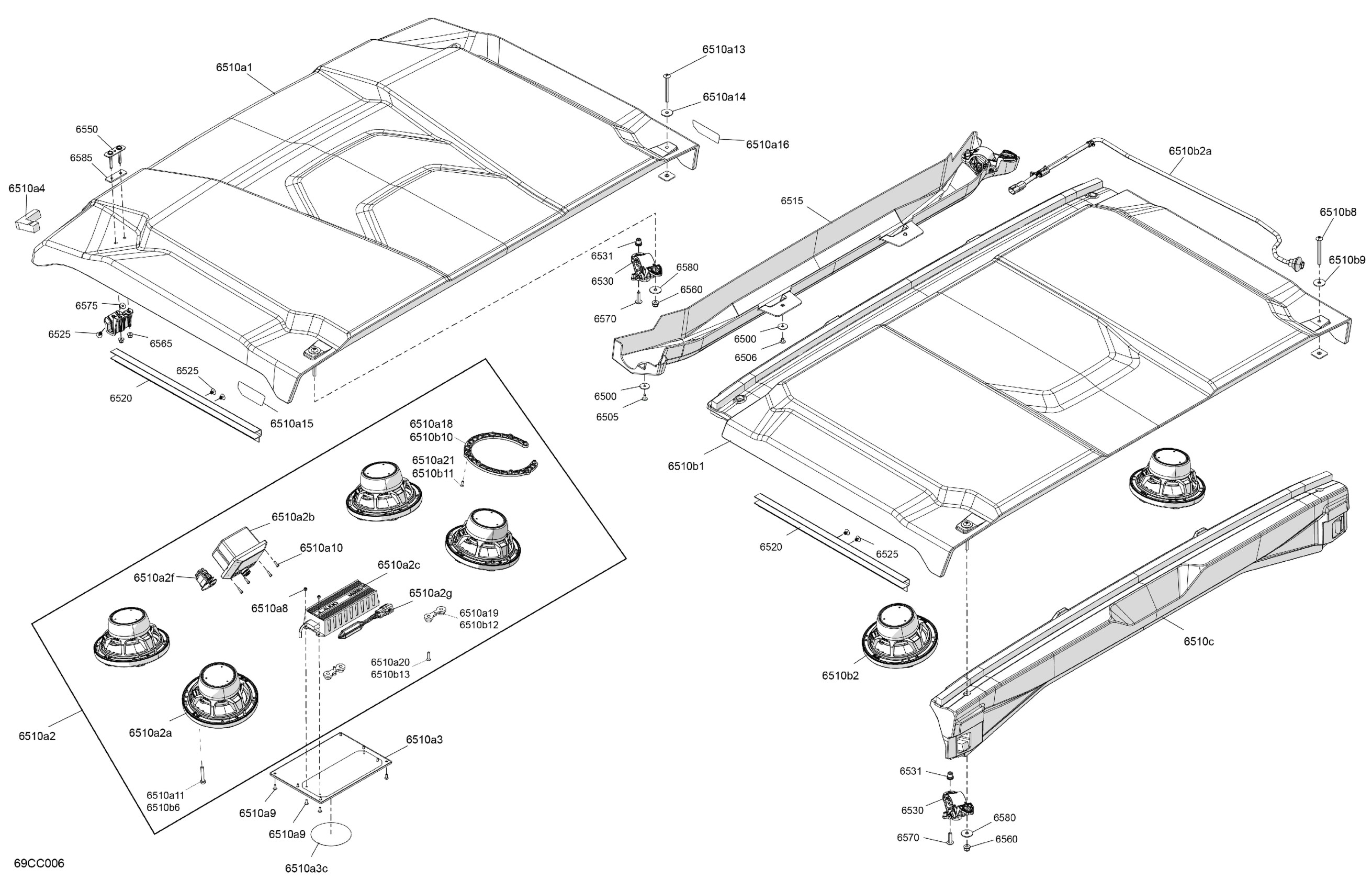

Can-Am Defender MAX HD10 - Lone Star Edition CAB - 2023 Body - Roof Diagram

#

Description
Price

750

Torx Screw Truss Head K50X20 T20

250000760

$2.11

751

Support Plate

705003841

$0.99

752

Roof Anchor

705800131

$9.29

6500

Washer M6

250200029

$2.50

6505

Torx Screw M6 X 16

250000755

$0.87

6506

Torx Screw M6 X 16

250000755

$0.87

6510a1

Front Speaker Enclosure

710006425

Unavailable

6510a2

Bluetooth Audio System Sub Ass'y

710007789

Unavailable

6510a2a

Loudspeaker Ass'y

710007790

$339.99

6510a2b

Bluetooth Audio System

710007792

$849.99

6510a2c

Audio Amplifier

710007793

$677.99

6510a2f

Switch

710006935

$41.49

6510a2g

LED Control Module

710007982

$158.99

6510a3

Over Amplifier Support Sub Ass'y | Includes 6510a3 to 6510a3c

710007794

$95.49

6510a3c

Decal Cover JL Audio

710008235

$85.99

6510a4

Gasket B

708201094

Unavailable

6510a8

Elastic Stop Nut M4

232541484

$0.74

6510a9

Torx Screw M4 X 16

250000750

$1.68

6510a10

Socket Head Screw M4 X 12

205041254

$2.11

6510a11

Socket Head Cap Screw M4 X3 0 S.Grip

229000423

Unavailable

6510a13

Torx Screw M8 X 80

250001190

$1.90

6510a14

Stainless Steel Flat Washer

234082670

$2.11

6510a15

JL Audio Decal

710008236

$92.99

6510a16

JL Audio Decal

710008258

$85.99

6510a17

Enclosure Cover | Not Shown

710008289

Unavailable

6510a18

Retaining Ring

710008589

Unavailable

6510a19

Threaded Latch Insert M6

710007806

Unavailable

6510a20

Black, Flat Head Screw M3-0.5X14

229000427

Unavailable

6510a21

M4-0.7X14 Flat Head Socket DIN 7991

229000424

Unavailable

6510b1

Rear Molded Speaker Enclosure

710007192

Unavailable

6510b2

Bluetooth Audio System Sub Ass'y

710007795

Unavailable

6510b2a

Loudspeaker Ass'y

710007790

$339.99

6510b6

Socket Head Cap Screw M4 X3 0 S.Grip

229000423

Unavailable

6510b8

Torx Screw M8 X 80

250001190

$1.90

6510b9

Stainless Steel Flat Washer

234082670

$2.11

6510b10

Retaining Ring

710008589

Unavailable

6510b11

M4-0.7X14 Flat Head Socket DIN 7991

229000424

Unavailable

6510b12

Threaded Latch Insert M6

710007806

Unavailable

6510b13

Black, Flat Head Screw M3-0.5X14

229000427

Unavailable

6510c

Enclosure Ass'y

710007918

Unavailable

6510d1

REMOTE CONTROL - Call your local BRP dealership | Not Shown

710007919

Unavailable

6510d2

English User Guide | Not Shown

219002153

Unavailable

6515

Roof Liner

705800794

$361.99

6520

Wiring Guide

705800793

$13.49

6525

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

6530

A Mounting Clamp

705016186

$23.99

6531

Insert Half Hex Body M8 x 1.25

293450307

$2.69

6550

D Mounting Clamp

705016800

$25.99

6560

Elastic Flange Nut M8

233281464

$1.01

6565

Hex. Flange Elastic Nut M6

233261466

$2.00

6570

Hex Torx Truss M8 X30

250000745

$3.17

6575

Washer M5

250200025

$0.74

6580

Stainless Steel Flat Washer

234082670

$2.11

6585

Cut Weather Strip

705800966

$7.34
