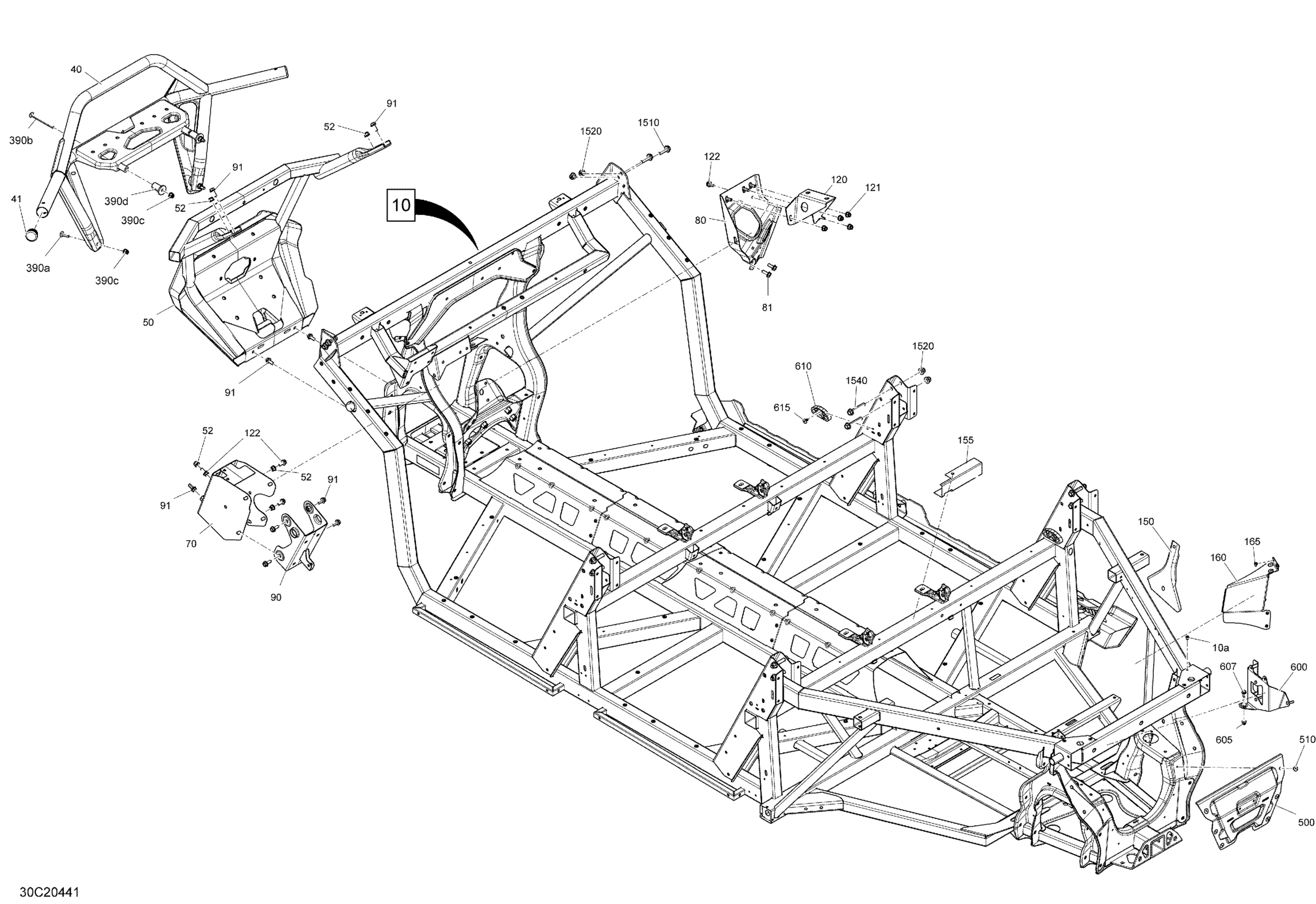

Can-Am Defender MAX HD10 - CAB - 2020 Frame Diagram

#

Description
Price

10

Deep Black, Chassis Kit

715009071

$2,589.99

10a

Pop Rivet 3/16"

390402200

$0.30

40

Deep Black, Front Bumper

715005754

$350.72

41

Cap

705202455

$4.27

50

Deep Black, Front Bumper

705207588

$493.25

52

Hex. Flange Elastic Nut M8

233281414

$1.31

70

Module Support

705208747

$50.72

80

Power Steering Support

705208741

$63.40

81

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

90

Steering Column Support | Includes 90 to 90d

705209190

$33.55

91

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

120

Support

705208742

$27.58

121

Hex. Flange Elastic Nut M8

233281414

$1.31

122

Hex. Flange Screw M8 X 20

207682044

$1.06

150

Heat Shield

705014849

$2.59

155

Heat Shield

705015496

$2.59

160

Heat Shield

707002717

$46.24

165

Pop Rivet 3/16”

293150092

$2.82

390a

Torx Screw M8 X 30

250000886

$2.00

390b

Torx Truss M/S M8 x X 100

250001106

$6.34

390c

Hex. Flange Elastic Nut M8

233281414

$1.31

390d

Spacer

705207754

$11.72

500

Rear Chassis Reinforcement

705207753

$30.57

510

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

600

Voltage Regulator Support | Base

710006644

$15.64

605

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

607

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

610

Spacer

705208203

$17.13

615

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

1510

Hex. Flange Screw M10 X 35

250000855

$1.67

1520

Hex. Flange Elastic Nut M10

233201436

$2.00

1540

Hex. Flange Screw M10 X 6

207606046

$3.88
