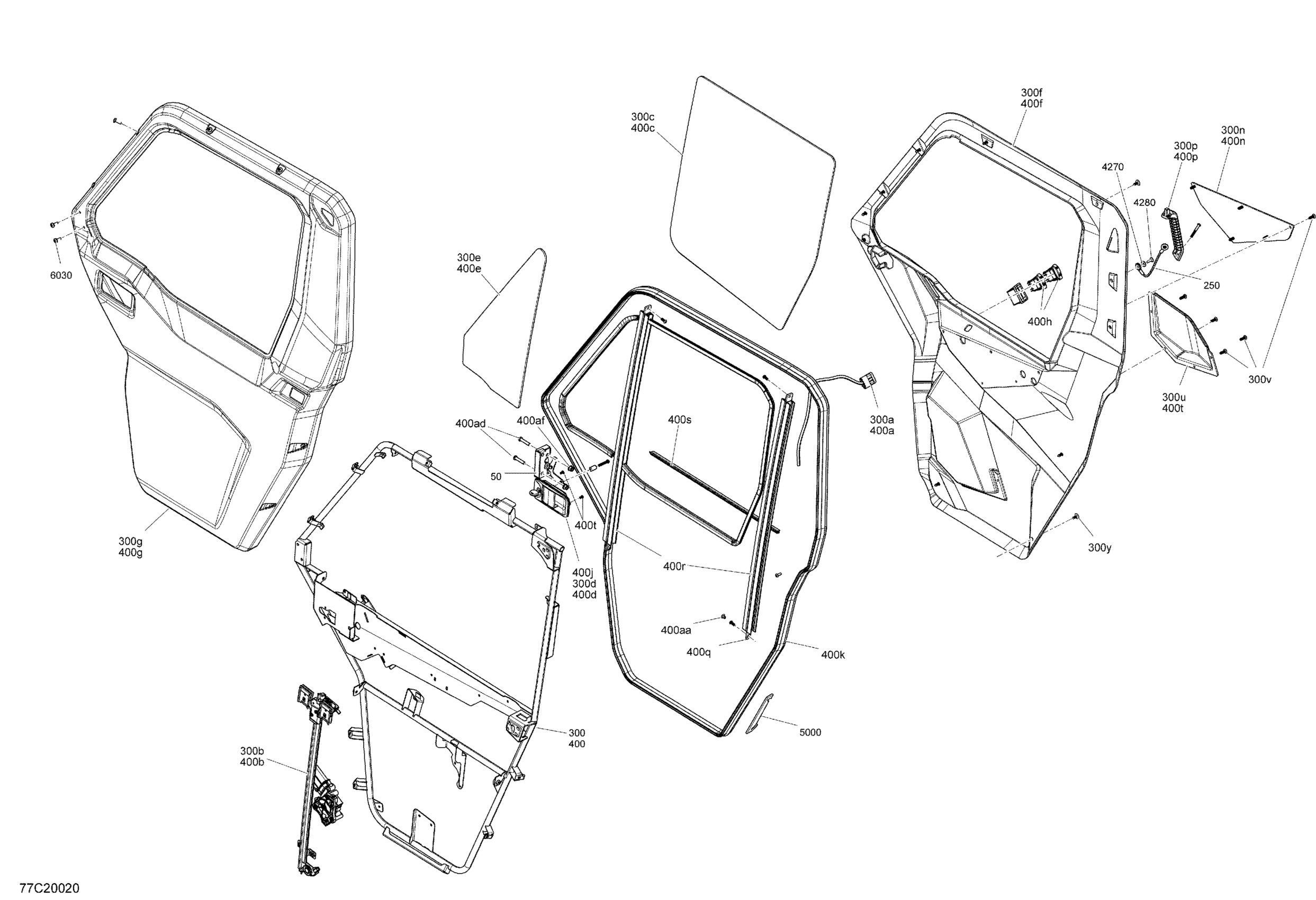

Can-Am Defender MAX HD10 - CAB - 2020 Cab - Front Door Diagram

Handle Anchor

705800008

$17.13

Door Limit Device Kit | 2nd version, 2 Holes

703500982

$17.88

LH Front Rigid Door Ass'y | Includes 300 to 300a10

705800659

Unavailable

Driver Door Harness

705800047

$211.91

LH Roll-Down Glass

705800016

$559.99

LH A-Pillar Glass

705800608

$310.42

LH Routed Inner Door | For Plastic Handle

705800322

$1,209.99

LH Ext Door Panel

705800665

$1,177.58

LH Interior Handle

705800324

$105.19

LH Door Pocket

705800604

$164.15

RH Door Pocket

705800605

$164.15

Plastic Dart

705009405

$1.73

Black, Dart

293730011

$0.91

LH Interior Latch Kit

703500915

$185.79

RH Interior Latch Kit

703500916

$185.79

LH Door Panel Kit

715006687

$203.70

RH Door Panel Kit

715006689

$203.70

DOOR_RIGID FR ASSY - Call your local BRP dealership | Includes 300 to 300a10

705800660

Unavailable

Passenger Door Harness

705800050

$226.84

LH Window Regulator Ass'y

705800594

$611.91

RH Window Regulator Ass'y

705800593

$611.91

RH Roll-Down Glass

705800025

$559.99

RH A-Pillar Glass

705800609

$310.42

RH Routed Inner Door | For Plastic Handle

705800323

$1,239.99

RH Door Panel EXT

705800666

$1,177.58

Window Switch

710004979

$35.60

Exterior Paddle Latch | Keys 705800184 sold separately

705800015

$241.01

Seal 705800290 - 5000 MM

705800289

$204.45

RH Interior Handle

705800325

$105.19

Window Guide Bracket

705800595

$155.19

Window Guide Extrusion

705800590

$155.19

Folcked Beltline Trim 705800294 600mm

705800591

$49.22

Socket Head Screw M5 X 10

205951046

$2.31

Interior Latch Cable 28''

715900504

$88.78

RH Latch Cable 2.9''

715900494

$56.99

RH Power Window Switch Housing

715900527

$19.37

Torx-truss M/s M6 X 10

250000995

$4.15

Socket Head Screw M8 X 40

205484060

$3.88

Elastic Flange Nut M8

233281466

$0.96

Stainless Steel Flat Washer

234062670

$2.00

Torx Screw M6 X 20

250000722

$1.54

Acoustic Insulation

705800504

$4.76

Torx Screw M6 X 20

250000712

$2.00
