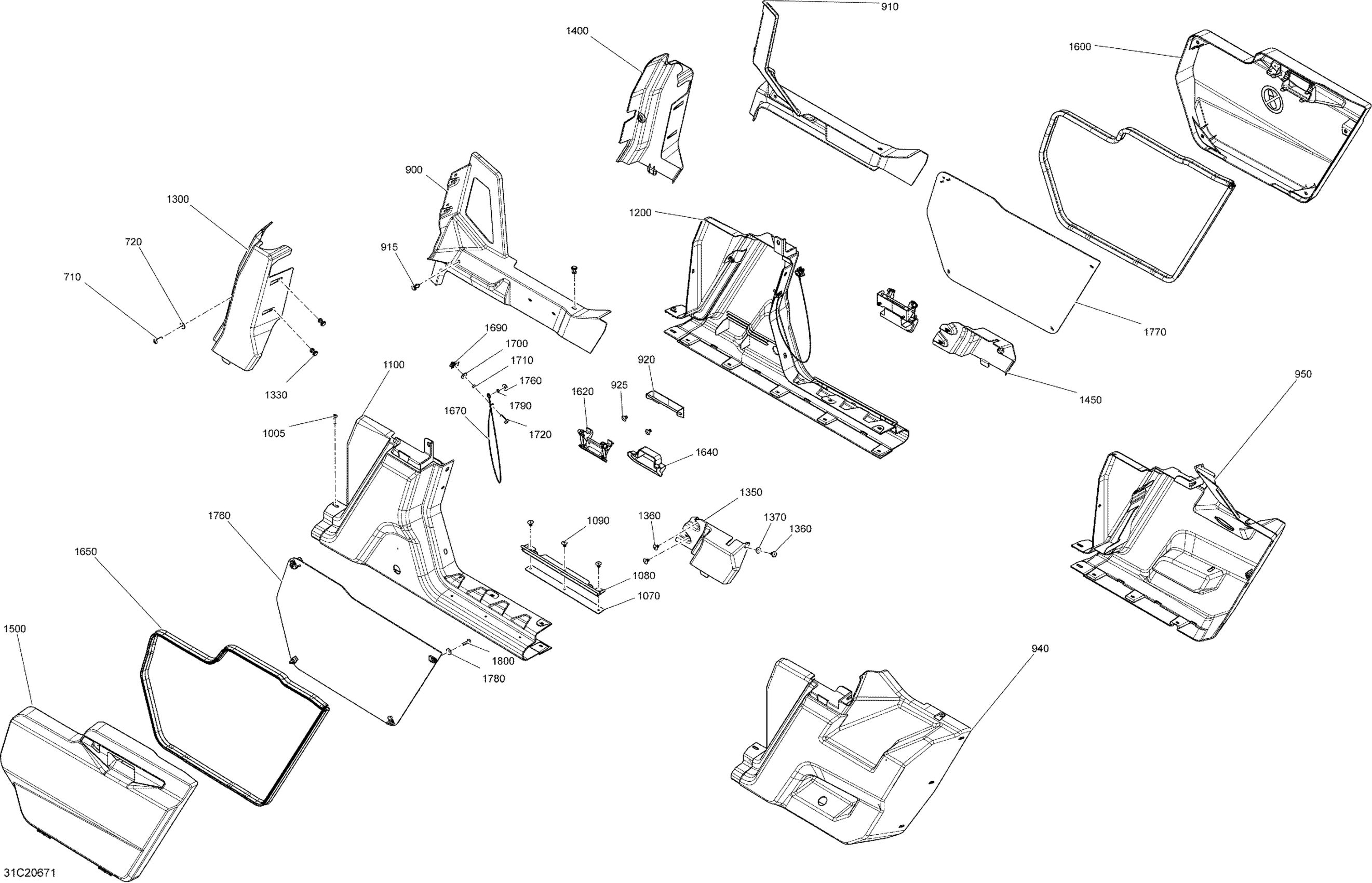

Can-Am Defender MAX HD10 - CAB - 2020 Body - Doors Section Diagram

#

Description
Price

710

Torx Truss Screw M6 X 25

250000807

$2.00

720

Stainless Steel Flat Washer

234062670

$2.00

900

LH Central Body Panel

705014160

$103.70

910

RH Central Body Panel

705014161

$103.70

915

Tuflok Plastic Rivet

293150230

$1.39

920

Deep Black, Pivot Support

705018362

$12.79

925

Pop Rivet 3/16”

293150108

$1.19

940

LH Body Panel Kit

715007134

$107.43

950

Deep Black, RH Rear Body Panel

705014159

$107.43

1005

Torx Truss Screw M6 X 25

250000807

$2.00

1070

Reinforcement Panel

705014755

$16.39

1080

Support Pivot

705014759

$25.34

1090

Pop Rivet 3/16”

293150108

$1.19

1100

LH Middle Side Panel

705014750

$99.22

1200

RH Middle Side Panel

705014751

$99.22

1300

LH Rear Cage Cover Kit

715003564

$73.85

1330

Tuflok Plastic Rivet

293150230

$1.39

1350

Deep Black, LH Rear Body Panel

705014748

$103.70

1360

Pop Rivet 3/16"

293150103

$0.52

1370

Washer M5

250200025

$0.70

1400

RH Rear Cage Cover Kit | Includes 1160 to 1160a

715003565

$73.85

1450

Deep Black, RH Rear Body Panel

705014749

$103.70

1500

Deep Black, LH Rear Door Panel

705014162

$38.03

1600

Deep Black, RH Rear Door Panel

705014163

$38.03

1620

Seat Latch

269003103

$6.72

1640

Latch Trim

705014752

$10.88

1650

Gasket

705014164

Unavailable

1670

Cable Retaining

705014763

$9.48

1690

Panel Nut M6 X 1.0

250100198

$1.99

1700

Stainless Steel Flat Washer

234062670

$2.00

1710

Bushing

708300737

$4.43

1720

Torx Truss Screw M6 X 25

250000807

$2.00

1750

Panel Nut M6 X 1.0

250100198

$1.99

1755

Panel Reinforcement

705014804

Unavailable

1760

Stainless Steel Flat Washer

234062670

$2.00

1770

Bushing

708300737

$4.43

1780

Torx Truss Screw M6 X 25

250000807

$2.00
