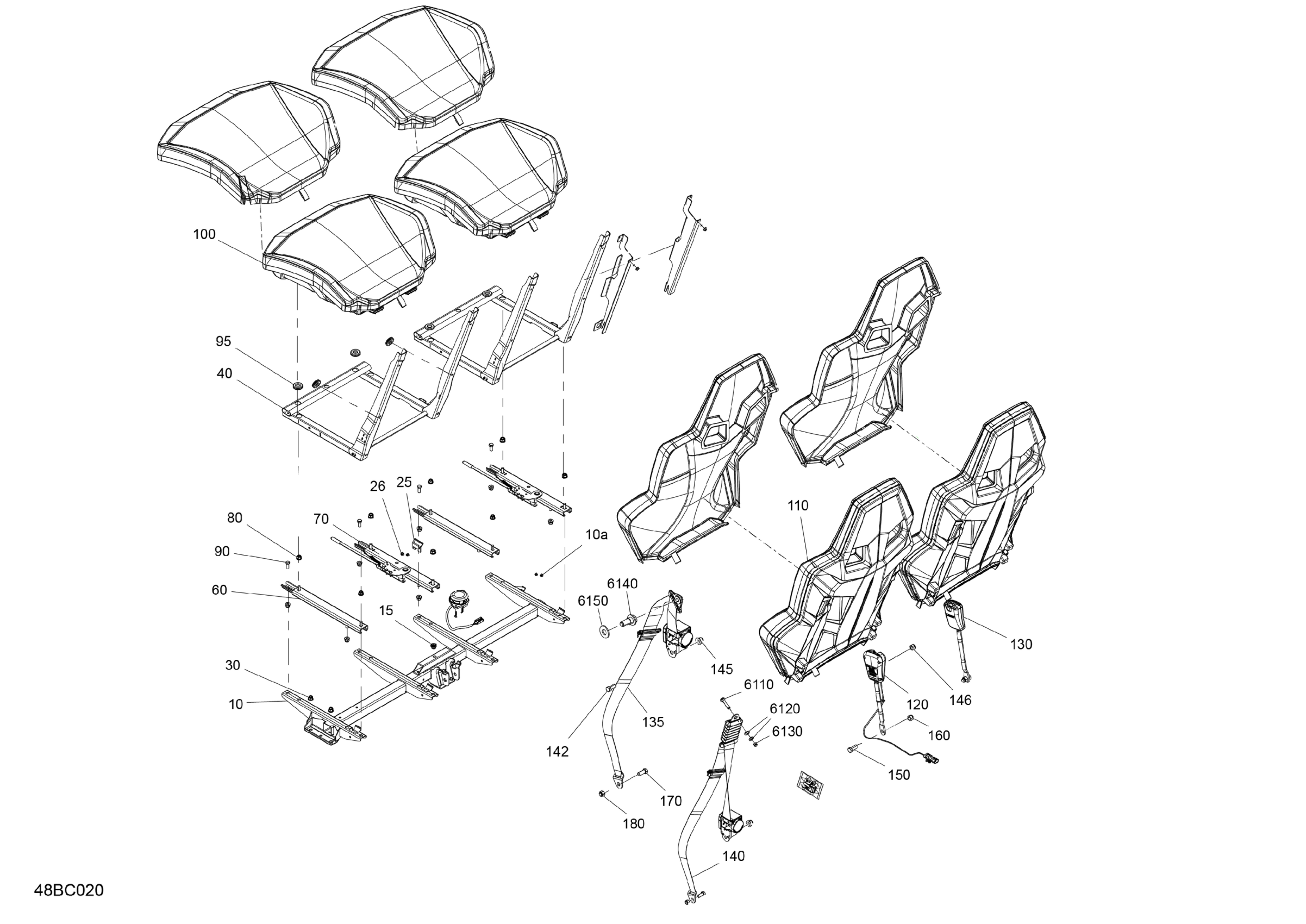

Can-Am Commander MAX 1000R EFI - XTP - 2023 Body - Seat Diagram

#

Description
Price

10

Seat Member | Includes 10 to 10a9

708003472

$379.99

10a

Pop Rivet 3/16"

390402200

$0.35

15

Insert Half Hex Body M6 x 1.0

250100199

$3.19

25

Seat Stopper

708003672

$2.59

26

Pop Rivet 3/16"

390402200

$0.35

30

Hex. Flange Elastic Nut M8

233281414

$1.47

40

Seat Frame

708002423

$329.99

60

LH Seat Rail

708003314

$52.99

70

RH Slide

708003316

$34.99

80

Hex. Flange Elastic Nut M8

233281414

$1.47

90

Hex. Screw M8 X 20

207182044

$0.74

95

Grommet

517303756

$4.09

100

Cushion Ass'y

708003278

$249.99

110

LH Seat Base Kit

715005817

$339.99

110

RH Seat Base Kit

715005819

$339.99

120

Driver Buckle

708002331

$70.99

130

Passenger Buckle

708002329

$67.99

135

Safety Belt

708002835

$243.49

140

Safety Belt

708003378

$238.49

142

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.90

145

Elastic Flange Nut M12

233221416

$2.85

146

Lock Nut Nylon 7/16

250100183

$2.00

150

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.90

160

Lock Nut Nylon 7/16

250100183

$2.00

170

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.90

180

Lock Nut Nylon 7/16

250100183

$2.00

6110

Safet Belt Screw

708002443

$19.99

6120

Position Washer

708000891

$1.29

6130

Lock Nut Nylon 7/16

250100183

$2.00

6140

Safety Belt screw

708002504

$5.29

6150

Flat Washer M12

250200102

$2.11
