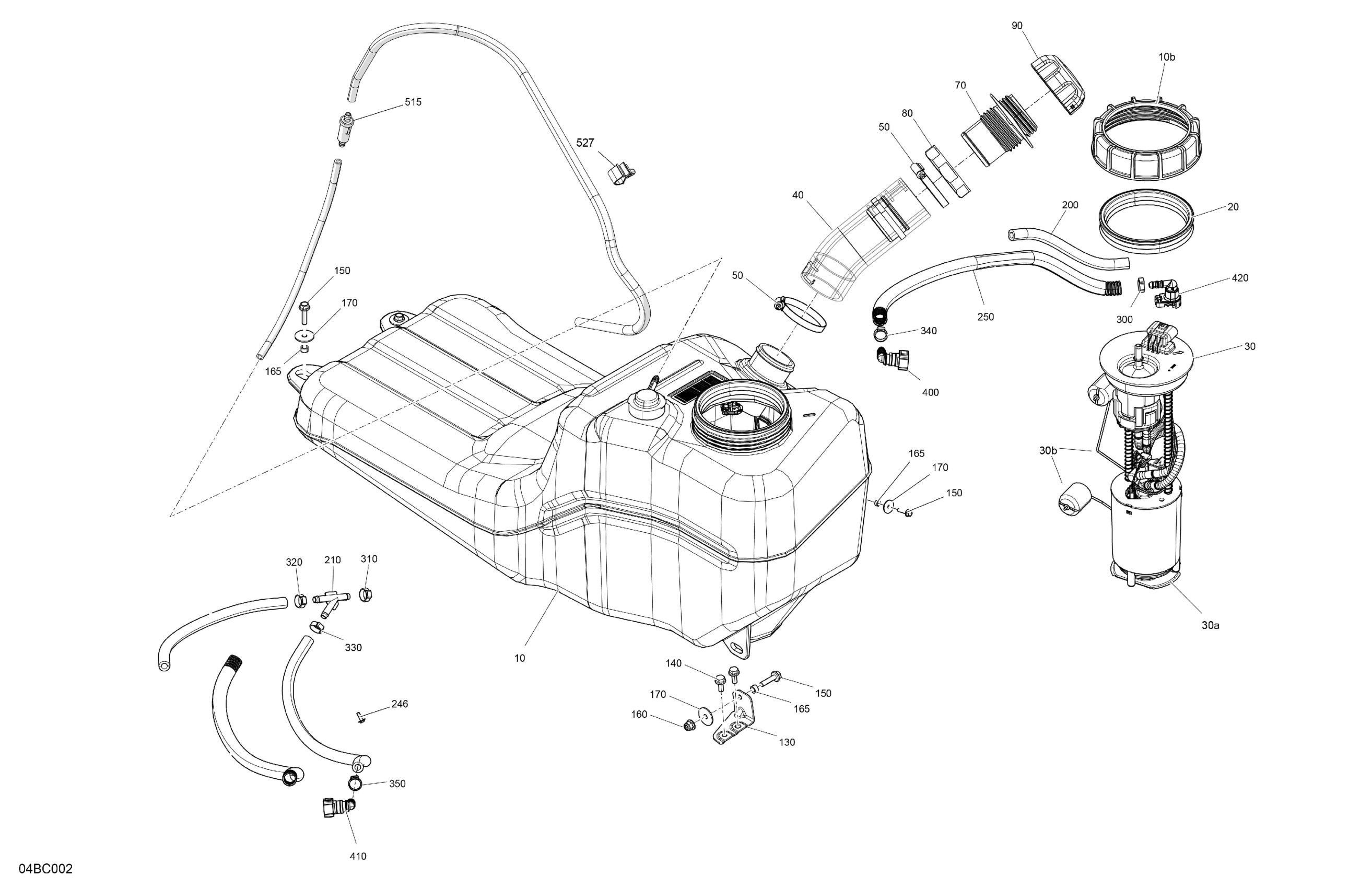

Can-Am Commander MAX 1000R EFI - XTP - 2023 Engine - Fuel - NO EVAP Diagram

#

Description
Price

10

Fuel Tank Ass'y | Includes 10 to 10b

709001434

$429.99

10b

Special Nut M130

250100062

$21.99

20

Gasket

293250173

$18.49

30

Fuel Pump | Includes 30 to 30b

709001056

$372.49

30a

Fuel Filter

270600113

$33.99

30b

Fuel Sender

715900424

$144.99

40

Hose Fuel Tank Ass'y

709001206

$85.99

50

Norma Clamp

293650081

$12.18

70

Filler Neck

709000867

$15.36

80

Fuel Filler Neck Nut

293600206

$13.18

90

Fuel Cap

709000868

$32.99

130

Tank Bracket

709000997

$5.39

140

Hex. Flange Screw M6 X 16

207661644

$0.74

150

Hex. Flange Screw M6 X 25

207662554

$1.48

160

Hex. Flange Elastic Nut M6

233261466

$2.00

165

Spacer

293900135

$1.15

170

Washer M6

250200029

$2.50

200

Hose 7,94 MM ID 3000MM Long

219704475

$47.99

210

Y Fitting

709001329

$11.59

246

Screw PT Type K-50 X 16

250000959

$2.11

250

Tubing 16 Mm 1000Mm Long

219704408

$7.49

300

Crimp Clamp

293650053

$3.09

310

Crimp Clamp

293650053

$3.09

320

Crimp Clamp

293650053

$3.09

330

Crimp Clamp

293650053

$3.09

340

Crimp Clamp

293650053

$3.09

350

Crimp Clamp

293650053

$3.09

400

Quick Disconnect

275500921

$16.49

410

Quick Disconnect

275500921

$16.49

420

Quick Disconnect

275500921

$16.49

515

Filter

709001120

$8.05

527

Tie Rap Mount (screwable)

515176795

$5.39
