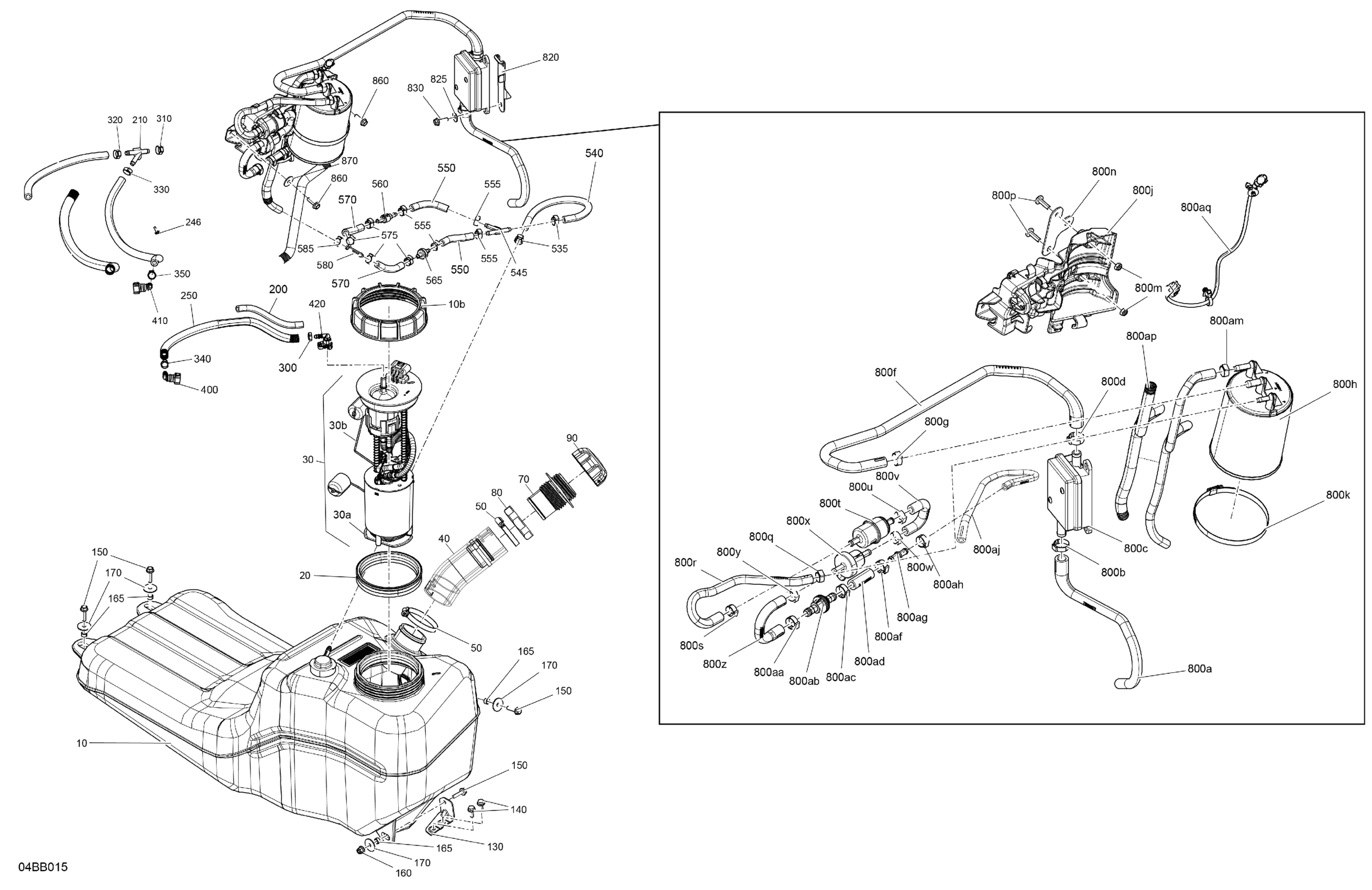

Can-Am Commander MAX 1000R EFI - XTP - 2023 Engine - Fuel - EVAP Diagram

#

Description
Price

10

Fuel Tank Ass'y | Includes 10 to 10b

709001434

$379.07

10b

Special Nut M130

250100062

$17.52

20

Gasket

293250173

$15.57

30

Fuel Pump | Includes 30 to 30b

709001056

$353.87

30a

Fuel Filter

270600113

$27.27

30b

Fuel Sender

715900424

$130.57

40

Hose Fuel Tank Ass'y

709001206

$79.82

50

Norma Clamp

293650081

$9.87

70

Filler Neck

709000867

$14.33

80

Fuel Filler Neck Nut

293600206

$10.02

90

Fuel Cap

709000868

$29.07

130

Tank Bracket

709000997

$5.21

140

Hex. Flange Screw M6 X 16

207661644

$0.61

150

Hex. Flange Screw M6 X 25

207662554

$1.43

160

Hex. Flange Elastic Nut M6

233261466

$1.66

165

Spacer

293900135

$1.04

170

Washer M6

250200029

$1.78

200

Hose 7,94 MM ID 3000MM Long

219704475

$81.31

210

Y Fitting

709001329

$9.85

246

Screw PT Type K-50 X 16

250000959

$1.74

250

Tubing 16 Mm 1000Mm Long

219704408

$6.23

300

Crimp Clamp

293650053

$2.42

310

Crimp Clamp

293650053

$2.42

320

Crimp Clamp

293650053

$2.42

330

Crimp Clamp

293650053

$2.42

340

Crimp Clamp

293650053

$2.42

350

Crimp Clamp

293650053

$2.42

400

Quick Disconnect

275500921

$12.61

410

Quick Disconnect

275500921

$12.61

420

Quick Disconnect

275500921

$12.61

535

Oetiker Clamp

293650042

$1.40

540

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

545

Y-Fitting

293710059

$8.19

550

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

555

Oetiker Clamp

293650042

$1.40

560

Check Valve

513033469

$25.32

565

Check Valve

275500398

$8.57

570

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

575

Oetiker Clamp

293650042

$1.40

580

Y-Fitting

293710059

$8.19

585

Oetiker Clamp

293650042

$1.40

800a

Formed Hose

709000879

$15.64

800b

Oetiker Clamp

293650186

$3.33

800c

Air Filter

709000524

$41.01

800d

Oetiker Clamp

293650186

$3.33

800f

Formed Hose

709000957

$15.64

800g

Crimp Clamp

293650053

$2.42

800h

Charcoal Canister This part replaces 709001294.

709001673

$79.07

800j

Canister Support

709001296

$4.40

800k

Tridon Clamp

293650054

$7.51

800m

Hex. Elastic Stop Nut M6

232561600

$0.92

800n

Support

709000936

Unavailable

800p

Torx Screw M6 X 20

250000712

$1.74

800q

Oetiker Clamp

293650042

$1.40

800r

Formed Hose

709000853

$14.33

800s

Oetiker Clamp

293650046

$2.33

800t

Fuel Filter

513034047

$35.99

800u

Crimp Clamp, 15.3-706R

293650047

$2.64

800v

Formed Hose

709000857

$14.33

800w

Crimp Clamp, 15.3-706R

293650047

$2.64

800x

Bleed Valve

709000443

$65.64

800y

Crimp Clamp, 15.3-706R

293650047

$2.64

800z

Formed Hose

709000881

$15.64

800aa

Crimp Clamp

293650053

$2.42

800ab

Check Valve

275500941

$23.10

800ac

Crimp Clamp

293650053

$2.42

800ad

Hose

709000882

$14.33

800af

Crimp Clamp

293650053

$2.42

800ag

Flow Reducer

709000933

$3.79

800ah

Crimp Clamp, 15.3-706R

293650047

$2.64

800aj

Formed Hose

709001013

$26.09

800am

Oetiker Clamp

293650046

$2.33

800ap

Tubing 16 Mm 1000Mm Long

219704408

$6.23

800aq

Extension Wiring Harness

710005866

$24.60

820

Filter Support

709000935

$3.18

825

Stainless Steel Flat Washer

234062670

$1.74

830

Hex. Flange Screw M6 X 20

207662054

$0.83

860

Hex. Flange Screw M6 X 20

207662054

$0.83

870

Flat Washer M6.6 X 22

250200162

$1.91
