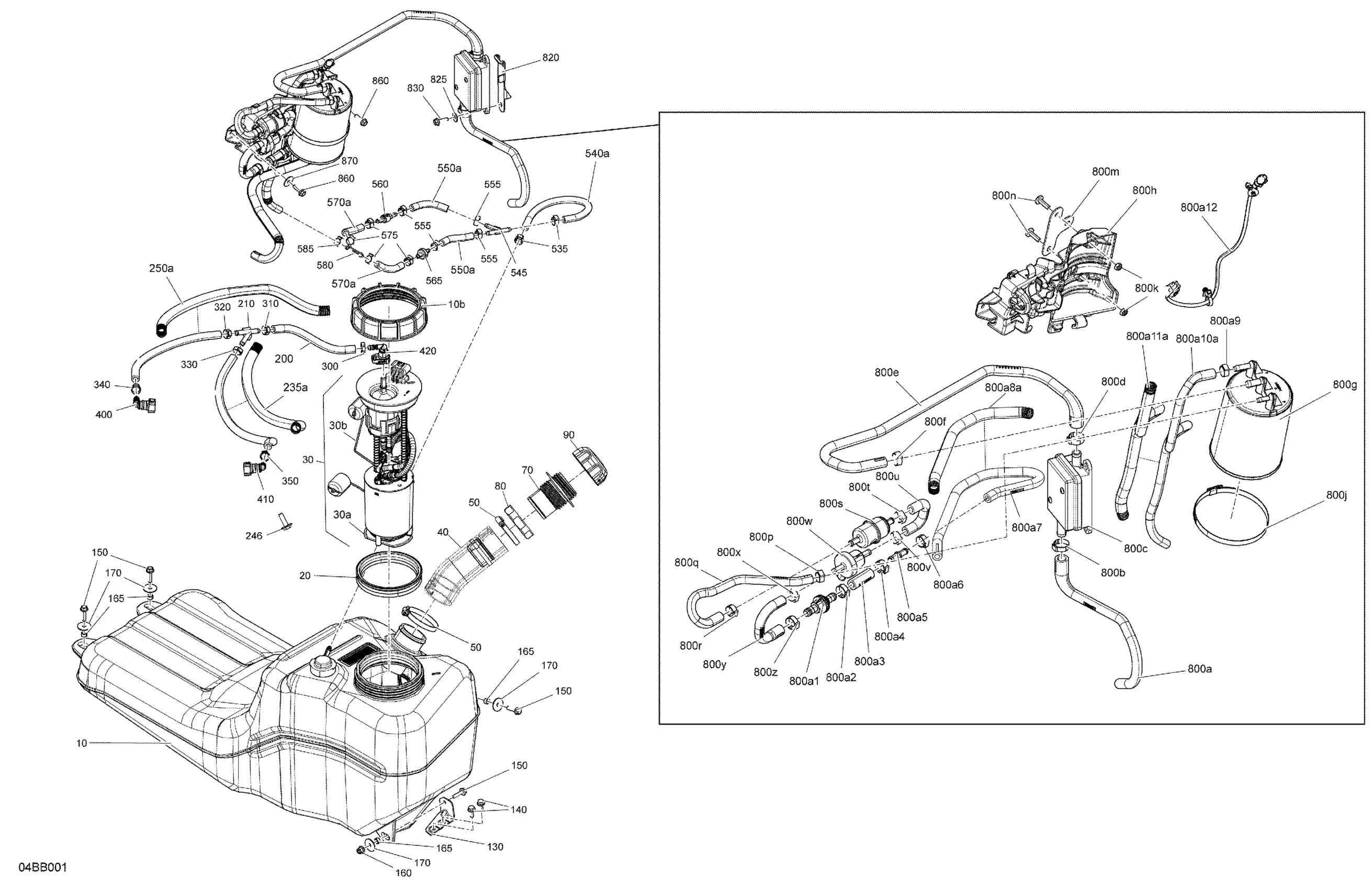

Can-Am Commander MAX 1000R EFI - XTP - 2022 Engine - Fuel - EVAP Diagram

#

Description
Price

10

Fuel Tank Ass'y | Includes 10 to 10b

709001434

$429.99

10b

Special Nut M130

250100062

$21.99

20

Gasket

293250173

$18.49

30

Fuel Pump | Includes 30 to 30b

709001056

$372.49

30a

Fuel Filter

270600113

$33.99

30b

Fuel Sender

715900424

$144.99

40

Hose Fuel Tank Ass'y

709001206

$85.99

50

Norma Clamp

293650081

$12.18

70

Filler Neck

709000867

$15.36

80

Fuel Filler Neck Nut

293600206

$13.18

90

Fuel Cap

709000868

$32.99

130

Tank Bracket

709000997

$5.39

140

Hex. Flange Screw M6 X 16

207661644

$0.74

150

Hex. Flange Screw M6 X 25

207662554

$1.48

160

Hex. Flange Elastic Nut M6

233261466

$2.00

165

Spacer

293900135

$1.15

170

Washer M6

250200029

$2.50

200

Hose 7,94 MM ID 3000MM Long

219704475

$47.99

210

Y Fitting

709001329

$11.59

235a

Tubing 16 Mm 1000Mm Long

219704408

$7.49

246

Screw PT Type K-50 X 16

250000959

$2.11

250a

Tubing 16 Mm 1000Mm Long

219704408

$7.49

300

Crimp Clamp

293650053

$3.09

310

Crimp Clamp

293650053

$3.09

320

Crimp Clamp

293650053

$3.09

330

Crimp Clamp

293650053

$3.09

340

Crimp Clamp

293650053

$3.09

350

Crimp Clamp

293650053

$3.09

400

Quick Attach 90°

275500700

$16.49

410

Quick Attach 90°

275500700

$16.49

420

Quick Disconnect

275500921

$16.49

535

Oetiker Clamp

293650042

$3.09

540a

Hose 6.35Mm 5000Mm Long

219704611

$194.99

545

Y-Fitting

293710059

$9.69

550a

Hose 6.35Mm 5000Mm Long

219704611

$194.99

555

Oetiker Clamp

293650042

$3.09

560

Check Valve

513033469

$31.99

565

Check Valve

275500398

$10.99

570a

Hose 6.35Mm 5000Mm Long

219704611

$194.99

575

Oetiker Clamp

293650042

$3.09

580

Y-Fitting

293710059

$9.69

585

Oetiker Clamp

293650042

$3.09

800a

Formed Hose

709000879

$16.65

800b

Oetiker Clamp

293650186

$3.99

800c

Air Filter

709000524

$45.99

800d

Oetiker Clamp

293650186

$3.99

800e

Formed Hose

709000957

$16.65

800f

Crimp Clamp

293650053

$3.09

800g

Charcoal Canister This part replaces 709001294.

709001673

$88.99

800h

Canister Support | EVAP Models

709000851

$5.29

800j

Tridon Clamp

293650054

$9.49

800k

Hex. Elastic Stop Nut M6

232561600

$1.15

800m

Support

709000936

$4.69

800n

Torx Screw M6 X 20

250000712

$2.11

800p

Oetiker Clamp

293650042

$3.09

800q

Formed Hose

709000853

$17.49

800r

Oetiker Clamp

293650046

$2.89

800s

Fuel Filter

513034047

$21.99

800t

Crimp Clamp, 15.3-706R

293650047

$3.29

800u

Formed Hose

709000857

$17.49

800v

Crimp Clamp, 15.3-706R

293650047

$3.29

800w

Bleed Valve

709000443

$73.99

800x

Crimp Clamp, 15.3-706R

293650047

$3.29

800y

Formed Hose

709000881

$16.65

800z

Crimp Clamp

293650053

$3.09

800a1

Check Valve

275500941

$25.99

800a2

Crimp Clamp

293650053

$3.09

800a3

Hose

709000882

$16.65

800a4

Crimp Clamp

293650053

$3.09

800a5

Flow Reducer

709000933

$4.12

800a6

Crimp Clamp, 15.3-706R

293650047

$3.29

800a7

Formed Hose

709001013

$28.99

800a8a

Tubing 16 Mm 1000Mm Long

219704408

$7.49

800a9

Oetiker Clamp

293650046

$2.89

800a10a

Hose 6.35Mm 5000Mm Long

219704611

$194.99

800a11a

Tubing 16 Mm 1000Mm Long

219704408

$7.49

800a12

Extension Wiring Harness

710005866

$27.99

820

Filter Support

709000935

$3.29

825

Stainless Steel Flat Washer

234062670

$2.11

830

Hex. Flange Screw M6 X 20

207662054

$1.01

860

Hex. Flange Screw M6 X 20

207662054

$1.01

870

Flat Washer M6.6 X 22

250200162

$2.32
