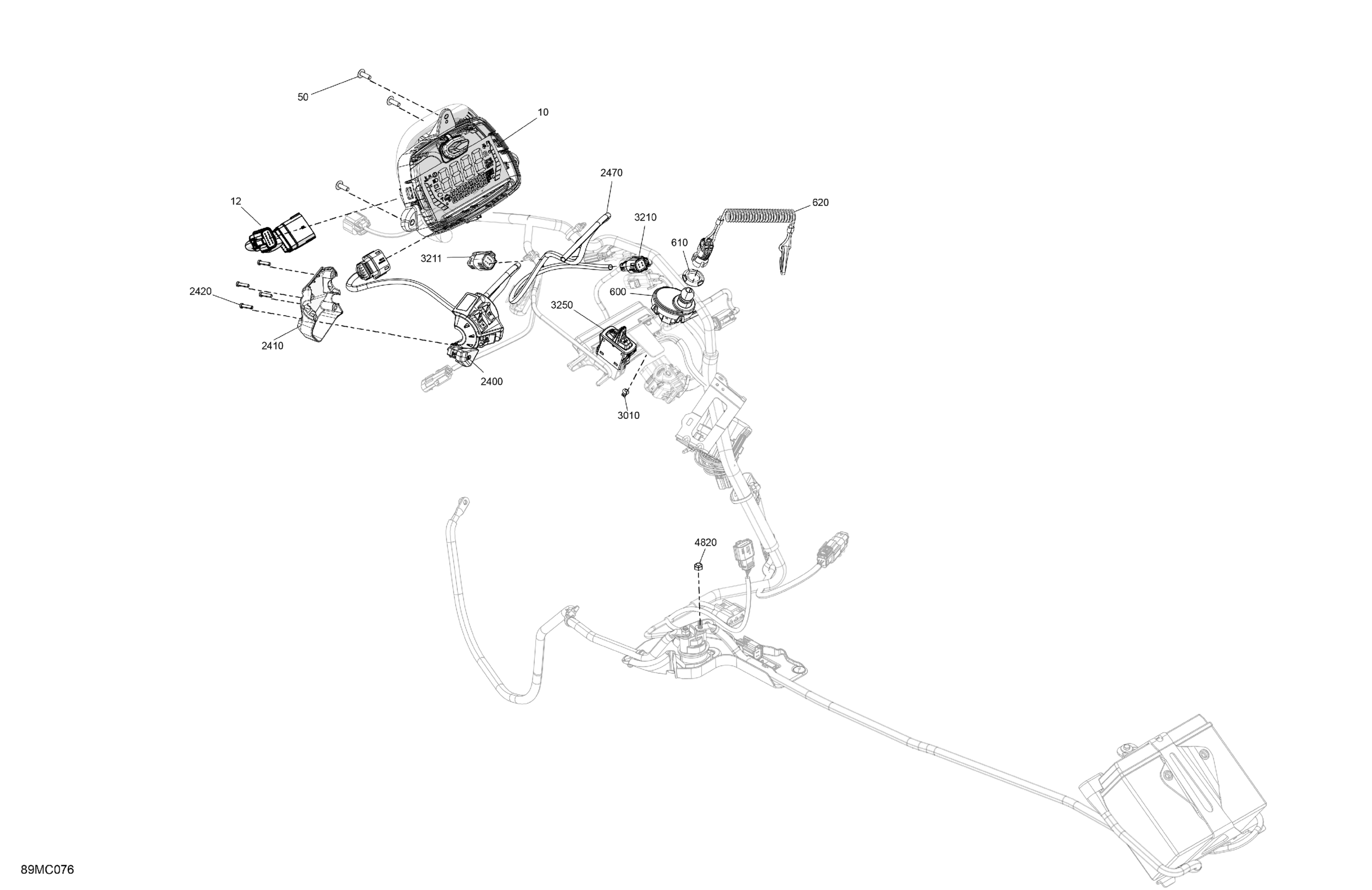

Ski-Doo SKANDIC LE 900 ACE - 20 INCH - (AHPK) - 2023 Electric - Upper Section Diagram

Description

Price

1 Button Multifunction Compact Mono Gauge

515179303

$480.57

2 Button Multifunction Gauge Full Size Color

515178226

$541.01

Junction Wiring Harness

515179304

$22.36

Torx Truss PT K40 x 12

250001131

$2.00

600

Terminal DESS One Wire

515179305

$69.37

610

Safety Nut (DESS Switch)

278002963

$3.12

620

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$62.66

2400

LH Switch Housing

515178102

$258.18

2410

Housing Plate

515177147

$17.13

2420

Torx Screw

250000671

$0.96

2470

Braided Sleeve

415130141

$54.45

3010

Rivet

515177929

$2.06

3210

4 Circuits Female Housing

515178177

$11.54

3211

Coil Connector

515178202

$12.49

3250

Rocket Switch

515178501

$18.63

4820

Elastic Stop Nut M6

232561434

$1.78
