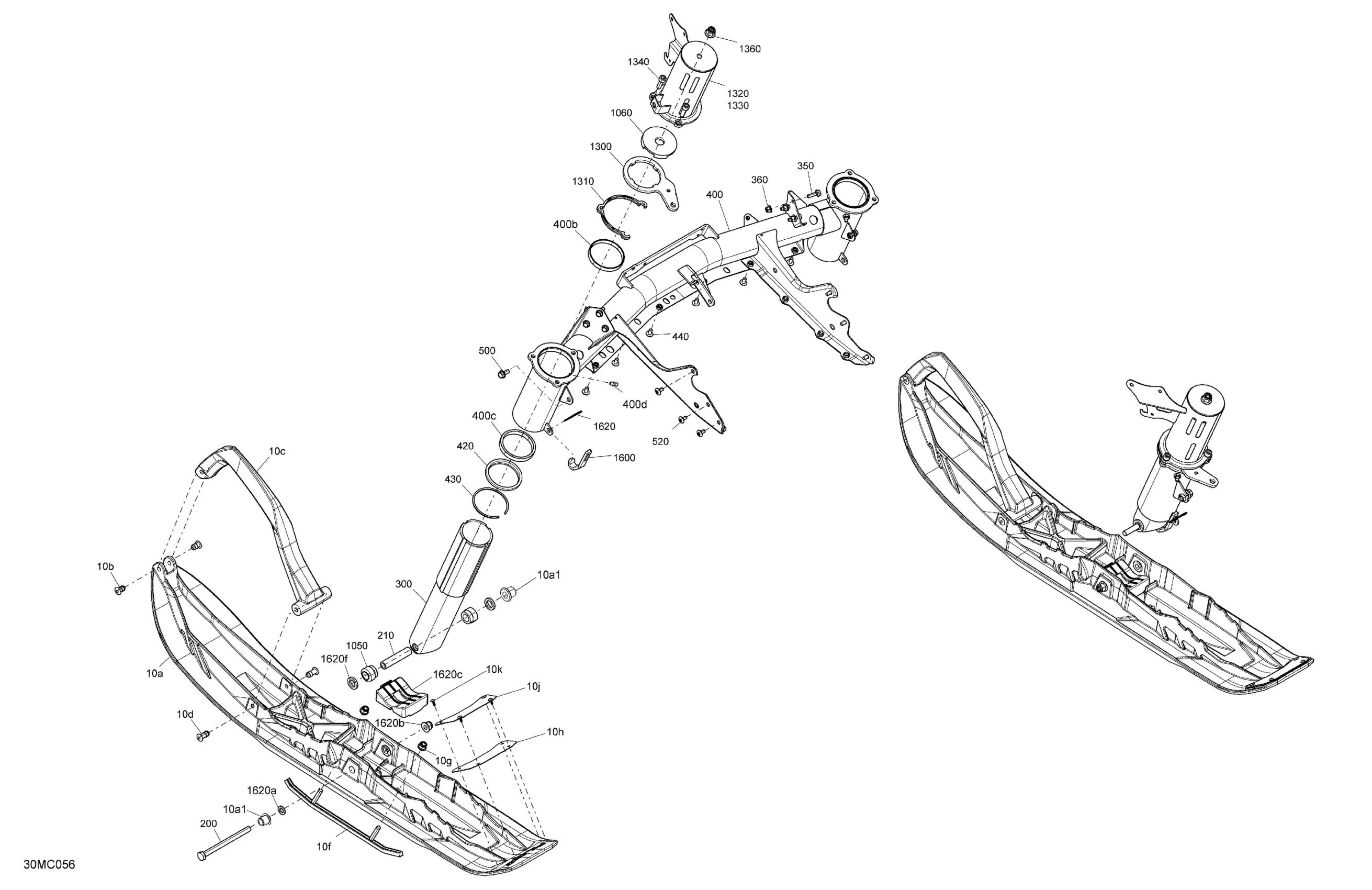

Ski-Doo 008 - SKANDIC LE 900 ACE - 20 INCH - (AHPK) - North America, 2023 05- Suspension - Front Diagram

Description

Price

10a

Deep Black, Ski Pilot 7.4 | Includes 10a to 10a1

505074736

$186.49

10a1

Ski Bushing

505071781

$16.18

10b

Retainer 17mm long

505071812

$5.95

10c

Black, Handle

505072976

$35.99

10d

Retainer 23mm Long

505072133

$6.78

10f

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$92.99

10g

Hex. Flange Elastic Nut M8

233281414

$1.47

10h

Skid Plate

505075134

$11.57

10j

Skid Plate

505075137

$11.57

10k

Torx-Truss Screw K40 X 10

250001034

$0.98

200

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

210

Ski Axle

505073209

$16.49

300

Ski Leg

505073200

$309.99

350

Hex. Flange Screw M6 X 20

207662046

$2.11

360

Elastic Flange Nut M6 X 1.0

233261416

$2.11

400

Suspension Module | Includes 400 to 400g

505075834

$489.99

400b

Upper Cushion

414803100

$10.49

400c

Lower Cushion

414803200

$14.68

400d

Grease Fitting

408200700

$3.49

420

Seal Oil

505072696

$45.99

430

Circlip

505072698

$14.99

440

Torx Truss Screw M6 X 12

250000767

$2.00

500

Hex. Flange Screw M8 X 20

207682044

$1.15

520

Torx Truss Screw M6 X 12

250000767

$2.00

1050

Cushion

572034500

$12.58

1060

Stopper

570025800

$14.99

1300

Steering Arm

505074801

$139.99

1310

Spacer

505073983

$25.99

1320

LH Suspension Cover

505074810

$59.99

1330

RH Suspension Cover

505074812

$59.99

1340

Socket Head Screw M8 X 25

205082544

$1.15

1360

Hex. Flange Elastic Nut M10

233201414

$1.58

1600

Clamp

505074882

$4.12

1620

Spring Cotter 2 Din 11024 Zn

505073113

$2.19

1620a

Washer

503192496

$0.77

1620b

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

1620c

Ski Stopper

505072594

$18.49

1620f

Spacer

505072579

$9.69
