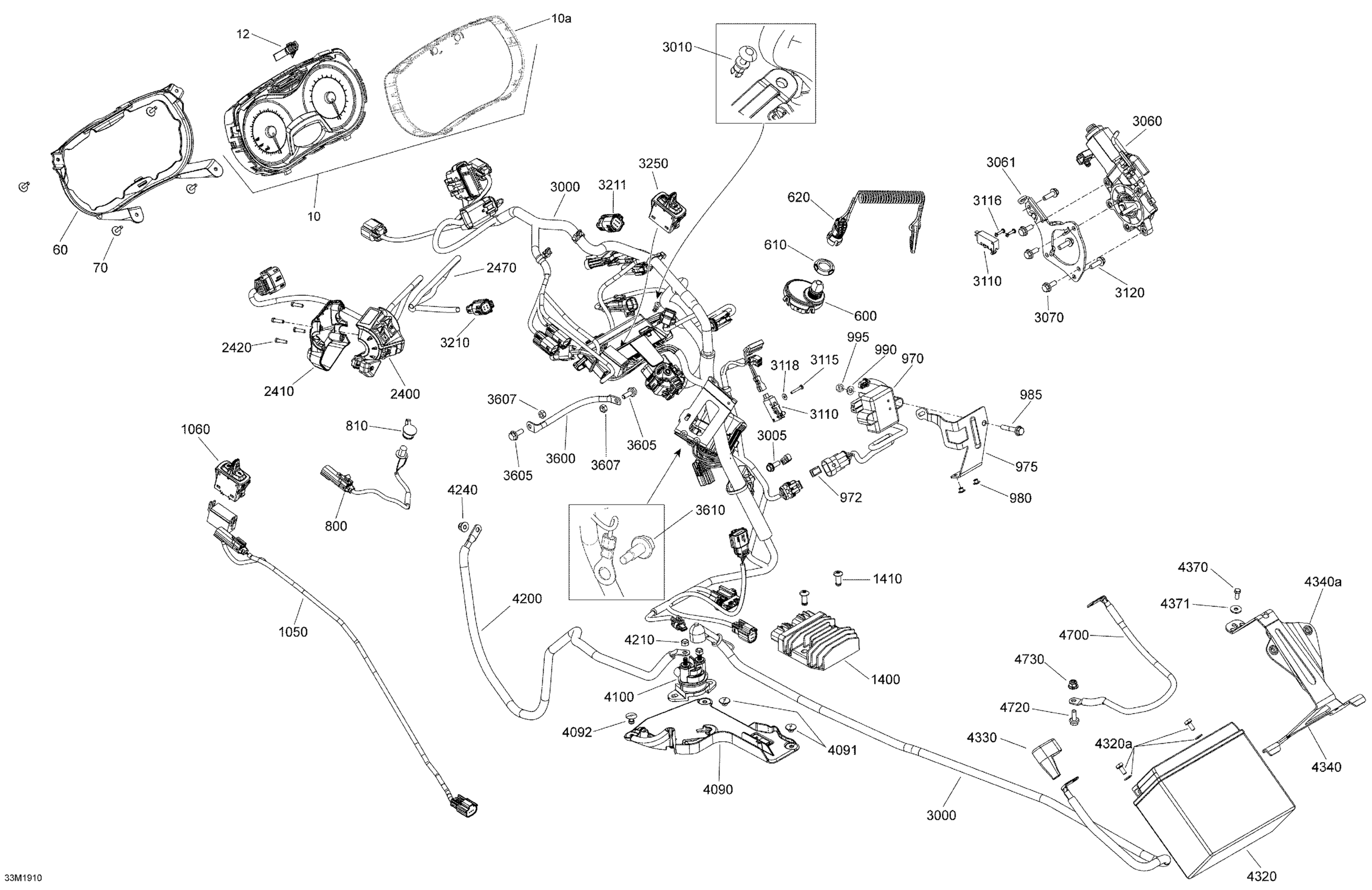

Ski-Doo RENEGADE 900 ACE Turbo, 2019 Electrical - 900 ACE Turbo Diagram

#

Description
Price

10

Indicator

515178369

$549.99

10

Indicator | Package LTD

515178568

$569.99

10a

Lens | XTP

415129349

$24.49

12

Button

515178326

$15.80

60

Support

515177866

$18.49

70

Screw M4 X 16

250000725

$3.49

600

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

610

Safety Nut (DESS Switch)

278002963

$3.28

620

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$84.99

800

Heated Visor Wiring Harness

515178645

$38.99

810

Cap

572103300

$10.49

970

Compressor Module

515178570

$409.99

972

Clip

710000992

$4.29

975

Manifold Support

515178567

$43.99

980

Pop Rivet 3/16"

390402200

$0.35

985

Hex. Flange Screw M6 X 35

207663544

$0.90

990

Flat Washer 6 mm

234061410

$1.36

995

Elastic Stop Nut M6

232561414

$0.55

1050

Seat Wiring Harness

515178608

$38.99

1060

Switch Rocker

515178502

$20.49

1400

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

1410

Monobolt Rivet 6.4

293150182

$3.09

2400

LH Switch Housing

515178102

$284.99

2400

LH Switch Housing

515178196

$284.99

2410

Housing Plate

515177147

$20.99

2420

Torx Screw

250000671

$1.01

2470

Braided Sleeve

415130141

$55.99

3000

Chassis Wiring Harness | Includes 3000 to 3000c

515178556

$309.99

3000

Chassis Wiring Harness | Package LTD

515178558

$309.99

3005

Hex. Flange Screw M6 X 16

250001062

$1.57

3010

Rivet

515177929

$2.21

3060

Motor Ass'y

515180200

$184.99

3061

Stop Plate | Package LTD

515178220

$26.99

3070

Hex. Flange Screw M6 X 16

207661644

$0.74

3110

Switch Ass'y

515177460

$46.99

3110

Switch Ass'y

515177460

$46.99

3115

Hex Screw M3 X 20

207132044

$2.11

3116

Rivet | Not Shown

515178495

$1.29

3118

Flat Washer M3, Stainless

234032600

$0.55

3120

Hex. Flange Screw M6 X 20

210262040

$2.11

3210

4 Circuits Female Housing

515178177

$12.18

3211

Coil Connector

515178202

$13.24

3250

Rocket Switch

515178501

$20.49

3600

Ground Wire

515178338

$16.49

3605

Hex. Flange Screw M6 X 16

207661634

$2.11

3607

Elastic Stop Nut M6

232561414

$0.55

3610

Hex. Flange Screw M5 X 16

250000911

$0.85

4090

Starter Relay Support

515178244

$3.49

4091

Pop Rivet 3/16"

293150103

$0.55

4092

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

4100

Starter Relay

278003012

$42.49

4200

Battery Wire

515178336

$47.99

4210

Elastic Stop Nut M6

232561414

$0.55

4240

Elastic Stop Nut M6

232561414

$0.55

4320

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$164.99

4320a

Battery Bolt Kit

250000282

$7.29

4330

Protector Cap | STD

710001817

$11.12

4340

Battery Strip | Includes 4340 to 4340a

515177870

$19.99

4340a

Insert

293450275

$12.99

4370

Hex. Screw M5 X 12

207151244

$0.90

4371

Washer | DS 650 X

391301600

$0.48

4700

Ground Wire

515178155

$26.99

4720

Hex. Flange Screw M6 X 16

207661644

$0.74

4730

Elastic Flange Nut M6 X 1.0

233261416

$2.11
