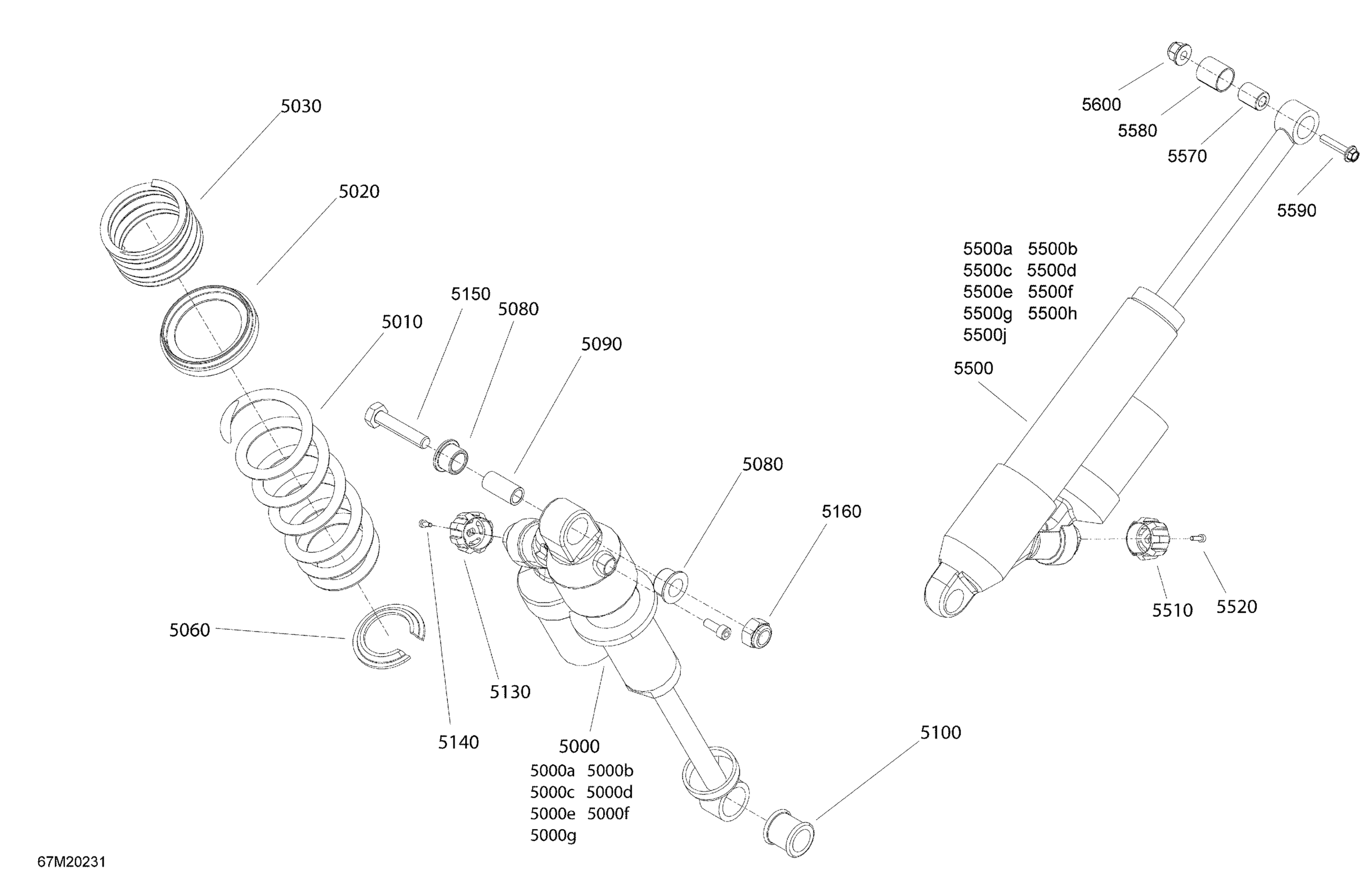

Ski-Doo 008 - RENEGADE 850 E-TEC - XRS - North America, 2020 08- Suspension, Rear - Shocks - XRS Diagram

Description

Price

5000

Center Shock | Includes 5000 to 5000j

503194071

$812.99

5000a

O-Ring

415093807

$35.99

5000b

Piston Ring | Not Shown

415093806

$16.86

5000c

Air Valve

505070398

$20.99

5000d

Screw | Not Shown

505070399

$4.12

5000e

O-Ring

505070400

$4.54

5000f

O-Ring

415093804

$4.54

5000g

Base Valve

415130165

$78.99

5010

Black, Spring (162mm) Long

503193065

$72.99

5020

Spring Spacer

503192743

$16.49

5030

Black, Spring (52mm) Short

503193479

$90.99

5060

Spring Stopper

503194270

$19.99

5080

Urethane Bushing

503189117

$8.19

5090

Bushing | Includes 240d to 240d1

503189282

$4.34

5100

Bushing

503189271

$13.99

5130

Shock Adjuster Knob

503193033

$10.99

5140

Allen Screw M3 X 0.5 X 10

250000644

$2.11

5150

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

5160

Elastic Locking Nut M10

233601466

$2.11

5500

Rear Shock | Includes 5500 to 5500g

503194072

$877.49

5500

Rear Shock | With Quick Adjust System

503193854

$877.49

5500a

O-Ring

415093807

$35.99

5500b

Piston Ring | Not Shown

415093806

$16.86

5500c

Air Valve

505070398

$20.99

5500d

Screw | Not Shown

505070399

$4.12

5500e

O-Ring

505070400

$4.54

5500f

O-Ring

415093804

$4.54

5500g

Base Valve

415130165

$78.99

5500g

Bolt

415093810

$16.86

5500h

O-Ring

415038700

$42.99

5500j

Base Valve

415130165

$78.99

5510

Shock Adjuster Knob

503193033

$10.99

5520

Allen Screw M3 X 0.5 X 10

250000644

$2.11

5570

Axle Shock Absorber

503196509

$12.58

5580

Leg Cushion

505072663

$9.23

5590

Hex. Flange Screw M8 X 40

207684044

$1.48

5600

Elastic Flange Nut M8

233281466

$1.01
