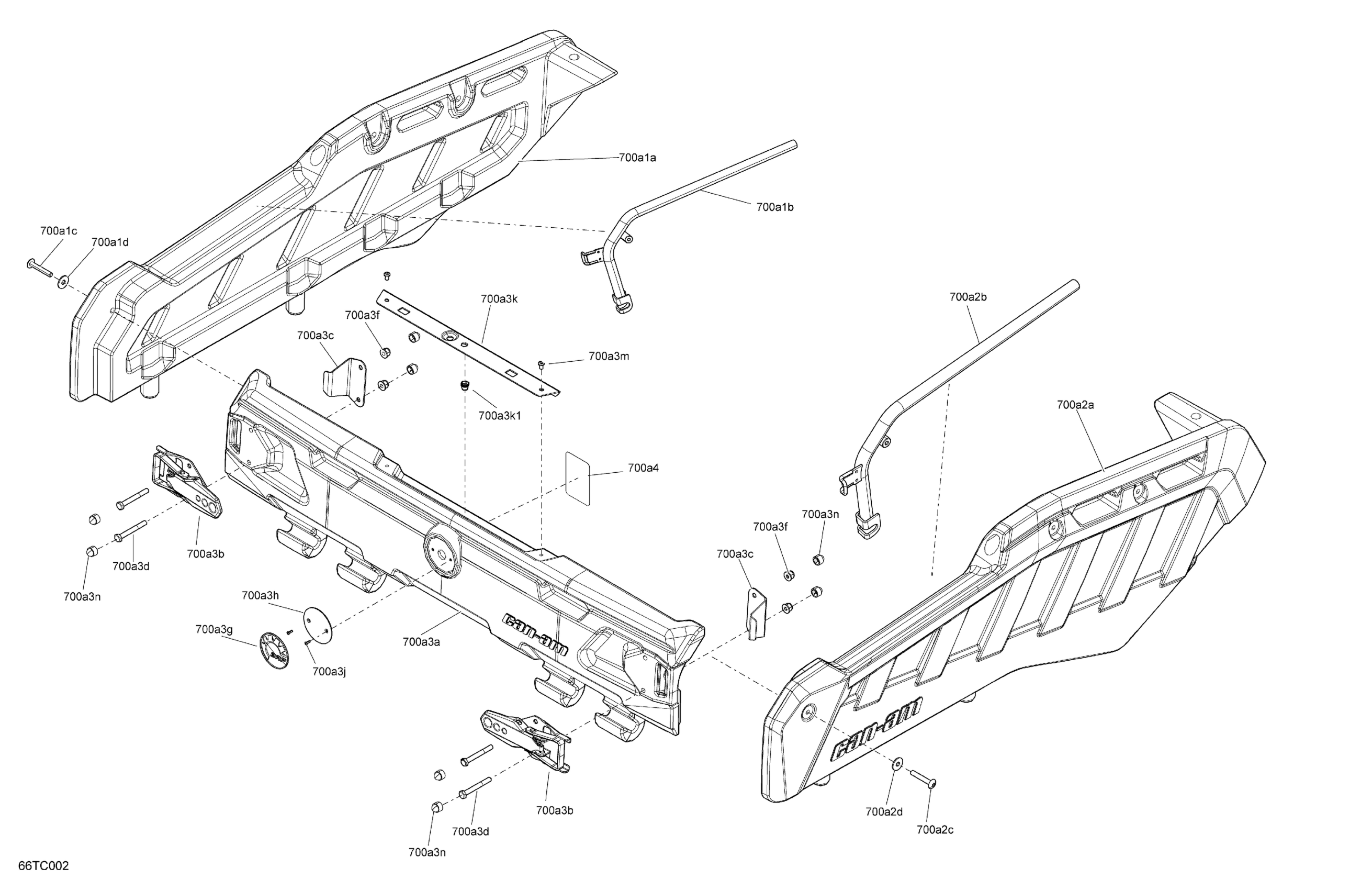

Can-Am Outlander MAX 6X6 - 1000 EFI - XT - 2023 Body - Cargo Wall Diagram

Description

Price

700a1a

Black, LH Side Panel

708303727

$309.99

700a1b

LH Side Railing

708302800

$72.99

700a1c

Torx Truss Screw M8 X 50

250000761

$7.51

700a1d

Stainless Steel Flat Washer

234082670

$2.11

700a2a

Black, RH Side Panel

708303728

$309.99

700a2b

RH Side Railing

708302799

$72.99

700a2c

Torx Truss Screw M8 X 50

250000761

$7.51

700a2d

Stainless Steel Flat Washer

234082670

$2.11

700a3a

Black, Tailgate

708303729

$519.99

700a3b

Latch Ass'y

511001014

$38.99

700a3c

Latch Fixing Plate

708301005

$17.99

700a3d

Hex. Screw M8 x 65

207086544

$1.47

700a3f

Hex. Flange Elastic Nut M8

233281414

$1.47

700a3g

BRP Logo Emblem 68 MM UV

704909041

$16.49

700a3h

Logo Base

708301177

$10.99

700a3j

Countersunk Head Screw K30 X 10

250000698

$1.90

700a3k

Lock List

708301184

$19.99

700a3k1

Clinch Nut Hexsert M8

605636002

$7.51

700a3m

Torx Truss Screw M6 X 12

250000767

$2.00

700a3n

Cover | Model-T3

28056

$5.89

700a4

Warning Label

704904233

Unavailable

700a8

Warning Label

704904605

Unavailable

700a9

Cargo Warning Label | Not Shown

704904681

Unavailable
