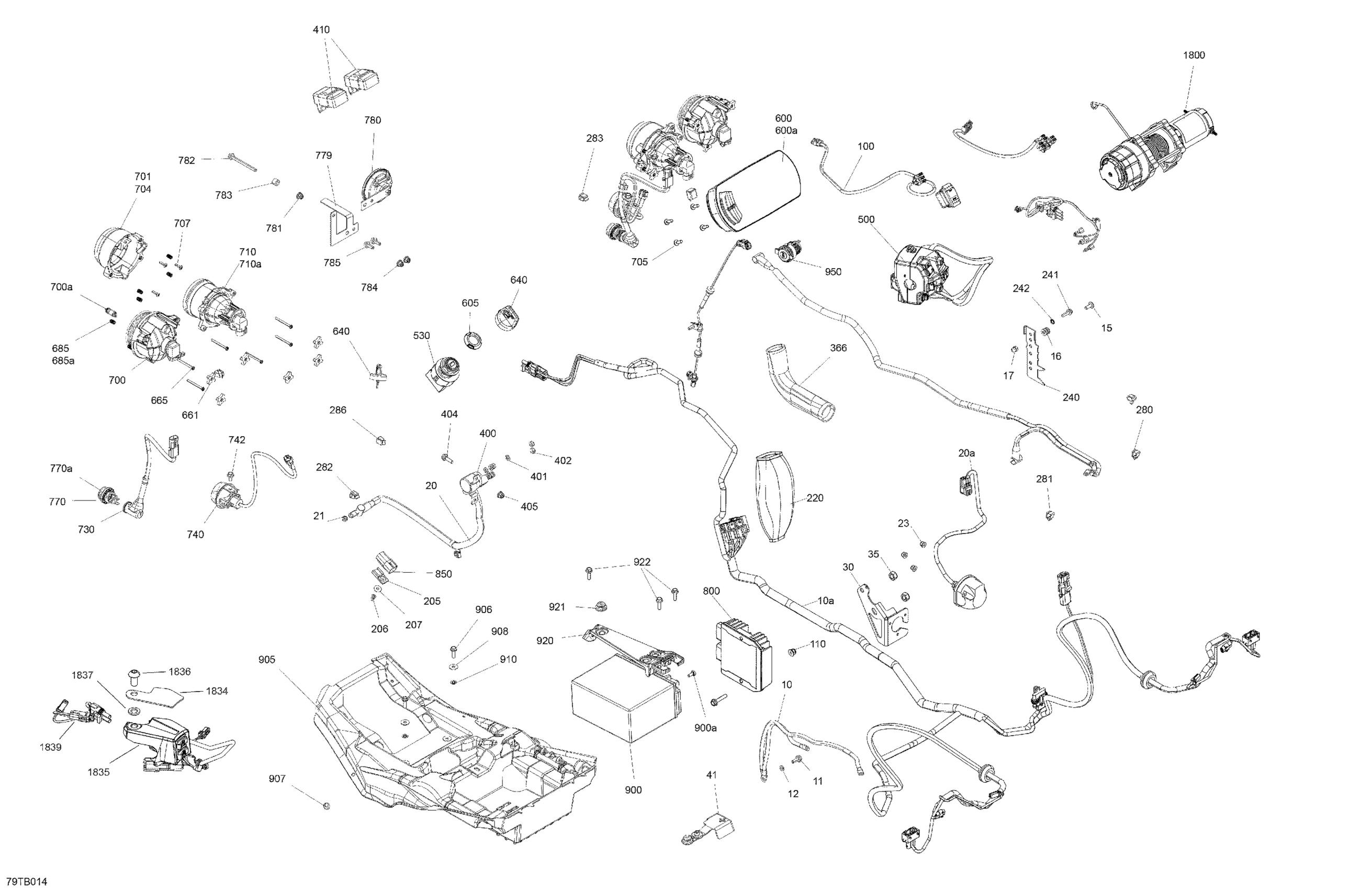

Can-Am Outlander T MAX 6X6 - 1000 EFI - XU+ - T Regulation, 2022 Electric - System Diagram

#

Description
Price

10

Ground Cable

710004382

$17.88

10a

Rear Lighting Wiring Harness | Not Shown

710009472

$273.85

11

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

12

Lock Washer Helical M6

234161601

$0.92

15

Torx Head Screw M6 X 16

250000717

$1.74

16

Flat Washer

224061121

$0.44

17

Domed Nut M6

232361493

$1.77

20

Positive Cable

710004377

$24.60

20a

Trailer Harness

710005846

$202.96

21

Elastic Stop Nut M6

232561434

$1.55

23

Flange Elastic Nut M5

233251434

$1.66

30

Plug Fastening Plate

705204572

Unavailable

35

Elastic Stop Nut M10

232500416

$1.56

41

Battery Cable Cap

710006729

$6.72

100

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

110

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

205

Clip

270000141

$8.33

206

Pop Rivet 3/16"

390402300

$0.73

207

Washer | DS 650 X

391301600

$0.46

220

Sheath | Not Shown

710004193

$18.63

240

Connector Bracket

710004118

$5.04

241

Hex. Flange Screw M6 X 20

210262040

$2.00

242

External Serrated Lock Washer 6 mm

234461608

$0.92

280

Clip

414227300

$1.40

281

Clip

414227300

$1.40

282

Clip

414227300

$1.40

283

Clip

414227300

$1.40

286

Clip

414227300

$1.40

287

Clip

414227300

$1.40

366

Soft Protection Sleeve

710007255

$2.51

400

Starter Relay

710007777

$45.49

401

Lock Washer Helical M6

234161601

$0.92

402

Elastic Stop Nut M6

232561434

$1.55

404

Hex. Flange Screw M6 X 20

207662054

$0.83

405

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

410

Flasher Unit

710003239

$73.10

500

LH Front Switch Housing

710006672

$228.33

530

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

600

Multifunction Gauge Compact Mono

710008108

$364.90

600a

Multifunction Compact Gauge

710007407

$335.04

605

Safety Nut (DESS Switch)

278002963

$2.72

640

Grey Key RFID | Except Model Europe, Except T3

710004964

$53.70

661

Handle

572106600

$9.03

665

Hex. Screw K40 X 45

250000718

$1.74

685

Spring

517168600

$6.70

685a

Spring

517168600

$6.70

700

Low Beam | Includes 54 to 55

710006177

$108.18

700a

Bulb 12V 55W

715900141

$38.78

701

RH High Front Housing

710002291

$25.34

704

LH High Front Housing

710002292

$20.12

705

Torx Screw K50 X 16

250000720

$1.39

707

Phillips Screw K40 X 16

250000723

$0.81

710

High Beam Ass'y | Includes 11 to 12

710002525

$108.18

710a

Halogen Bulb

415129249

$38.78

730

Position Light Harness

710005676

$12.61

740

Flasher | Europe

710002964

$34.30

742

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

770

Day Light | Europe

710001726

$32.81

770a

Cap Protector | Model-Europe

710003269

$10.12

779

Horn Support

710006113

$10.82

780

Horn

710004791

$36.54

781

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

782

Hex. Flange Screw M6 X 70

207667044

$0.70

783

Bushing

708001129

$9.91

784

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

785

Hex. Flange Screw M6 X 16

207661644

$0.61

800

Voltage Regulator

710005842

$159.87

802

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

803

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

850

Housing

710003006

$7.24

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

900a

Battery Bolt Kit

250000282

$2.95

905

Battery Support

710008370

$41.76

906

Hexagonal Head Screw

210262050

$1.74

907

Rubber Bumper

293830005

$5.33

908

Stainless Steel Flat Washer

234062670

$1.74

910

Push Nut

732610072

$1.72

920

Retaining Plate

710009129

$7.09

921

Stopper Rubber

705014429

$6.09

922

Hex. Flange Screw M6 X 20

207662054

$0.83

950

DC Outlet

710001248

$31.17

1800

Electric Winch

710007072

$203.29

1834

Top Plate

715004008

$19.37

1835

Multifonction Housing Ass'y

710004990

$138.78

1836

Screw M10 X1.25 X 20 BHCS S.Grip

710005908

$8.67

1837

Washer

503192496

$0.73

1839

Cable

710004567

$12.60
