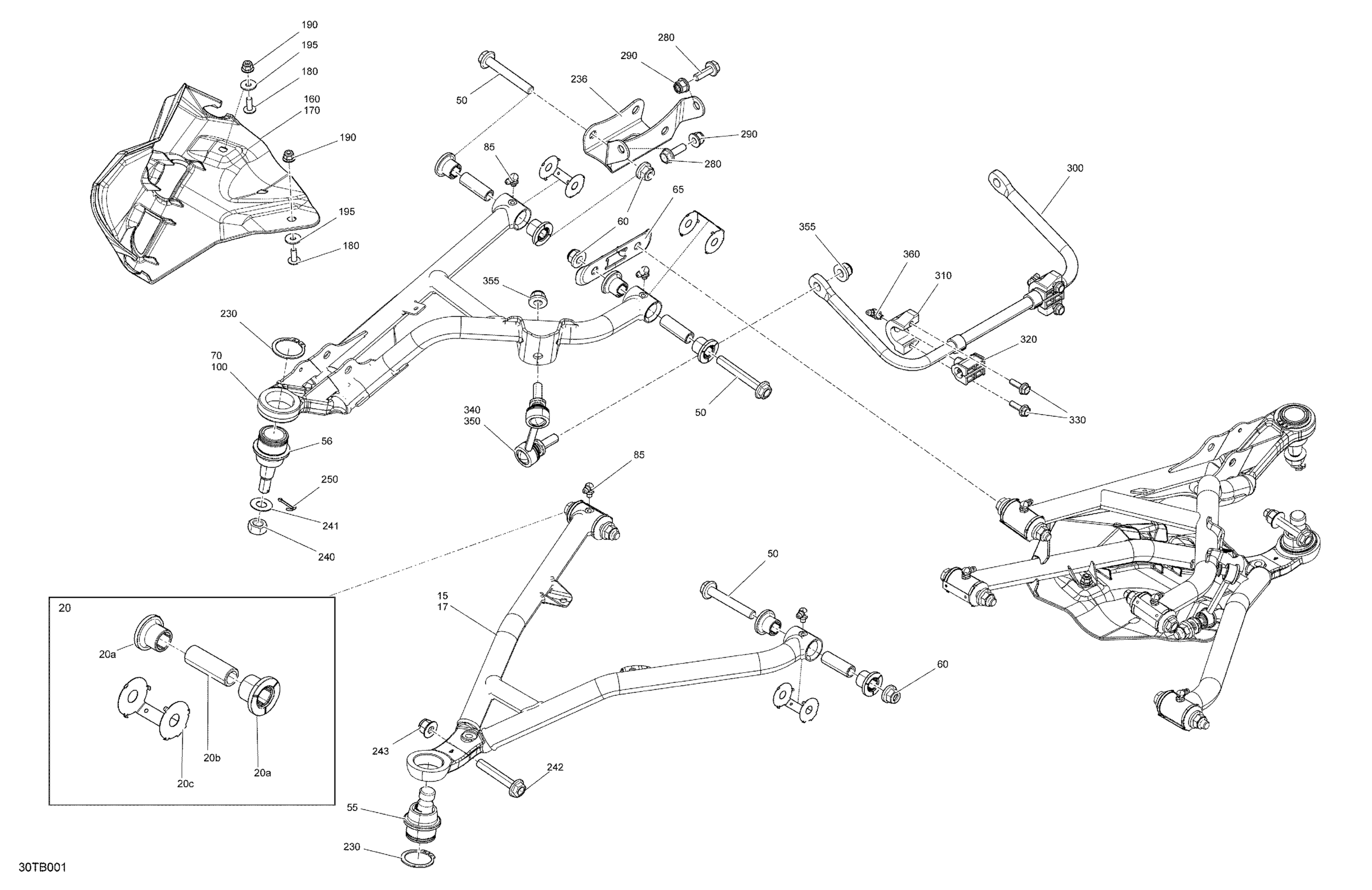

Can-Am Outlander 650 EFI - STD - 2022 Suspension - Front Components Diagram

#

Description
Price

15

LH Lower Suspension Arm

706204637

$156.89

17

RH Lower Suspension Arm

706204638

$156.89

20

Suspension Arm Bushing Kit | Includes 4

703500875

$15.35

20a

Not Available As Spare Part - Friction Washer

Unavailable

20b

Not Available As Spare Part - Friction Washer

Unavailable

20c

Not Available As Spare Part - Friction Washer

Unavailable

50

Hex. Flange Screw M10 X 70

207607046

$2.91

55

Ball Joint

706202045

$35.35

56

Ball Joint

706202044

$35.14

60

Hex. Flange Elastic Nut M10

233201436

$1.74

65

Front Suspension Cross Plate

706200998

$4.91

70

RH Upper Suspension Arm

706204572

$156.89

85

Grease Fitting 90°

293550056

$1.37

100

LH Upper Suspension Arm

706204571

$156.89

160

LH Joint Protector | All Except Packages XXC & Hunting Edition

706203237

$15.22

170

RH Joint Protector | All Except Packages XXC & Hunting Edition

706203238

$10.14

180

Torx Screw M6 X 16

250000755

$0.72

190

Hex. Flange Elastic Nut M6

233261494

$1.26

195

Stainless Steel Flat Washer

234062670

$1.74

230

Circlip

293370035

$2.55

236

Upper Front Holder

705203247

$14.37

240

Nut M12

250100099

$1.64

241

Hardened Washer

706200281

$2.34

242

Hex. Flange Screw M10 X 60

207606044

$2.78

243

Hex. Flange Elastic Nut M10

233201434

$1.63

250

Cotter Pin

211400017

$0.25

280

Hex. Flange Screw M8 X 25

207682544

$0.90

290

Hex. Flange Elastic Nut M8

233281414

$1.14

300

Sway Bar

706203715

$124.58

310

Clamp

706203929

$27.66

320

Stabilizer Bar Bushing

706204796

$9.22

330

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

340

LH Sway Bar Link

706203290

$67.66

350

RH Sway Bar Link

706203291

$67.66

355

Hex. Flange Elastic Nut M10

233201414

$1.26

360

Grease Fitting 90°

293550056

$1.37
