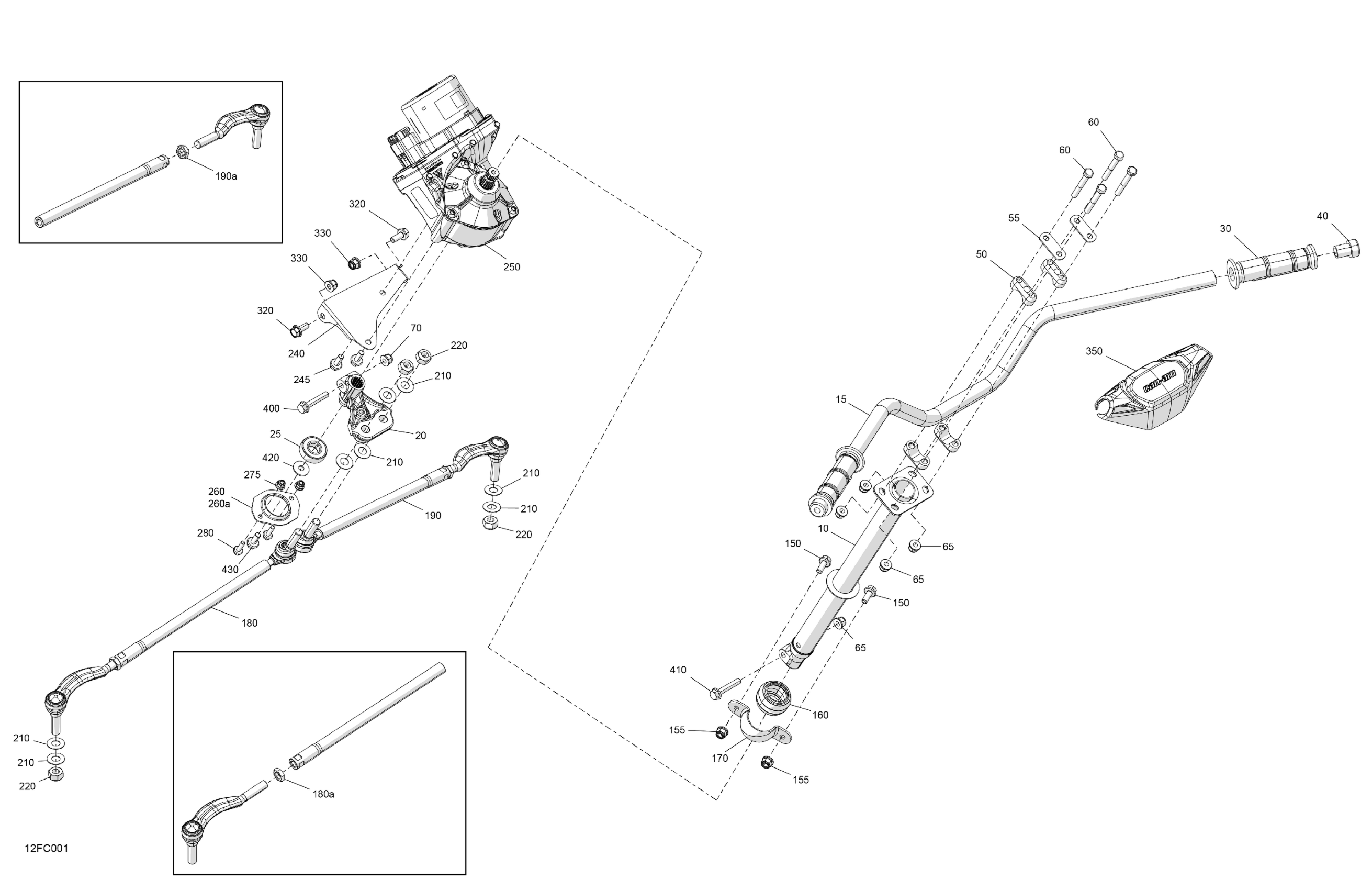

Can-Am Outlander PRO XU HD7 - CE, 2023 Mechanic - Steering Diagram

#

Description
Price

10

Steering Column

709402739

$114.99

15

Handlebar

709402551

$30.49

20

Pitman Arm

709402991

$51.99

25

Ball Bearing

709402499

$19.19

30

Handle Grip

709400493

$14.83

40

End Piece

709400449

$8.49

50

Steering Support

709401799

$22.49

55

Stiffner

709400509

$4.69

60

Hex. Screw M8 X 60

207086046

$2.85

65

Hex. Elastic Flange Nut M8

233281416

$1.48

70

Hex. Flange Elastic Nut M10

233201436

$2.11

150

Hex. Flange Screw M8 X 20

207682044

$1.15

155

Hex. Flange Elastic Nut M8

233281414

$1.47

160

Spherical Bushing

709402169

$7.65

170

Upper Column Attachment

709400827

$1.09

180

LH Tie Rod | Includes 180 to 180a

709402826

$62.49

180a

Hex Jam Nut RH M12

715900835

$4.49

190

RH Tie Rod | Includes 190 to 190a

709402827

$62.49

190a

Hex Jam Nut RH M12

715900835

$4.49

210

Hardened Washer

706200281

$2.85

220

Hex. Elastic Hex. Nut M12

250100089

$0.46

240

Power Steering Support

709402182

$20.99

245

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

250

Power Steering Ass'y | Model With DPS

709403187

$1,218.99

260

Lower Bearing Support | Includes 260 to 260a

709402360

$11.99

260a

Lower Bearing Support

709402713

$43.99

275

Hex. Flange Elastic Nut M6

233261466

$2.00

280

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

320

Hex. Flange Screw M8 X 20

207682044

$1.15

330

Hex. Flange Elastic Nut M8

233281414

$1.47

350

Handlebar Trim

709402570

$24.49

400

Hex. Flange Screw M10 X 50, Scotch Grip

207505046

$7.41

410

Hex. Flange Screw M8 X 45 Scotch Grip

250001133

$3.72

420

Flat Washer 8 mm

234082410

$1.47

430

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69
