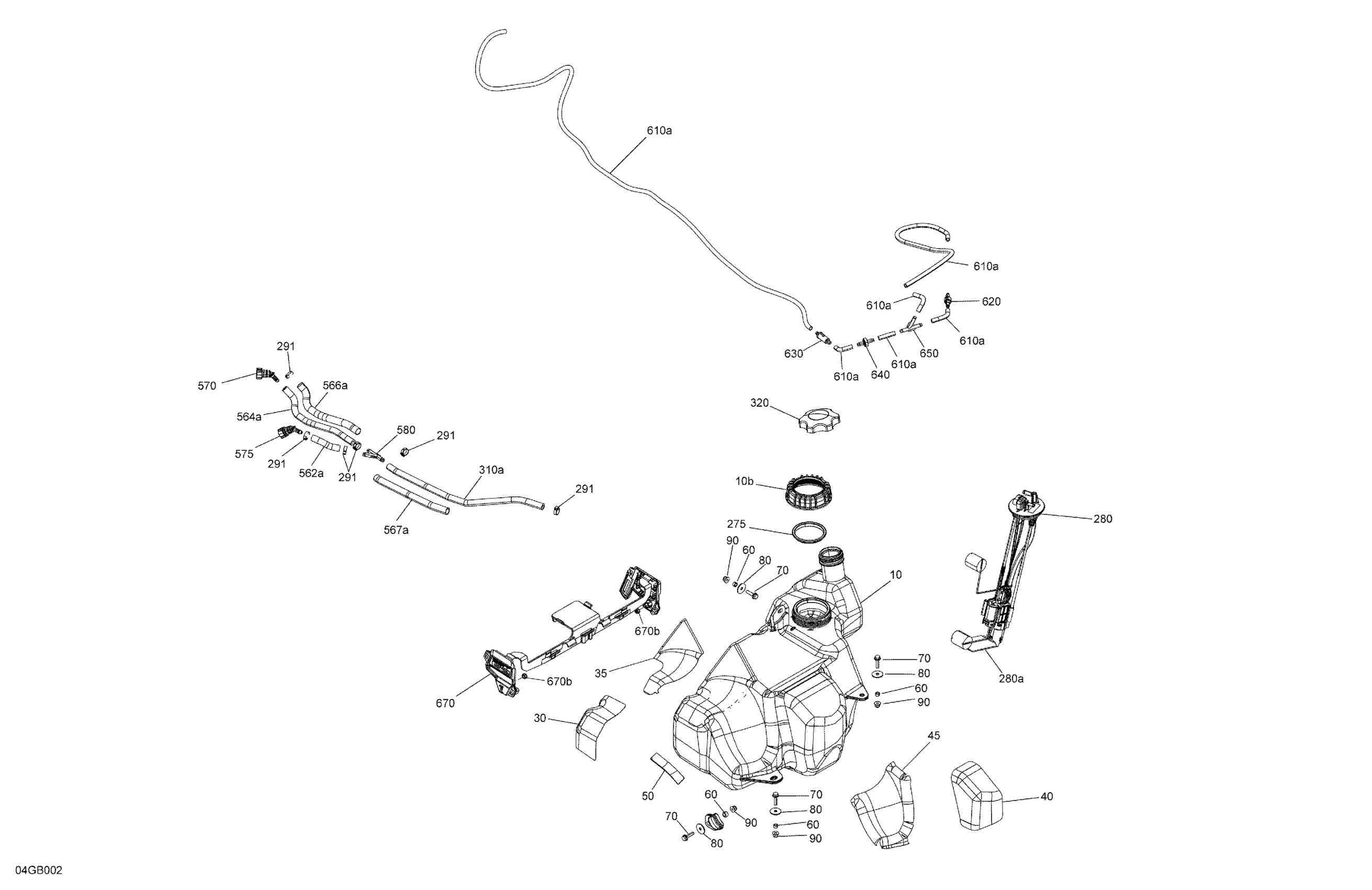

Can-Am Outlander MAX 570 EFI - STD - (2ENA) 2022 Engine - Fuel Diagram

#

Description
Price

10

Fuel Tank Ass'y | Includes 10 to 10b

709000843

$264.99

10b

Fuel Pump Module Nut

709000328

$13.75

30

Heat Reflective Sheet

709000381

$6.99

35

Heat Reflective Sheet

709000387

$5.09

40

Heat Reflective Sheet

709001071

$10.49

45

Heat Reflective Sheet

709000388

$6.39

50

Rubber Pad

293830172

$2.89

60

Bushing | DS 650 X

293900104

$5.50

70

Hex. Flange Screw M6 X 25

207662544

$0.64

80

Washer

224060251

$0.58

90

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

275

Seal

709000208

$14.99

280

Fuel Pump

709000461

$340.99

280a

Prefilter Fuel Pump Kit 125mm Long | Not shown

715900677

$79.49

291

Crimp Clamp, 15.3-706R

293650047

$3.29

310a

Was 709000163 Fuel Line

219704440

$28.99

320

Fuel Tank Cap

513033025

$24.49

562a

Was 709000163 Fuel Line

219704440

$28.99

564a

Was 709000163 Fuel Line

219704440

$28.99

566a

Tubing 16 Mm 1000Mm Long

219704408

$7.49

567a

Tubing 16 Mm 1000Mm Long

219704408

$7.49

570

Quick Fitting 45° Ass'y | Includes 34 to 35

709000627

$16.49

575

Quick Fitting 45° Ass'y | Includes 34 to 35

709000627

$16.49

580

Y-Fitting, 5/16''

293710136

$6.49

610a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

620

Check Valve

513033469

$31.99

630

Filter

709001120

$8.05

640

Check Valve

275500398

$10.99

650

Y-Fitting

293710059

$9.69

670

Hose Support Ass'y

709000359

$14.31

670b

Hex. Elastic Stop Nut M6

232561600

$1.15
