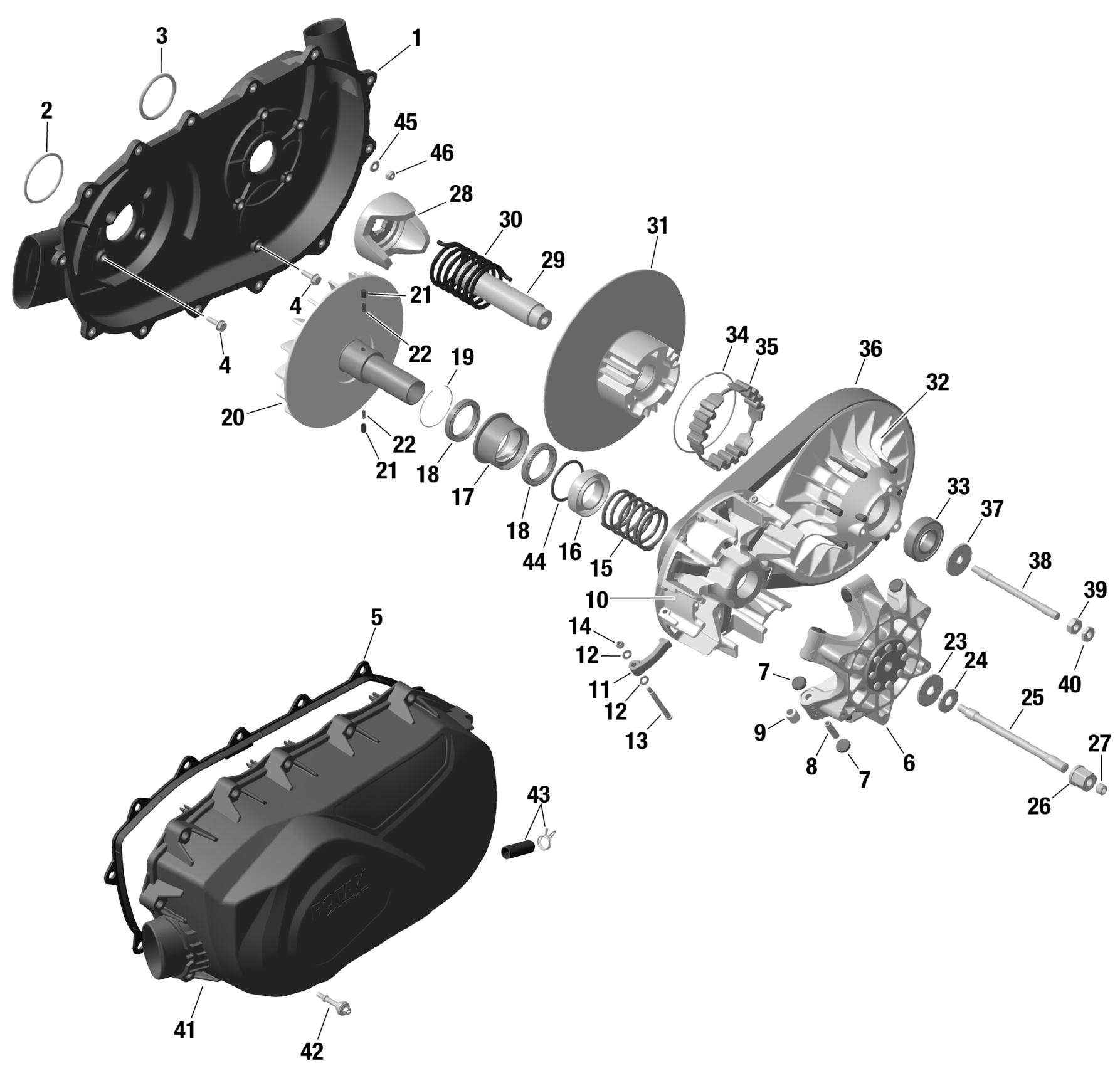

Can-Am Outlander MAX 1000R EFI - LTD - CE, 2023 ROTAX - CVT Diagram

#

Description
Price

1

CVT Air Guide

420612304

$172.36

2

O-Ring

420430408

$4.87

3

O-Ring

420631089

$4.87

4

Hex.Screw M6 X 20

420441311

$4.87

5

Gasket

420430126

$38.78

6

Governor Cup

420280664

$170.12

7

Slider Shoe Set

420281296

$41.01

8

Roller Axle

417223257

$6.37

9

Roller

417223767

$7.15

10

Outer Haft

420280467

$188.03

11

Lever Set Ass'y | Includes 11a to 14

420248682

$167.13

12

Not Available As Spare Parts

XXX

Unavailable

13

Not Available As Spare Parts

XXX

Unavailable

14

Not Available As Spare Parts

XXX

Unavailable

15

Compression Spring, Drive Pulley

420238617

$26.84

16

Seat Spring

420627578

$32.81

17

Drive Pulley Clutch

420257195

$109.24

18

Ball Bearing

420632377

$46.24

19

Retaining Ring

420245951

$5.39

20

Inner Half

420280374

$170.12

21

Spring Sleeve

420229577

$17.13

22

Spring

420239134

$2.90

23

Washer 40 MM

420427061

$24.99

24

Washer 30 MM

420427054

$24.60

25

Stud Screw 12 X 172

420441801

$68.99

26

Socket Set Screw

420242381

$19.37

27

Nut

420441811

$11.91

28

Cam

420280701

$142.51

29

Driven Pulley Shaft

420220914

$115.64

30

Compression Spring

420638040

$55.19

31

Inner Half Ass'y

420280786

$307.43

32

Outer Half Pulley Ass'y | Includes 27 to 32

420280178

$341.76

33

Ball Bearing

420932421

$26.09

34

Retaining Ring

420245911

$5.31

35

Torque Gear

420660124

$21.61

36

V-Belt

422280366

$167.13

37

Thrust Washer

420627594

$11.81

38

Stud Screw M10 X 136

420441900

$23.85

39

Hexagonal Nut M10

420242098

$1.99

40

Hexagonal Nut M10

420242403

$1.76

41

Variator Cover

420612316

$158.18

42

Hex Screw M6 X 30

420440568

$8.15

43

Drain Plug Kit

707001179

$8.93

44

Friction Washer

420460430

$12.37

45

Not Available As Spare Parts

XXX

Unavailable

46

Not Available As Spare Parts

XXX

Unavailable
