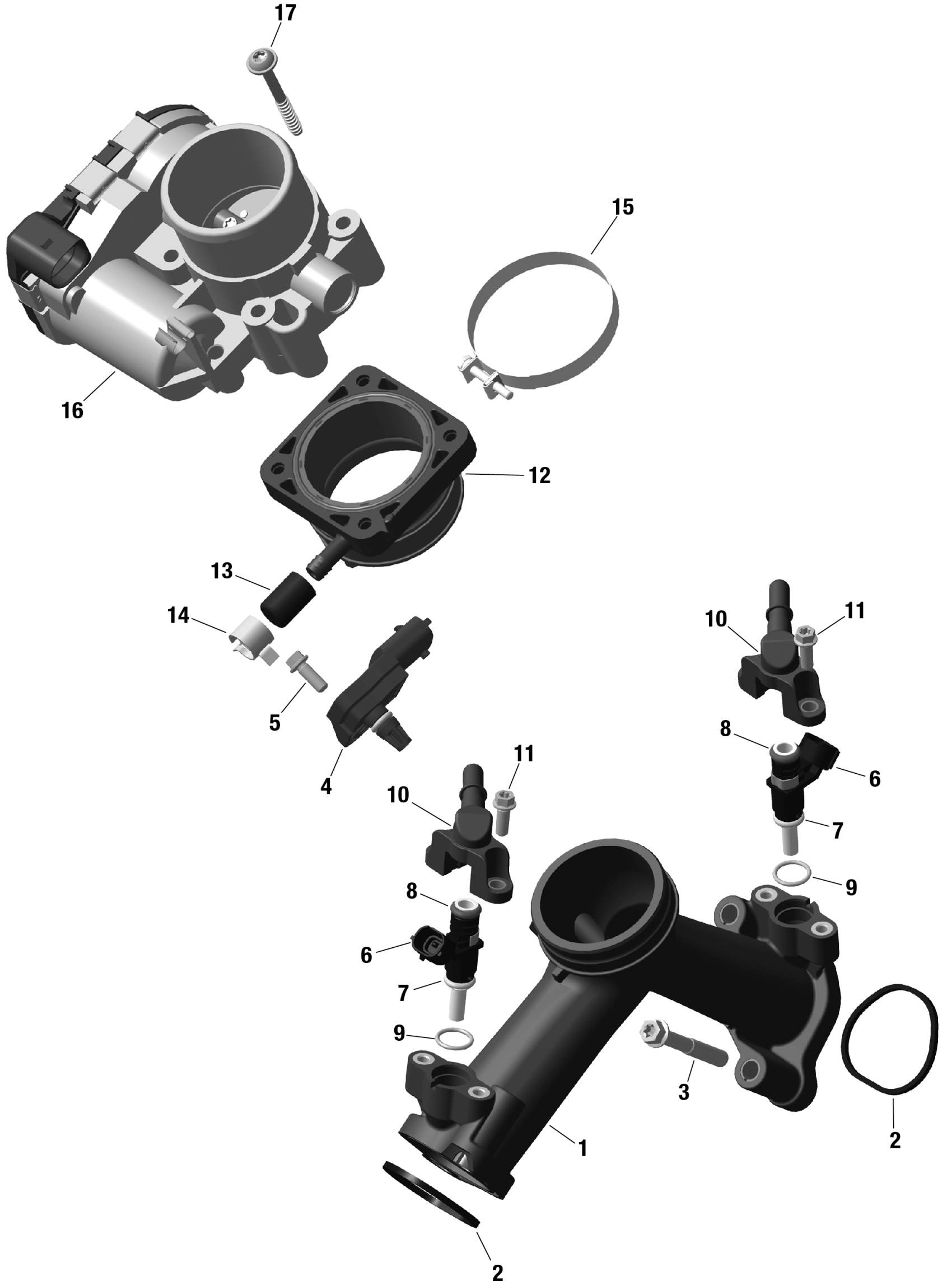

Can-Am Outlander MAX 1000R EFI - LTD - CE, 2023 ROTAX - Air Intake Manifold And Throttle Body Diagram

#

Description
Price

1

Air Intake Manifold

420667520

$73.99

2

Gasket

420630642

$5.39

3

Torx Flange Screw M8 X 55

420641213

$7.41

4

Pressure And Temperature Sensor

420874658

$119.99

5

Hex. Flange Screw M6 X 12

420440149

$2.11

6

Injection Valve Ass'y | Includes 18 to 20

420874887

$174.99

7

O-Ring

420431890

$7.49

8

O-Ring

420631220

$14.28

9

O-Ring

420631296

$0.76

10

Fuel Rail

420874901

$24.49

11

Torx Flange Screw M6 X 16

420440162

$3.17

12

Flange

420267052

$65.99

13

Closure Cap

420201911

$4.86

14

Spring Type Clamp 14

420853512

$4.55

15

Clamp

420251209

$8.57

16

Throttle Body Socket Ass'y

420892596

$466.49

17

Torx Flange Screw M6 X 50

420441588

$4.44
