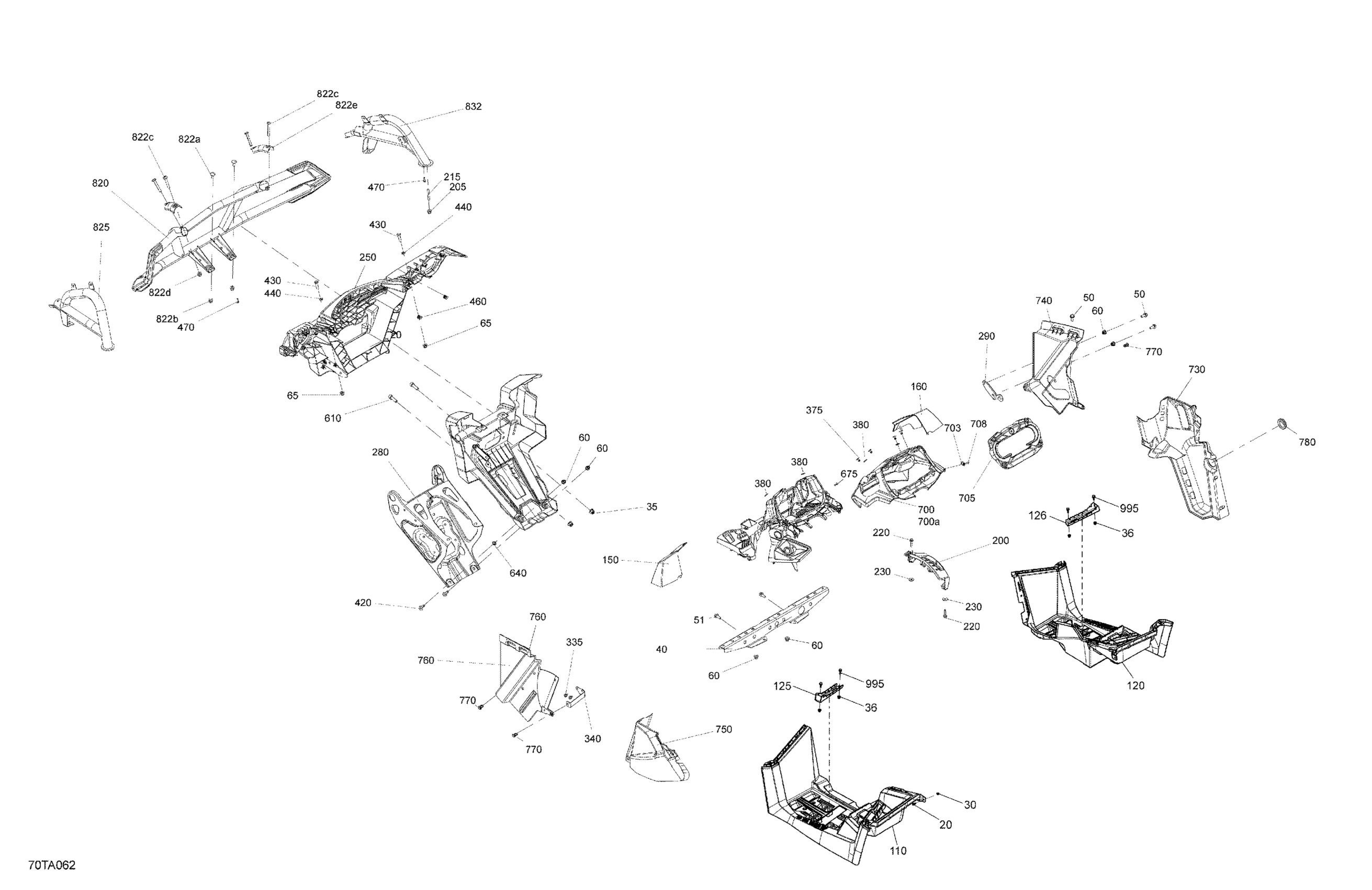

Can-Am Outlander 1000R EFI - XMR - NEO YELLOW - CE, 2021 Body - Front Section Diagram

#

Description
Price

20

Hex. Flange Screw M6 X 20

207662054

$1.01

30

Flange Elastic Nut M6

233261434

$4.44

35

Hex. Flange Elastic Nut M10

233201434

$2.09

36

Flange Elastic Nut M6

233261434

$4.44

40

Front Bumper Center Support

705006220

$88.99

50

Hex. Flange Screw M8 X 20

207682044

$1.15

51

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

60

Hex. Flange Elastic Nut M8

233281434

$2.11

65

Elastic Flange Nut M8

233281464

$1.01

110

LH Footboard

705005978

$184.99

120

RH Footboard

705005977

$184.99

125

LH Footrest

705004352

$30.99

126

RH Footrest

705005395

$36.99

150

LH Air Deflector

705006134

$26.99

160

RH Air Deflector

705006135

$24.99

200

Shifter Gate Ass'y

715007676

$26.99

205

Hex. Flange Elastic Nut M8

233281434

$2.11

215

Socket Set Screw M8 x 50

206285044

$4.65

220

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

230

Flat Washer

224061201

$1.37

250

Fascia

705012822

$119.99

280

Front Bumper Support

705016893

$349.99

290

Lower Fender Support

705004565

$6.89

335

Hex. Flange Screw M6 X 10

210261040

$1.48

340

LH Inner Fender Bracket

705007140

$22.49

375

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

380

Washer

517124300

$0.19

420

Torx Screw M8 X 30

250000886

$2.11

430

Hex. Cap Screw M8 X 30

207183054

$4.44

440

Stainless Steel Flat Washer 8 mm

234081670

$0.67

460

Edge Clip

517302785

$0.88

470

Hex. Flange Screw, Scotch Grip

207551634

$2.00

610

Socket Screw M10 x 30 | XT

205003044

$3.17

640

Ring

705004497

$5.19

675

Phillips Screw K40 X 16

250000723

$0.98

700

Gauge Support

705013983

$44.99

700a

Gauge Support

705013984

$19.99

703

Extruded Panel Nut M4 X 0.7

250100143

$8.49

705

Front Gauge Trim

705013985

$22.49

708

Torx Head Screw M4 X 16

250000797

$2.09

730

RH Wheel Arch Protector

705013925

$19.04

740

RH Front Inner Fender

705011463

$18.49

750

LH Wheel Arch Protector

705013924

$19.04

760

LH Front Wheel Arch Protector

705017001

$16.85

770

Tuflok Plastic Rivet

293150230

$1.47

780

Rubber Cover

293250242

$6.99

820

Neo Yellow, Front Bumper

705015368

$291.49

822a

Carriage Bolt, M8 X 20

207782044

$1.90

822b

Hex. Flange Elastic Nut M8

233281434

$2.11

822c

Torx Screw M8 X 55

250000535

$3.17

822d

Elastic Flange Nut M8

233281464

$1.01

822e

Néo Yellow, Upper Bracket

705015372

$47.99

825

Support_Radiator Lh B-450

705016598

$227.49

832

Support_Radiator Rh B-450

705016599

$227.49

995

Hex. Flange Screw M6 X 20

207662034

$2.11
