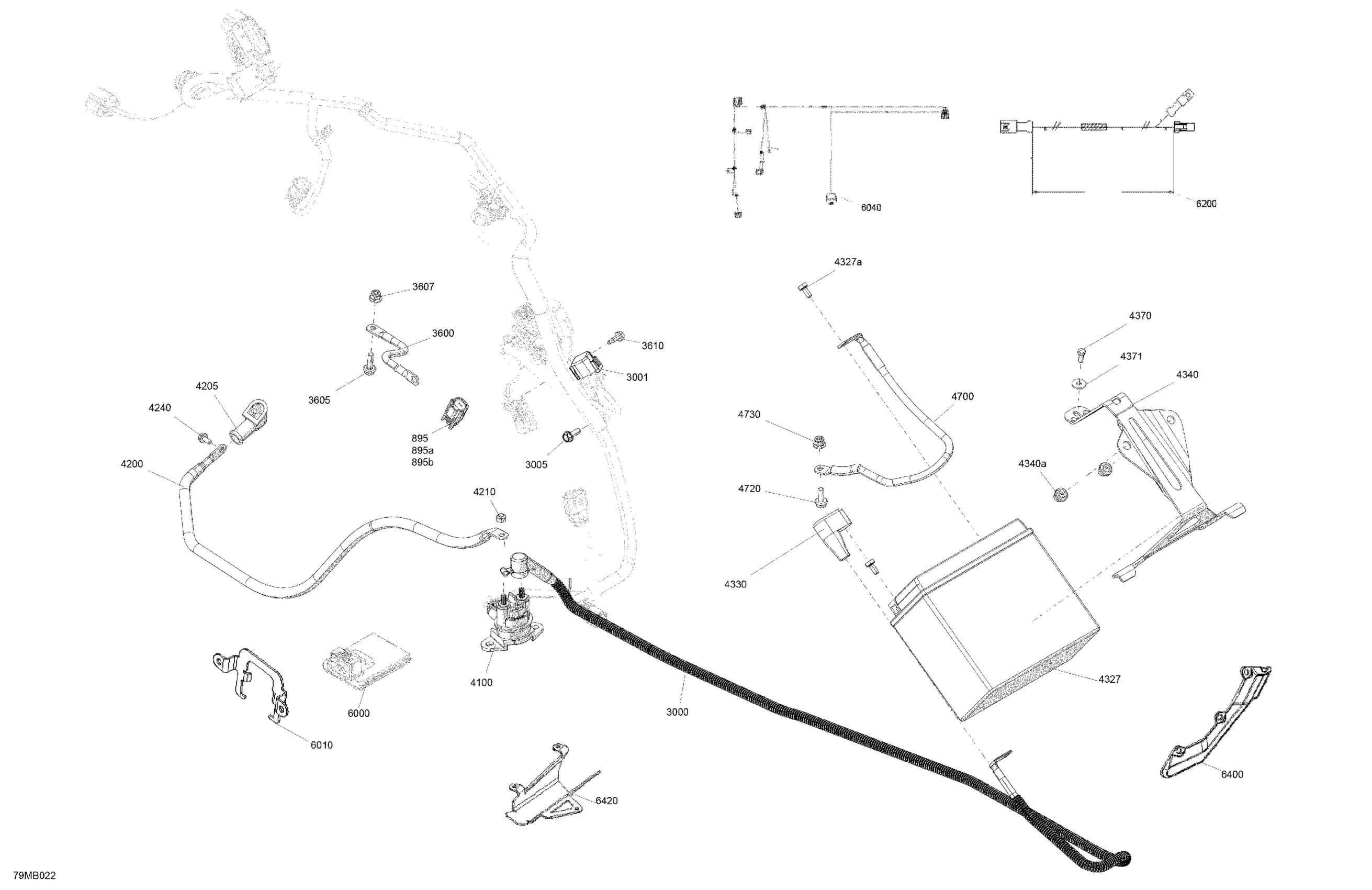

Ski-Doo MXZ 850 E-TEC - XRS with SAS - 2022 Electric - Lower Section Diagram

Description

Price

895

Connector Plug

515179172

$14.28

895a

Female Housing Connector 4 Pins W/O CPA

515178346

$14.28

895b

Sealing Cap

278002860

$1.79

2995

Hex. Flange Screw M6 X 12

210261250

$1.90

3000

Chassis Wiring Harness

515179170

$329.99

3001

Diagnostic Cap

515178435

$8.79

3005

Hex. Flange Screw M6 X 16

250001062

$1.57

3600

Ground Wire

515178248

$24.99

3605

Hex. Flange Screw M6 X 20

207662044

$2.00

3607

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

3610

Hex. Flange Screw M5 X 16

250000911

$0.85

4100

Starter Relay

278003012

$42.49

4200

Positive Cable

515178919

$29.99

4205

Protector Cap

710000495

$10.99

4210

Elastic Stop Nut M6

232561434

$1.99

4240

Hex. Flange Screw M5 X 10

207551044

$4.12

4327

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$164.99

4327a

Battery Bolt Kit

250000282

$7.29

4330

Protector Cap | STD

710001817

$11.12

4340

Battery Strip | Includes 4340 to 4340a

515177870

$19.99

4340a

Insert

293450275

$12.99

4370

Hex. Screw M5 X 12

207151244

$0.90

4371

Washer | DS 650 X

391301600

$0.48

4700

Ground Wire

515178155

$26.99

4720

Hex. Flange Screw M6 X 16

207661644

$0.74

4730

Elastic Flange Nut M6 X 1.0

233261416

$2.11

6000

Suspension Controle Module

515178849

$509.99

6010

Module Support

515179152

$35.99

6040

Suspension Wiring Harness

515179282

$229.99

6200

Rear Suspension Wiring Harness

515178738

$78.99

6400

RH Central Skid Plate

515178913

$25.99

6420

Rear Lower Skid Plate

515179146

$46.49
