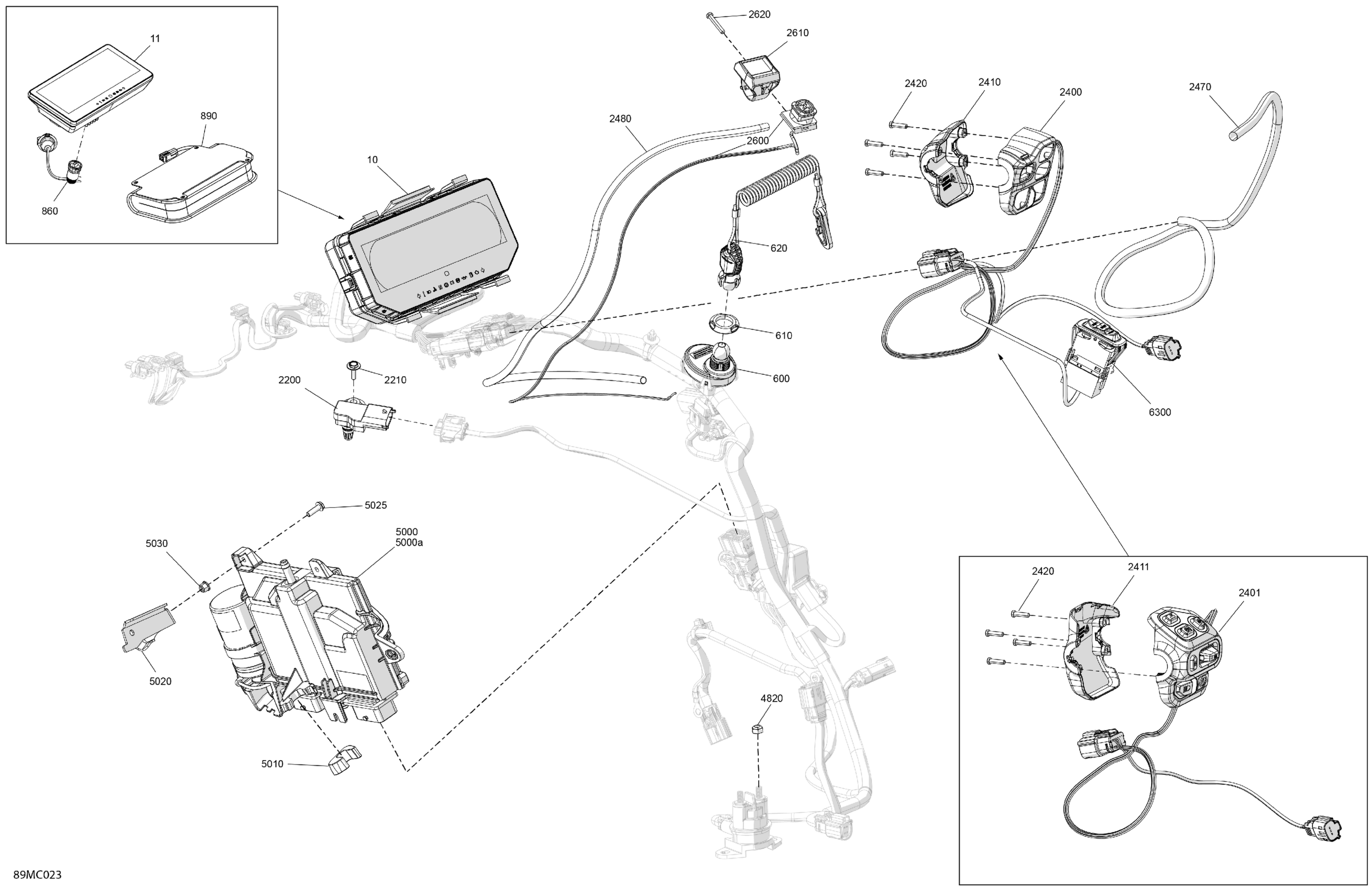

Ski-Doo MXZ 850 E-TEC - XRS SMART-SHOX - 2023 Electric - Upper Section Diagram

Description

Price

Multifunction Gauge Full Size Mono

515178227

$559.99

Multifunction Gauge 10

710009417

$2,049.99

600

Ignition Switch

710006855

$81.49

610

Safety Nut (DESS Switch)

278002963

$3.28

620

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$84.99

860

USB Wiring Harness Ass'y

515179248

$78.99

890

NEEDS DESCRIPTION | Includes 890 to 890a This part replaces 515179904.

860202888

$106.49

2200

Pressure And Temperature Sensor

707000995

$88.99

2210

Screw M4 X 16

250000725

$3.49

2400

LH Front Multifunction Switch | Model With Multigauge VIP Medium

515179213

$284.99

2401

LH Front Multifunction Switch | Model With Touch Screen

515179046

$284.99

2410

Switch Cover

515179065

$13.99

2411

Rear Housing

415130659

$28.99

2420

Torx Screw

250000671

$1.01

2470

Braided Sleeve

415130141

$55.99

2480

Braided Sleeve

415130141

$55.99

2600

Emergency Stop Switch

515178859

$78.49

2610

Clamp

515179182

$9.19

2620

Screw PT. Socket T10 K30 X 16

250001201

$3.39

4820

Elastic Stop Nut M6

232561434

$1.99

5000

ECM Module | Includes 5000a to 5000a2

515179352

$589.99

5000a

Capacitor

515177272

$90.99

5010

Rubber Stopper

515178430

$2.11

5020

Module Support

515178159

$4.44

5025

Hex. Flange Screw, Scotch Grip

207551634

$2.00

5030

Flange Elastic Nut M5

233251434

$2.00

6300

Suspension Switch

515179101

$24.49
