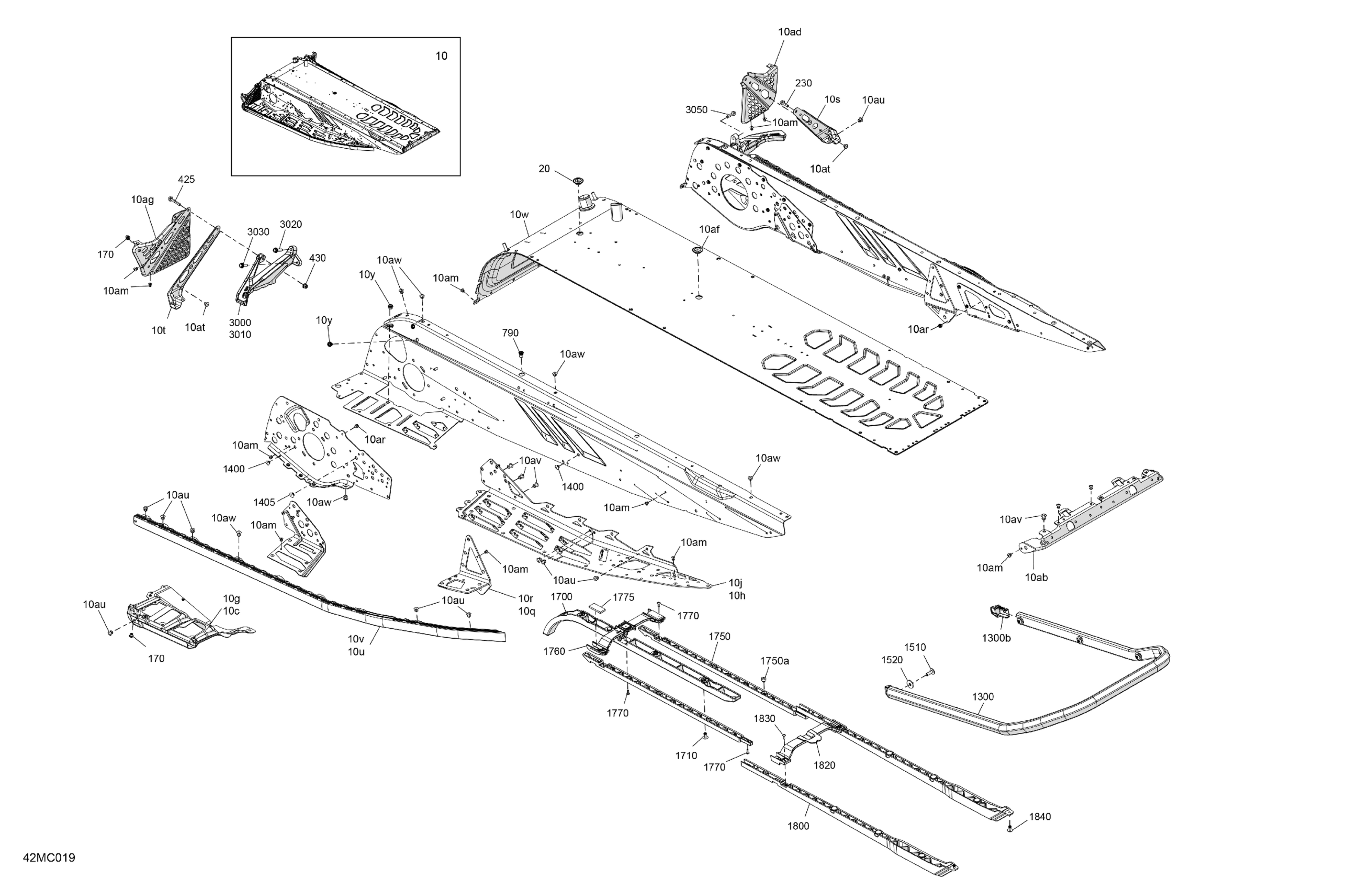

Ski-Doo 008 - MXZ 850 E-TEC - XRS SMART-SHOX - North America, 2023 06- Frame - System - Rear Section Diagram

#

Description
Price

10

Deep Black, Chassis Tunnel Module 129" | Model Deep Black

415130554

Unavailable

10

Platinum Silver, Chassis Tunnel Modulel 129 | Model Platinum Silver/Spartan Red

415130634

$3.00

10c

Deep Black, RH Footrest Reinforcement

518330738

$88.99

10g

Deep Black, LH Footrest Reinforcement

518331523

$88.99

10h

RH Footrest

518332921

$42.99

10j

LH Footrest

518332306

$42.99

10q

RH Rear Suspension Support

518334387

$94.99

10r

LH Rear Suspension Support

518334412

$94.99

10s

Stirrup Reinforcement

518334507

$21.99

10t

Deep Black, LH Chassis Reinforcement

518332924

$21.99

10u

RH Roller

518329023

$194.99

10v

LH Exterior Footrest Reinforcement

518332307

$194.99

10w

Radiator Tunnel 129 Ass'y

518334487

$739.99

10y

Insert Half Hex Body M6 x 1.0

250100199

$3.19

10ab

Rear Cap

518328990

$22.49

10ad

RH Footrest

518333006

$40.99

10af

Black, Plug

293730052

$9.19

10ag

LH Footrest

518333007

$40.99

10am

Rivet Avibulb 3/16

293150203

$2.09

10ar

Henrob Rivet

293150245

$1.69

10at

Rivet Ornit 6,5 X 10.5

293150264

$2.40

10au

Rivet Ornit 6,5 X 12.5

293150265

$2.40

10av

Rivet Ornit 6,5 X 16.5

293150267

$2.40

10aw

Ornit Rivet 6,5 X 14.5

293150266

$2.40

20

Black, Plug

293730052

$9.19

170

Insert M5 - 0.8

293450267

$4.59

230

Hex. Flange Screw M6 X 20

207562056

$2.11

425

Hex. Flange Screw M6 x 35

207663546

$1.00

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

790

Insert

293450278

$4.49

1300

Rear Bumper | Includes 1300 to 1300b

518328745

$111.99

1300b

Cap

520001612

$10.99

1400

Black, Dart 8 mm

293730047

$2.21

1405

Black, Dart 10 mm

293730060

$4.55

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

1520

Flat Washer

224061201

$1.37

1700

Front Protector

518329982

$18.49

1710

Pop Rivet 3/16”

293150108

$1.19

1750

Rear Protector | Model With Track Ice Ripper XT 1.5in

518329989

$10.13

1750a

Rubber Bumper

293830005

$8.09

1760

Front Protective Structure

518334162

$3.69

1770

Torx Truss PT K40 x 12

250001131

$2.11

1775

Gasket

705002447

$3.59

1800

Rear Protector

518329979

$9.23

1820

Central Protective Structure

518333936

$3.69

1830

Torx Truss PT K40 x 12

250001131

$2.11

1840

Pop Rivet 3/16”

293150108

$1.19

3000

Black Toe-hold

518330358

$24.99

3010

Toe Hold

518329134

$18.99

3020

Hex. Flange Screw M6 X 25

250000793

$2.11

3030

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

3050

Hex Screw Forming M6 x 25

250001124

$2.40
