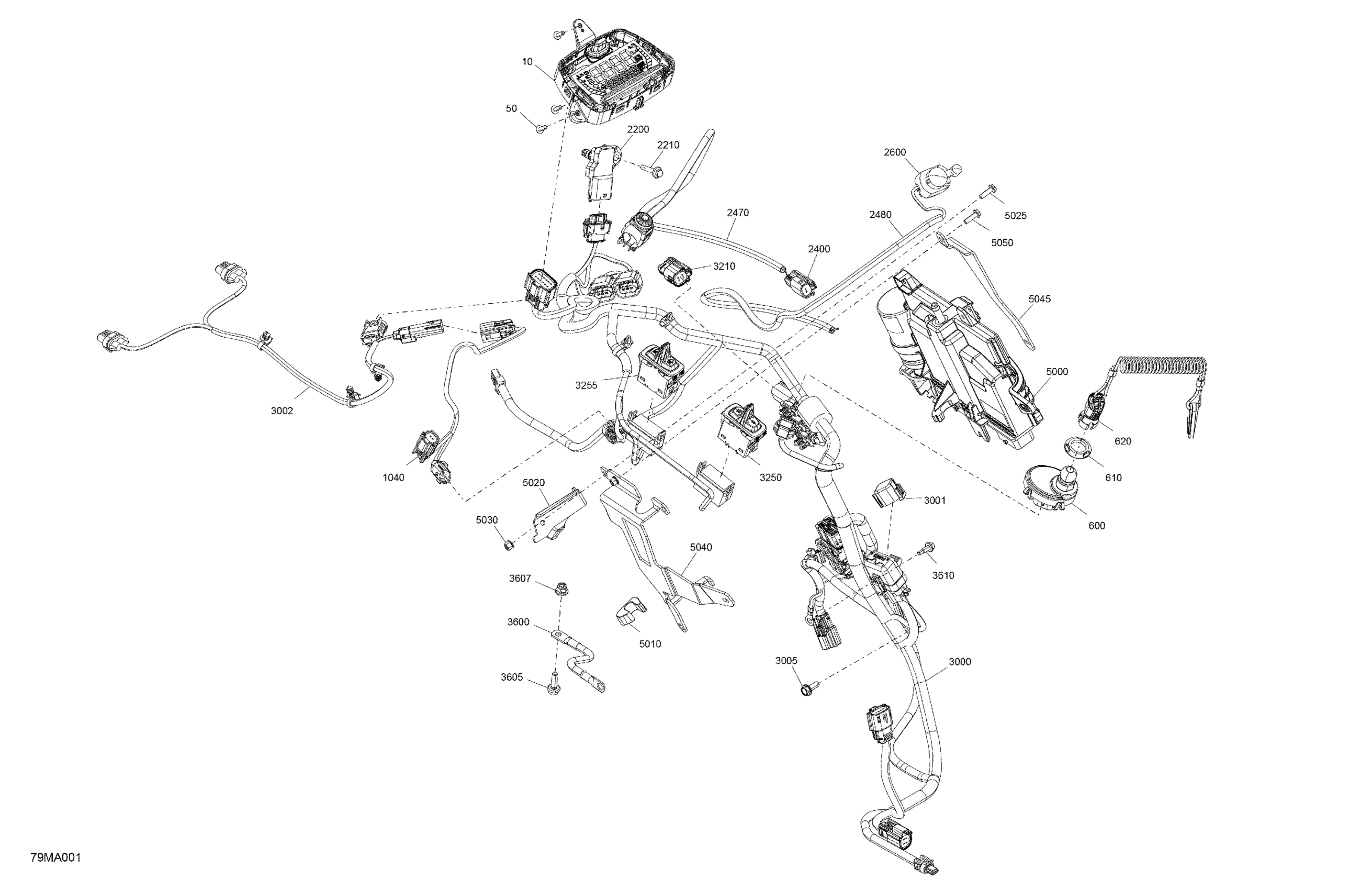

Ski-Doo MXZ 600RS - 2021 Electric - System Diagram

#

Description
Price

10

Multifunction Gauge Compact Mono

515178810

$569.99

50

Torx Truss PT K40 x 12

250001131

$2.11

600

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

610

Safety Nut (DESS Switch)

278002963

$3.28

620

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$84.99

1040

Harness Extension

515178153

$11.65

2200

Pressure And Temperature Sensor

707000995

$88.99

2210

Hex. Flange Screw M5 X 25

207552544

$5.39

2400

Control Button

515178657

$72.99

2470

Braided Sleeve

415130141

$55.99

2480

Braided Sleeve

415130141

$55.99

2600

Emergency Stop Switch

515178300

$63.49

3000

Chassis Wiring Harness

515178550

$309.99

3001

Diagnostic Cap

515178435

$8.79

3002

Headlight Wiring Harness

515178646

$38.99

3005

Hex. Flange Screw M6 X 16

250001062

$1.57

3210

4 Circuits Female Housing

515178177

$12.18

3250

Switch Rocker Hand Warmer

515178462

$20.49

3255

Switch Rocker Headlignt

515178463

$20.49

3600

Ground Wire

515178248

$24.99

3605

Hex. Flange Screw M6 X 20

207662044

$2.00

3607

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

3610

Hex. Flange Screw M5 X 16

250000911

$0.85

5000

ECM Module | Includes 5000a to 5000a2

515179352

$589.99

5010

Rubber Stopper

515178430

$2.11

5020

Module Support

515178801

$12.49

5025

Hex. Flange Screw, Scotch Grip

207551634

$2.00

5030

Flange Elastic Nut M5

233251434

$2.00

5040

Module Support

515178951

$59.99

5045

Module Support

515178952

$59.99

5050

Hex. Flange Screw, Scotch Grip

207551634

$2.00
