Description

Price

400

RH Console

517306759

$35.99

410

Torx Truss M5 X 20

250000586

$4.44

420

Panel Nut M5 X 0.8

250000958

$4.23

430

Rope Guide

517306315

$5.72

440

Hex. Flange Screw M6 X 12

210261250

$1.90

1000a

Deep Black, RH Panel

517306871

$264.99

1000b

RH Rear Latch

517305773

$18.49

1000c

RH Front Latch

517305979

$16.79

1000d

Screw M4 X 16

250000725

$3.49

1000e

RH Hook

517306311

$12.99

1000f

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1000g

Washer

517124300

$0.19

1080

Rubber Sheet

517306262

$30.99

1090

RH Rear Panel Foam

517306480

$11.99

1200a

LH Panel

517306985

$189.99

1200b

LH Rear Latch

517305774

$18.49

1200c

LH Front Latch

517305980

$18.49

1200d

Screw M4 X 16

250000725

$3.49

1200e

LH Hook

517306312

$12.99

1200f

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1200g

Washer

517124300

$0.19

1280

LH Rear Panel Foam

517306479

$11.99

1290

Foam

517306594

$11.99

1300

Rear Stud

517305985

$15.36

1310

Front Stud

517305988

$16.18

1320

Screw M4 X 16

250000725

$3.49

1400

RH Lower Latch

517306309

$18.99

1410

Torx Screw M5 X 25

250000762

$2.11

1420

Washer

250200140

$1.01

1430

Hex. Flange Nut M5

233151414

$0.55

1500

LH Lower Latch

517306310

$18.99

1510

Torx Screw M5 X 25

250000762

$2.11

1520

Washer

250200140

$1.01

1530

Hex. Flange Nut M5

233151414

$0.55

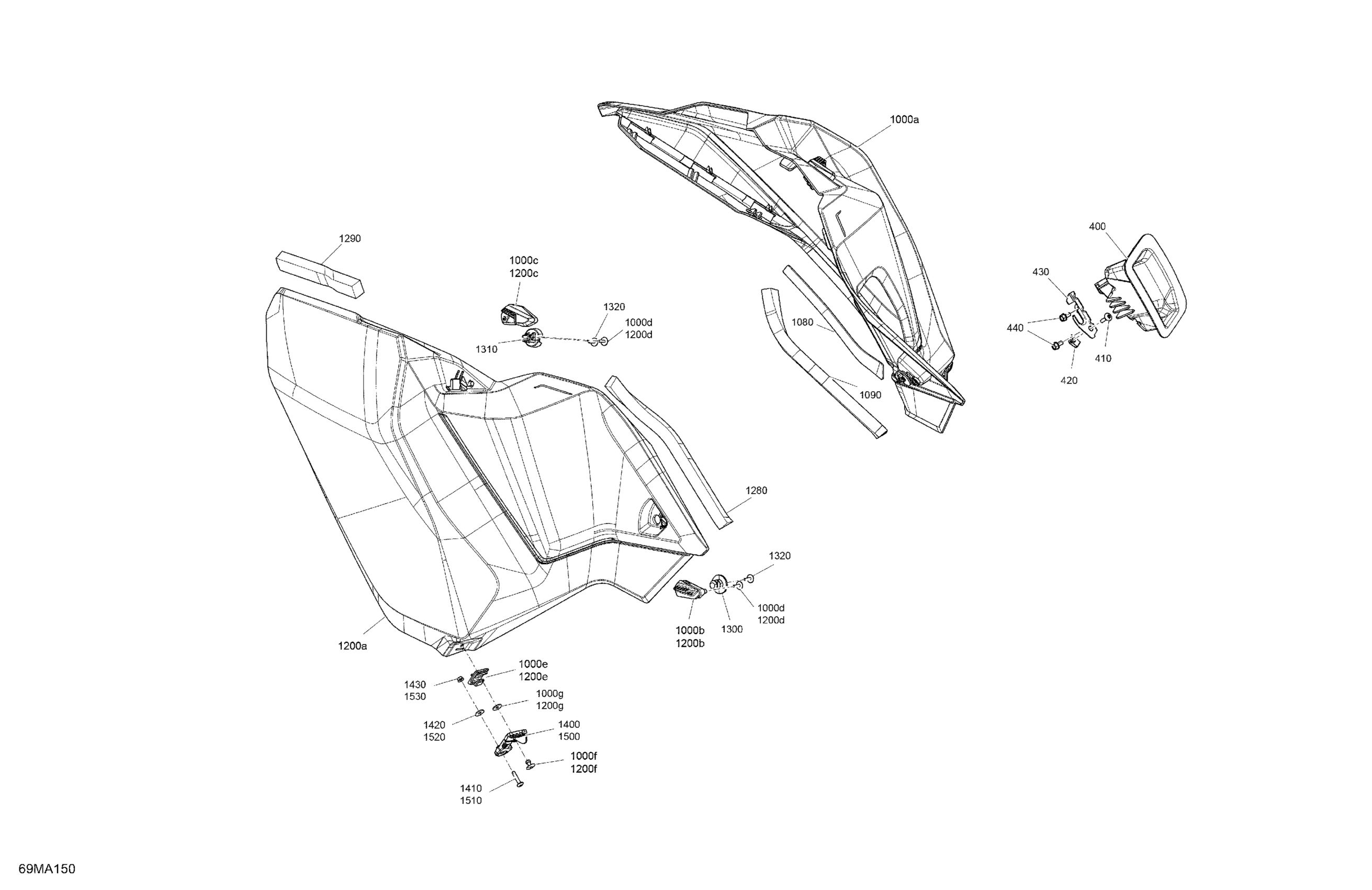

Ski-Doo MXZ 600RS - 2021 Body - Side Panels Diagram

RH Console

Torx Truss M5 X 20

Panel Nut M5 X 0.8

Rope Guide

Hex. Flange Screw M6 X 12

Deep Black, RH Panel

RH Rear Latch

RH Front Latch

Screw M4 X 16

RH Hook

Pop Rivet 3/16" | DS 650 X

Washer

Rubber Sheet

RH Rear Panel Foam

LH Panel

LH Rear Latch

LH Front Latch

Screw M4 X 16

LH Hook

Pop Rivet 3/16" | DS 650 X

Washer

LH Rear Panel Foam

Foam

Rear Stud

Front Stud

Screw M4 X 16

RH Lower Latch

Torx Screw M5 X 25

Washer

Hex. Flange Nut M5

LH Lower Latch

Torx Screw M5 X 25

Washer

Hex. Flange Nut M5
