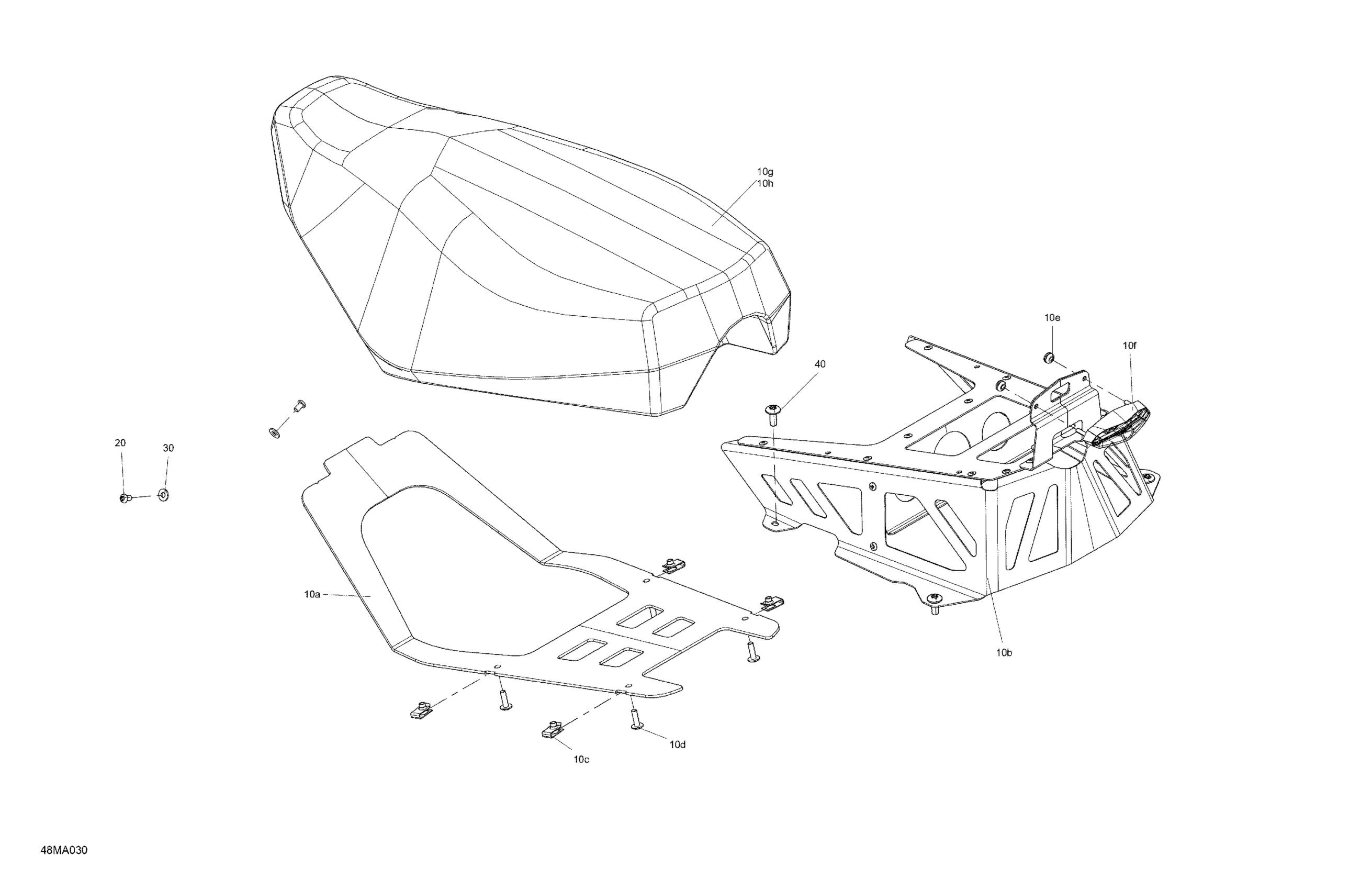

Ski-Doo MXZ 600RS - 2021 Body - Seat - Racing Sled Diagram

Description

Price

10a

Seat Base

510006984

$268.63

10b

Seat Base

510007189

$258.93

10b1

Panel Nut M6 X 1.0

250100198

$1.99

10b2

Torx Screw M6 X 20

250000722

$1.54

10c

Panel Nut M6 X 1.0

250100198

$1.99

10d

Torx Screw M6 X 20

250000722

$1.54

10e

Elastic Flange Nut M5

233251494

$2.00

10f

Tail Light

520002636

$100.72

10g

Seat Foam

510006990

$143.25

10h

SEAT COVER - Call your local BRP dealership

510007191

Unavailable

10j

Washer M5

250200025

$0.70

Torx Screw Button Head M6X10

250001158

$1.46

Flat Washer

250200039

$0.70

Torx Head Screw M6 X 16

250000717

$2.00
