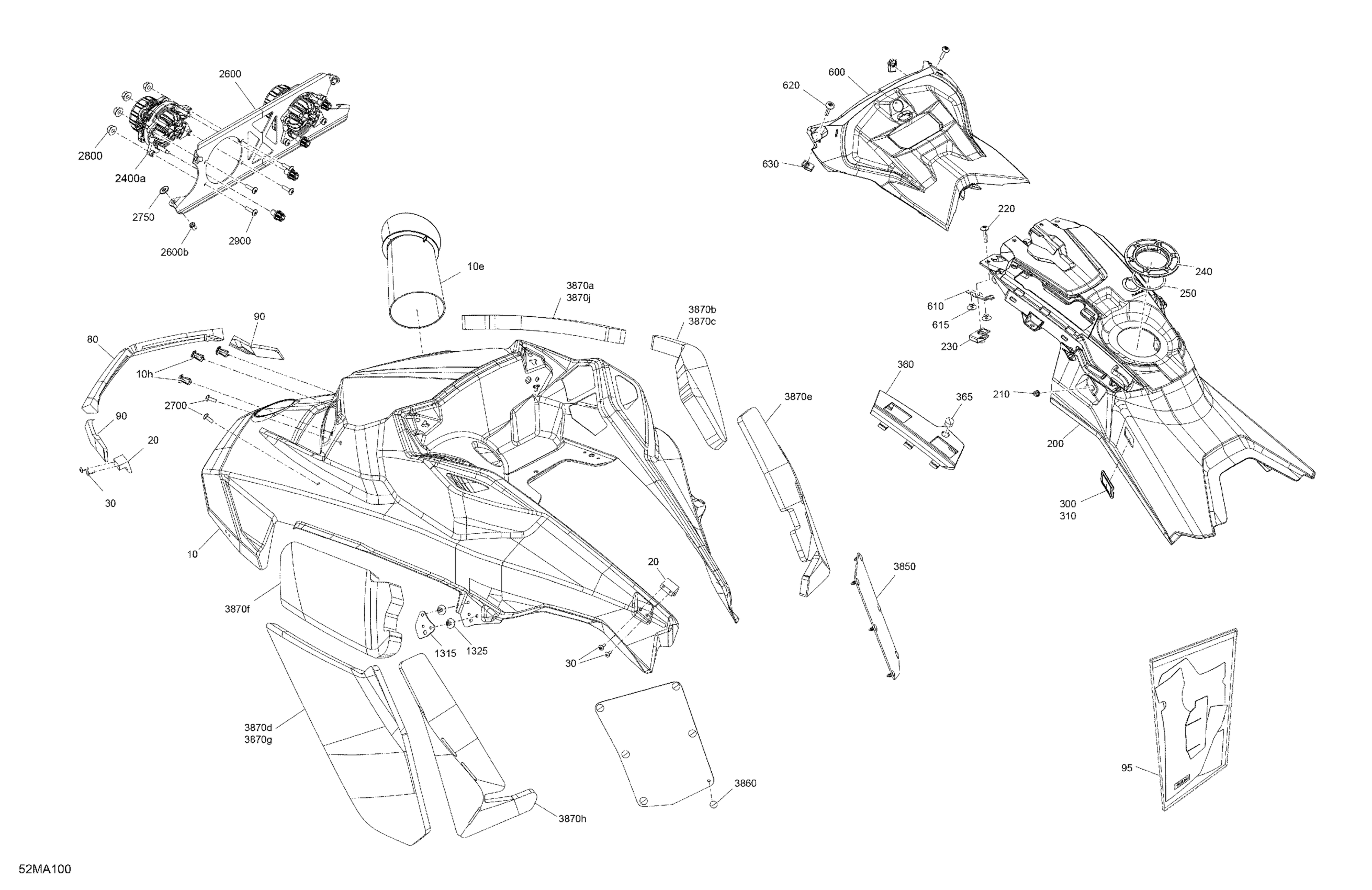

Ski-Doo MXZ 600RS - 2021 Body - Hood Diagram

#

Description
Price

10

Hood | Included 10 to 10h

517307416

$529.99

10e

Admission Tube

508000949

$14.99

10h

Tuflok Plastic Rivet

293150230

$1.47

20

Hook

517307050

$43.99

30

Torx Truss PT K40 x 12

250001131

$2.11

80

Front Hood Foam

517306592

$13.49

90

Hood Foam

517306593

$13.49

95

Foil

517307074

$164.99

200

Rear Console

517307685

$189.99

210

Flange Elastic Nut M5

233251434

$2.00

220

Torx Screw M5 X 26

250000587

$4.44

230

Panel Nut M5 X 0.8

250000958

$4.23

240

Console Nut

517306602

$13.49

250

O-Ring

706002839

$1.01

300

RH Cap

517306587

$1.39

310

LH Cap

517306588

$1.39

360

LH Front Console

517306583

$31.99

365

Cap

572051500

$5.89

600

Indicator Support

517305782

$11.99

610

Hook

517306967

$9.59

615

Pop Rivet 3/16"

293150103

$0.55

620

Torx Screw M5 X 26

250000587

$4.44

630

Panel Nut M5 X 0.8

250000958

$4.23

1315

Plate

517306968

$14.49

1325

Pop Rivet 3/16"

293150103

$0.55

2400a

Headlight Kit

517307720

$569.99

2600

Bracket | Included 2600 to 2600b

517307035

$47.99

2600b

Insert M5 X 0.8

293450268

$2.09

2700

Torx Screw M5 X 14

250000742

$1.47

2750

Rubber Washer 5 mm

250200024

$2.19

2800

Hex. Flange Nut M5

233151414

$0.55

2900

Torx Screw M5 X 20

250000724

$1.69

3850

Panel Plate

517306595

$90.99

3860

Black, Dart

414644300

$0.98

3870a

LH Front Hood Foam

517305764

$14.99

3870b

RH Hood Foam

517306001

$13.49

3870c

LH Hood Foam

517306002

$13.49

3870d

RH Central Panel Foam

517306188

$29.99

3870e

RH Rear Panel Foam

517306586

$13.49

3870f

LH Front Panel Foam

517305769

$19.99

3870g

LH Central Panel Foam

517306189

$18.49

3870h

LH Rear Panel Foam

517305771

$13.49

3870j

RH Front Hood Foam

517305763

$13.49
