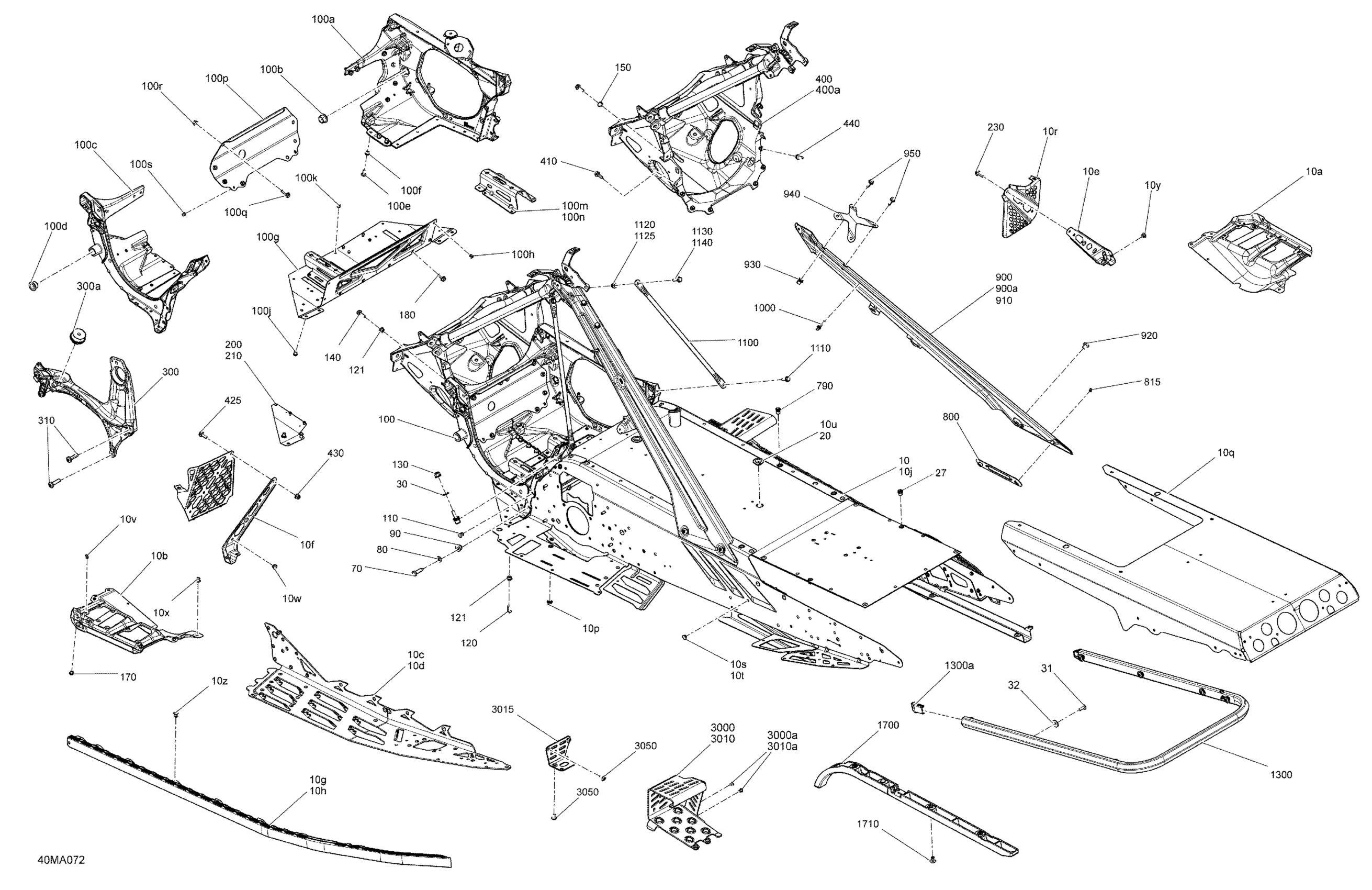

Ski-Doo MXZ 600RS - 2021 Frame - System Diagram

MODULE_CHASSIS TUNNEL 137 B-160 - Call your local BRP dealership | Included 10 to 10av

415130499

Unavailable

Deep Black, RH Footrest Reinforcement

518330738

$82.28

Deep Black, LH Footrest Reinforcement

518331523

$82.28

RH Footrest

518329010

$41.51

LH Footrest

518329011

$41.51

Stirrup Reinforcement

518331253

$18.43

Deep Black, LH Chasssis Reinforcement

518331560

$18.43

RH Roller

518329023

$180.74

LH Roller

518329024

$180.74

Radiator Tunnel Ass'y

518334033

$689.20

Insert Half Hex Body M6 x 1.0

250100199

$2.54

Rear Tunnel 137

518334039

$199.97

RH Footrest

518328460

$38.43

Black, Dart 8 mm

293730047

$2.14

Black, Dart 10 mm

293730060

$4.42

Black, Plug

293730052

$6.37

Rivet Avibulb 3/16

293150203

$0.29

Hemlock Rivet, 6.5 mm

293150096

$3.17

Hemlock Rivet, 6.5 mm

293150119

$4.00

Hemlock Rivet, 6.4 mm

293150174

$6.43

Ornit Rivet 6,5 X 14.5

293150266

$1.94

Black, Plug

293730052

$6.37

Insert

293450275

$9.89

Flat Washer 8 mm

234081410

$0.69

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

Flat Washer

224061201

$1.11

Hex Screw M8 X 30

250000942

$0.92

Flat Washer 8 mm

234081410

$0.69

Hex. Flange Elastic Nut M8

233281414

$1.14

Engine Chassis Module | Includes 100 to 100s

518334278

$666.89

RH Member Ass'y | Includes 100a to 100a3

518332687

$208.43

Leg Bushing

505072690

Unavailable

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$186.89

Leg Bushing

505072690

Unavailable

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.66

Collar Huck Magna-Grip 6.4

293150149

$0.37

Bottom Plate

518332716

$34.58

Rivet Avibulb 3/16

293150203

$0.29

Insert M5 X 0.8

293450268

$1.95

Rivet Avibulb 3/16

293150203

$0.29

RH Cross Link

518329814

Unavailable

LH Cross Link

518330641

Unavailable

Front Member

518330100

$56.12

Hex. Flange Screw M6 X 25

250000945

$3.61

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Rivet Avibulb 3/16

293150203

$0.29

Ornit Rivet 6,5 X 14.5

293150266

$1.94

Tork Screw M6 X 18

250000536

$2.06

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Hex. Flange Elastic Nut M8

233281414

$1.14

Hex. Flange Screw M6 X 20

207662046

$1.74

Elastic Flange Nut M6 X 1.0

233261416

$1.74

Insert M5 - 0.8

293450267

$4.22

Hex. Flange Screw M6 X 16

207661646

$1.00

LH Junction Reinforcement

518329493

$20.74

RH Junction Reinforcement

518329494

$20.74

Hex. Flange Screw M6 X 20

207562056

$1.74

Brace Ass'y | Includes 300 to 300b

518330166

$319.20

Rubber Mount

512061284

Unavailable

Screw-Pan HD.Torx M8X30

250001060

$0.65

Chassis Suspension Module

518333318

$792.28

Not Available As Spare Part - Friction Washer

Unavailable

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.00

Hex. Flange Screw M6 X 20

207562056

$1.74

Elastic Flange Nut M6 X 1.0

233261416

$1.74

Hex. Flange Screw M6 X 16

207661636

$1.06

Insert

293450278

$4.09

Member Fixation Plate

518329480

$10.03

Rivet Avibulb 3/16

293150203

$0.29

LH Rear Diagonal Cross Member Ass'y

518334034

$108.43

RH Rear Diagonal Cross Member

518330885

Unavailable

Deep Black, RH Rear Diag. Cross Member Ass'y

518334035

$108.43

Pan Head Torx Screw M8 X 12

250000887

$1.56

Insert

293450275

$9.89

Brace Rear Member

518329499

$14.42

Hex. Flange Screw M6 X 16

207661644

$0.61

Stud M5 X 20

250300629

$1.92

Upper Colomn Support

518329974

$20.74

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Elastic Flange Nut M6 X 1.0

233261416

$1.74

Hex. Flange Screw M6 X 25

207662544

$0.53

Hex. Flange Screw M6 X 20

207662044

$1.66

Rear Bumper | Includes 1300 to 1300b

518331570

$109.97

Cap

520001612

$8.62

Front Protector

518329982

$17.66

Pop Rivet 3/16”

293150108

$1.23

LH Footrest Ass'y | Includes 5000a to 5000a1a2

518331019

$207.66

Avex Rivet

390909100

$0.29

RH Footrest Ass'y | Includes 5000b to 5000b1a

518331020

$207.66

Avex Rivet

390909100

$0.29

Support

518329838

$30.74

Torx Truss Screw M6 X 12

250000767

$1.66
