Description

Price

10a

Runner

503195784

$309.99

10b

Black, Slider 146

503191499

$34.99

10c

Phillips Screw M6 X 25

208562531

$2.11

10d

Elastic Stop Nut M6

232561434

$1.99

10e

Runner Protector

503192299

$24.99

10f

Washer

250200140

$1.01

10g

Hex. Flange Screw M5 X 25

207652544

$0.50

10h

Flange Elastic Nut M5

233251434

$2.00

10j

Rail Reinforcement

503194559

$109.99

10k

Hex. Flange Screw M6 x 20

207662056

$1.01

300

Rubber Stopper

503190576

$12.99

305

Washer

503191273

$1.35

306

Pop Rivet 3/16

293150224

$1.01

310

Rail Stopper

503190263

$7.69

316

Torx Screw M5 X 14

250000742

$1.47

317

Washer M5

250200025

$0.74

610

Rear Axle

503193692

$139.99

620

Center Spacer

503156000

$12.01

630

Bushing

503193693

$17.39

660

Spacer

503193694

$38.99

670

Wheel 165" | Includes 670 to 670b

503194127

$51.99

670a

Ball Bearing

293350115

$12.11

670b

Retaining Ring

415129371

$12.01

730

Nut

503193695

$27.49

735

Nut

503193696

$25.99

800

Spring Support Kit

861805547

$10.49

810

Bushing

503196055

$12.65

830

Socket Screw M8 X 25

205082554

$2.11

840

Elastic Flange Nut M8

233281466

$1.01

900

Tensioner

503193697

$40.99

920

Socket Head Screw

205009087

$11.60

930

Elastic Locking Nut M10

233601466

$2.11

940

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

1000

Limit Axle

503192715

$83.99

1020

Washer

503192496

$0.77

1030

Socket Head Screw M10 X 35

205503554

$7.51

1090

Pivot Axle

503193435

$39.99

1110

Flat Washer

250200143

$3.17

1120

Bolt M10 X 251MM

503193227

$17.29

1130

Flange Elastic Nut M10

233201466

$3.17

1140

Axe

503195355

$48.99

1150

Washer

503192496

$0.77

1160

Socket Head Screw M10 X 35

205503554

$7.51

1500

Reinforcement

503194129

$104.99

1510

Washer

503192494

$3.17

1520

Hex. Cap Screw M8 X 30

207183054

$4.44

1530

Elastic Flange Nut M8

233281466

$1.01

1540

Limit Axle

503195790

$83.99

1545

Skid Bushing

503195791

$28.99

1550

Washer

503192496

$0.77

1560

Socket Head Screw M10 X 35

205503554

$7.51

1570

Limit Axle

503195790

$83.99

1575

Skid Bushing

503195791

$28.99

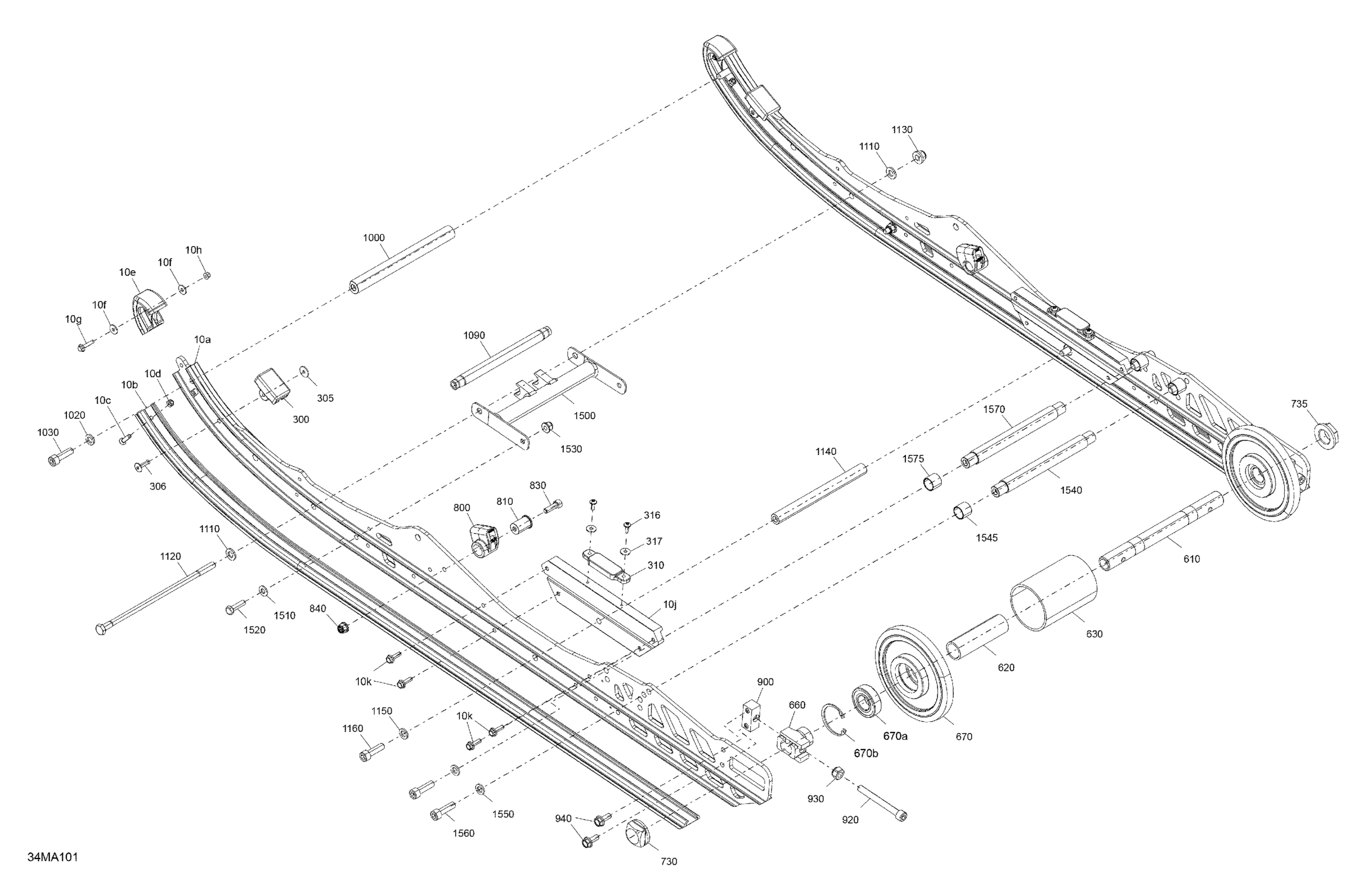

Ski-Doo 008 - MXZ 600RS - North America, 2021 05- Suspension - Rear - Lower Section Diagram

Runner

Black, Slider 146

Phillips Screw M6 X 25

Elastic Stop Nut M6

Runner Protector

Washer

Hex. Flange Screw M5 X 25

Flange Elastic Nut M5

Rail Reinforcement

Hex. Flange Screw M6 x 20

Rubber Stopper

Washer

Pop Rivet 3/16

Rail Stopper

Torx Screw M5 X 14

Washer M5

Rear Axle

Center Spacer

Bushing

Spacer

Wheel 165" | Includes 670 to 670b

Ball Bearing

Retaining Ring

Nut

Nut

Spring Support Kit

Bushing

Socket Screw M8 X 25

Elastic Flange Nut M8

Tensioner

Socket Head Screw

Elastic Locking Nut M10

Hex. Flange Screw M8 X 20, Scotch Grip

Limit Axle

Washer

Socket Head Screw M10 X 35

Pivot Axle

Flat Washer

Bolt M10 X 251MM

Flange Elastic Nut M10

Axe

Washer

Socket Head Screw M10 X 35

Reinforcement

Washer

Hex. Cap Screw M8 X 30

Elastic Flange Nut M8

Limit Axle

Skid Bushing

Washer

Socket Head Screw M10 X 35

Limit Axle

Skid Bushing
