Description

Price

10a

Black, Racing Ski

505074670

$180.99

10b

Retainer 17mm long

505071812

$5.95

10c

Handle

505074308

$35.99

10d

Retainer 23mm Long

505072133

$6.78

10e

Runner Kit

860201697

$139.99

10f

Hex. Flange Elastic Nut M8

233281414

$1.47

300

Deep Black, Ski Leg

505074649

$234.99

320

Leg Bushing

505072690

$12.49

400

RH Lower Arm

505074655

$204.99

410

LH Lower Arm

505074654

$204.99

420

Cushion

503191766

$5.93

430

Aluminum Bushing

505072401

$18.73

440

Wear Plate

505072634

$6.29

445

O-Ring

505072448

$2.32

450

Screw Hex. M10 X 70

250001024

$2.11

455

Screw Hex. M10 X 70

250001024

$2.11

480

Rear Reinforcement

505074424

$12.49

500

LH Upper Arm

505074899

$204.99

510

RH Upper Arm

505074900

$204.99

520

Bushing

505073018

$10.13

530

Sleeve

505072143

$9.00

540

Screw Hex. M10 X 60

250001023

$2.11

545

Hex. Flange Elastic Nut M10

250100165

$0.85

550

Screw Hex. M10 X 60

250001023

$2.11

555

Hex. Flange Elastic Nut M10

250100165

$0.85

660

Washer

503189564

$0.74

670

Washer

505072392

$4.76

680

Hex. Flange Elastic Nut M10

250100165

$0.85

685

Hex. Flange Elastic Nut M10

250100165

$0.85

690

O-Ring

505072448

$2.32

810

Cap

517302716

$4.69

1170

Hex Screw M10 X 1.5 X 55

207005554

$7.51

1200

Ball Joint

505074133

$53.99

1220

Hex. Elastic Hex. Nut M12

250100089

$0.46

1230

Washer

503192491

$4.54

1240

Hex Elastic Nut M12 X 1.25

232521464

$2.11

1400

Upper Ball Joint

505072257

$17.58

1410

Snap Ring

293370098

$3.17

1910

Washer

503192496

$0.77

1920

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

1930

Ski Stopper

505072594

$18.49

1940

Elastic Flange Nut M8

233281466

$1.01

1960

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

1970

Ski Axle

505073691

$14.22

1980

Hex. Elastic Hex. Nut M12

250100089

$0.46

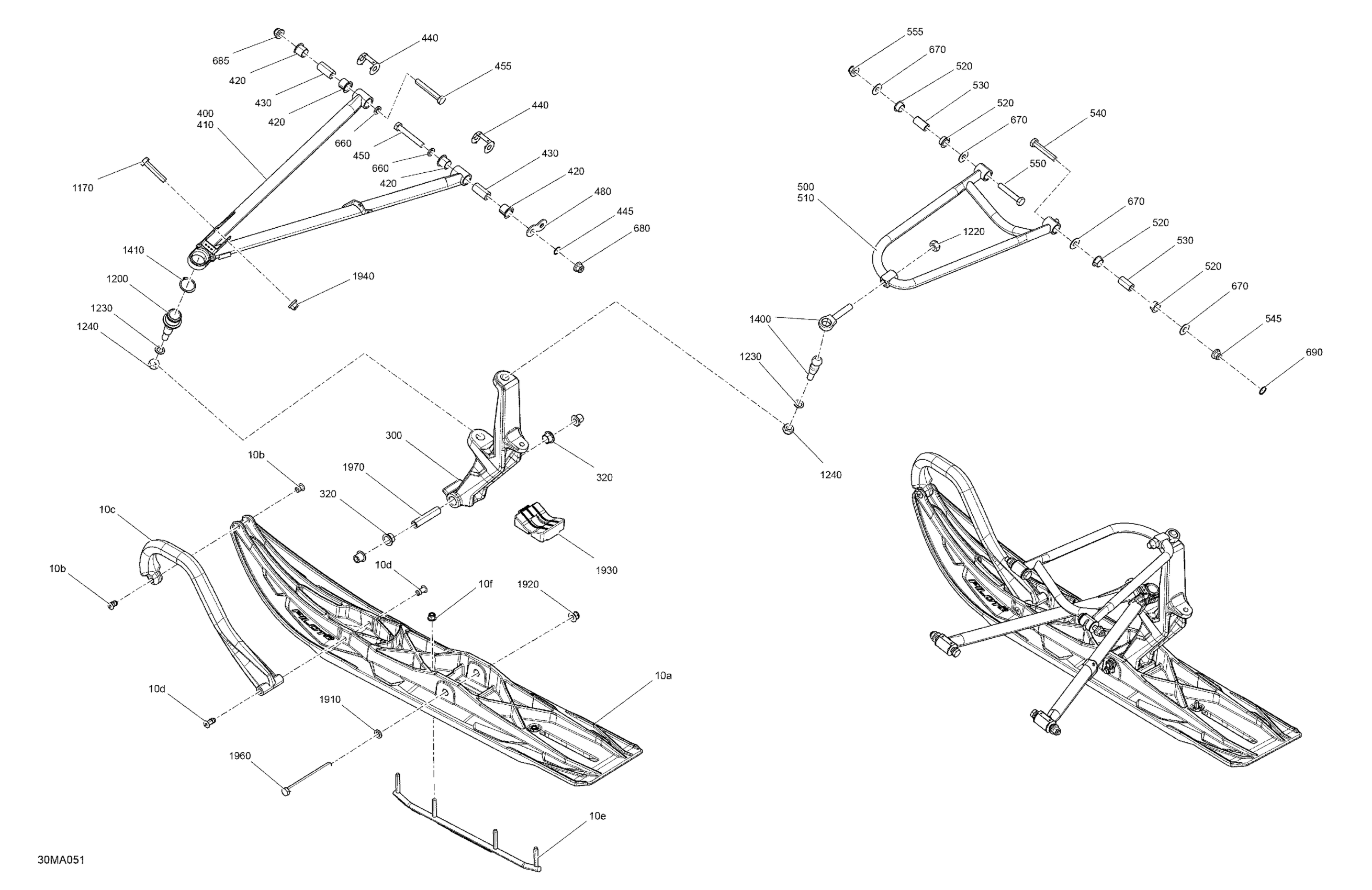

Ski-Doo 008 - MXZ 600RS - North America, 2021 05- Suspension - Front Diagram

Black, Racing Ski

Retainer 17mm long

Handle

Retainer 23mm Long

Runner Kit

Hex. Flange Elastic Nut M8

Deep Black, Ski Leg

Leg Bushing

RH Lower Arm

LH Lower Arm

Cushion

Aluminum Bushing

Wear Plate

O-Ring

Screw Hex. M10 X 70

Screw Hex. M10 X 70

Rear Reinforcement

LH Upper Arm

RH Upper Arm

Bushing

Sleeve

Screw Hex. M10 X 60

Hex. Flange Elastic Nut M10

Screw Hex. M10 X 60

Hex. Flange Elastic Nut M10

Washer

Washer

Hex. Flange Elastic Nut M10

Hex. Flange Elastic Nut M10

O-Ring

Cap

Hex Screw M10 X 1.5 X 55

Ball Joint

Hex. Elastic Hex. Nut M12

Washer

Hex Elastic Nut M12 X 1.25

Upper Ball Joint

Snap Ring

Washer

Hex. Flange Elastic M10 x 1.5

Ski Stopper

Elastic Flange Nut M8

Hex. Screw M10 X 130 | Model-RT STD

Ski Axle

Hex. Elastic Hex. Nut M12
