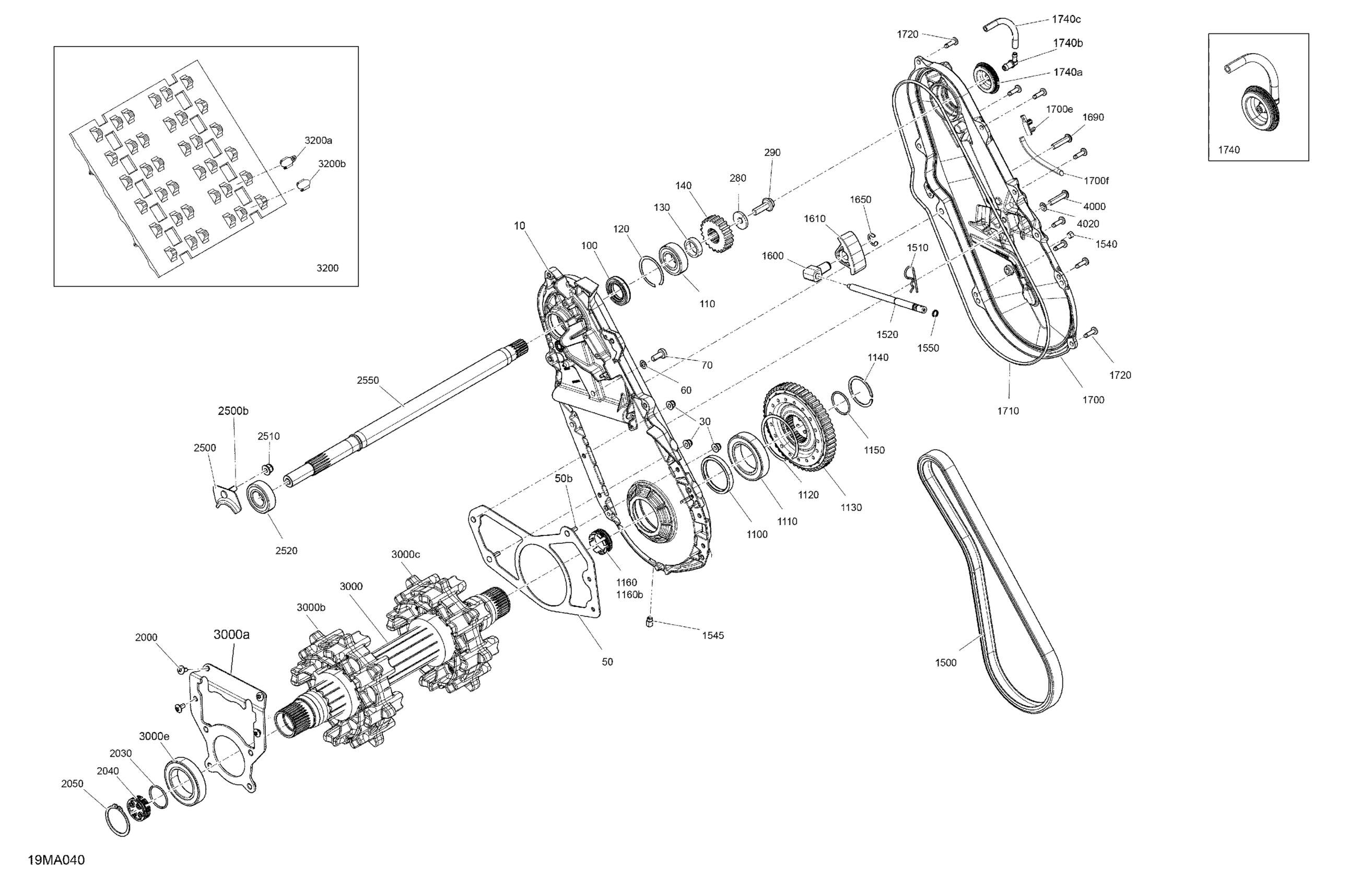

Ski-Doo 008 - MXZ 600RS - North America, 2021 04- Drive - System Diagram

#

Description
Price

10

Black, Chain Case Ass'y | Includes 10 to 10b

504153720

$90.99

10a

Kit Plate Ass'y

861805514

$78.99

10b

Flange Elastic Nut M6

233261434

$4.44

30

Flange Elastic Nut M6

233261434

$4.44

50

Plate Ass'y | Included 50 to 50b

504153698

$48.99

50b

Clinch Stud M6 X 20

250300027

$2.09

60

Washer

504082900

$2.64

70

Torx Screw M8 X 20, Scotch Grip

250000740

$2.53

100

Oil Seal

293200168

$14.49

110

Ball Bearing

293350115

$12.11

120

Circlip

504152576

$9.99

130

Shim

504152628

$10.99

140

Sprocket 22 Teeth Large

504091100

$70.99

280

Spring Washer M10

504152784

$7.65

290

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.96

1100

Oil Seal

293200159

$16.25

1110

Ball Bearing

293350059

$30.99

1120

Circlip

504152582

$9.99

1130

Sprocket , 51 Teeths

504153952

$759.99

1140

Circlip

293370134

$3.09

1150

O-Ring

293300201

$1.01

1160

Magnetic Cap | Includes 150c to 150c2

504154019

$26.49

1160b

Cap

504154043

$2.11

1500

Drive Chain, 110 Links

504153266

$185.49

1510

Hair Pin

414575600

$1.89

1520

Adjustment Screw

504153760

$24.99

1540

Hex. Countersunk Drain Plug

250500013

$7.89

1545

Magnetic Plug

504153704

$5.19

1550

O-Ring

293300202

$1.01

1600

Tensioner

504153559

$18.99

1610

Slider Chain

504153312

$65.99

1650

Circlip

293370105

$2.11

1690

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$2.00

1700

Deep Black, Chain Case Cover Ass'y | Includes 1700 to 1700f

504154066

$189.99

1700e

Clip Connector

515178223

$2.09

1700f

Braided Sleeve

415130141

$55.99

1710

O Ring

293300214

$13.16

1720

Hex. Flange Screw M6X20

250001153

$2.11

1740

Cap Ass'y | Included 1740 to 1740c

504152861

Unavailable

1740a

Cap

504152860

$20.49

1740b

Male Connector

414580700

$4.12

1740c

Polyurethane Hose 10000Mm Long

219704410

$56.99

2000

Torx Truss Screw M6 X 12

250000767

$2.00

2030

O-Ring

293300201

$1.01

2040

Cap

504154043

$2.11

2050

Circlip

504152572

$6.95

2500

Bearing Housing | Includes 2500 to 2500b

504153491

$35.99

2500b

Clinch Stud, M8 X 25

250300028

$4.44

2510

Hex. Flange Elastic Nut M8

233281414

$1.47

2520

Ball Bearing

293350115

$12.11

2550

Countershaft

504154153

$391.99

3000

Drive Axle Ass'y | Includes 3000 to 3000f

504154088

$412.99

3000a

Plate Retaining Ass'y

504154147

$49.99

3000b

Sold With Drive Axle

XXXX

Unavailable

3000c

Sold With Drive Axle

XXXX

Unavailable

3000e

Ball Bearing

293350059

$30.99

3200

Track 15 X 137 X 1,75 | Includes 3200 to 3200b

504154398

$1.00

3200a

Track Guide | Track Width 16''

415129528

$3.29

3200b

Cleat

504152651

$9.69

4000

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$2.00

4020

Washer

504082900

$2.64
