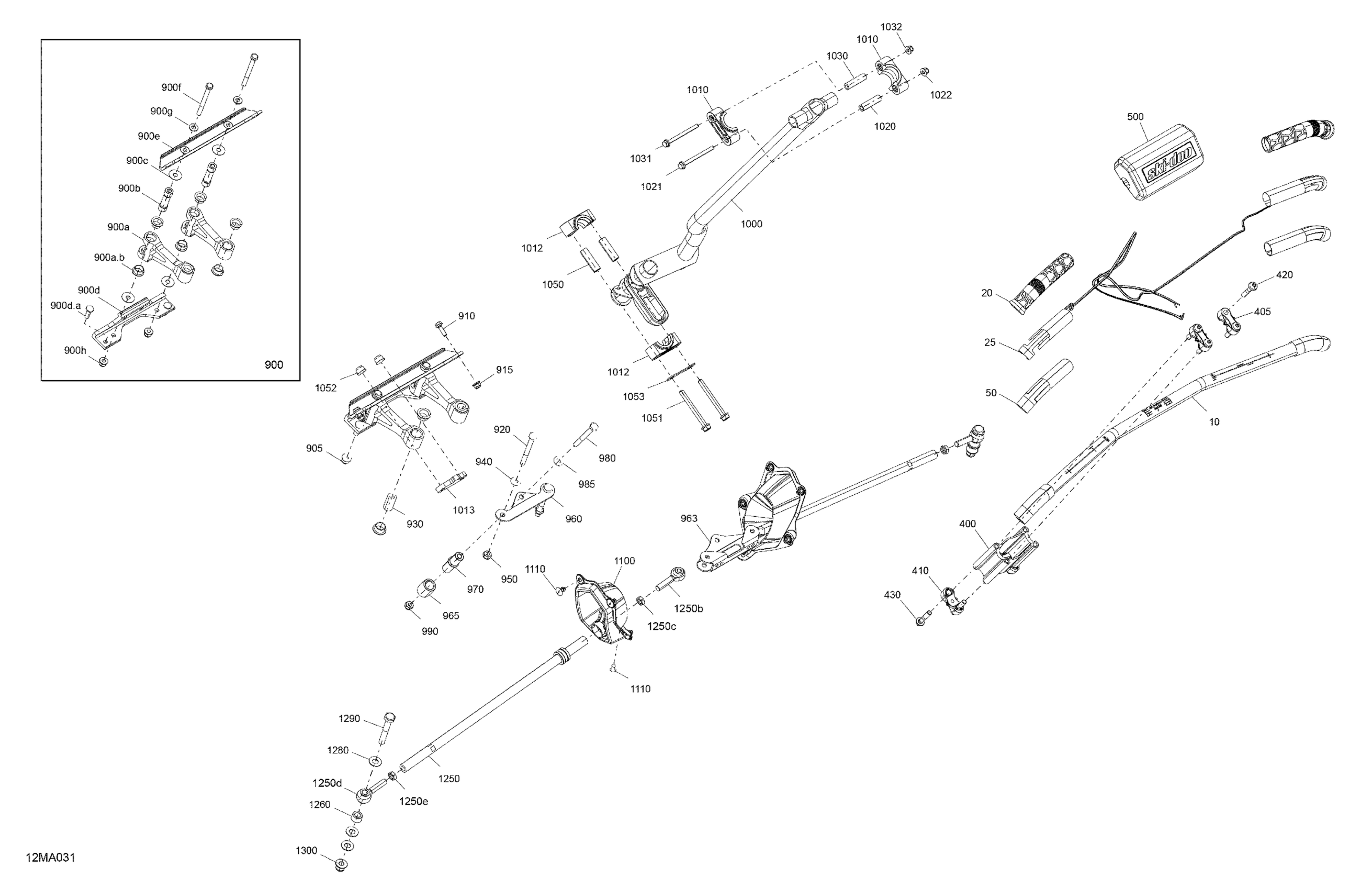

Ski-Doo MXZ 600RS - 2021 Mechanic - Steering Diagram

#

Description
Price

10

Sunburst Yellow, Handle Bar

506153256

$92.99

20

Grip 148mm

506152560

$16.12

25

Heated Film

506152856

$46.12

50

Thermal Insulation

506153176

$5.71

400

Riser

506153061

$88.43

405

Steering Support

506152894

$12.48

410

Steering Support

506152894

$12.48

420

Button Head Torx Screw M8 X 38

250000904

$1.74

430

Hex. Flange Screw M8 X 1.25 x 40

250000852

$1.74

500

Steering Pad Ass'y

506152994

$53.05

900

Steering Linkages Ass'y | Includes 900 to 900j

506152951

$214.58

900a

Swivel Arm | Includes 900a to 900a2

506152952

Unavailable

900a.b

Bushing

503194671

$5.71

900b

Swivel Pivot

506152792

$27.66

900c

Washer

503191800

$2.06

900d

Driving Shaft Support | Includes 900d to 900d2

506152949

Unavailable

900d.a

Clinch Stud

250300038

$4.00

900e

Support Plate

506152955

Unavailable

900f

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

900g

Washer

503192494

$3.11

900h

Elastic Flange Nut M8

233281466

$0.83

905

Hex. Elastic Flange Nut M8

233281416

$1.25

910

Hex. Flange Screw M6 X 20

207662044

$1.66

915

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

920

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

930

Swivel Pivot

506152957

$27.66

940

Washer

503192494

$3.11

950

Hex. Elastic Stop Nut M8

232581414

$0.47

960

Swivel Bar

506152958

$104.58

963

Swivel Bar

506152959

$104.58

965

Steering Lever Spacer

506152956

$16.89

970

Pivot

506152960

$27.66

980

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

985

Washer

503192494

$3.11

990

Hex. Elastic Stop Nut M8

232581414

$0.47

1000

Main Tube

506152944

$248.43

1010

Half-Housing

506152293

$10.23

1012

Half-housing

506152993

$10.23

1013

Spacer

506152961

$13.85

1020

Housing Bushing

506152297

$10.23

1021

Hex. Flange Screw M6 x 75

250001114

$3.61

1022

Elastic Flange Nut M6 X 1.0

233261416

$1.74

1030

Housing Bushing

506152297

$10.23

1031

Hex. Flange Screw M6 x 75

250001114

$3.61

1032

Elastic Flange Nut M6 X 1.0

233261416

$1.74

1040

Housing Bushing

506152297

$10.23

1050

Housing Bushing

506152937

$10.23

1051

Hex. Flange Screw M8 X 75

207687544

$7.23

1052

Hex. Elastic Flange Nut M8

233281416

$1.25

1053

Stopper Plate

506152938

$10.23

1100

Cap

506153294

$25.35

1110

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

1250

Rod Ass'y | Includes 1250 to 1250g

506153020

$69.20

1250b

LH Threaded Ball Joint

506152344

$39.97

1250c

LH Threaded Hex. Jam Nut M10

250100016

$0.72

1250d

RH Threaded Ball Joint

506152684

$42.28

1250e

RH Threaded Hex. Jam Nut M10

732610010

$0.72

1260

Washer

506152713

$13.78

1280

Washer

506152582

$4.42

1290

Hex. Screw M10 X 1.5 X 65

207006544

$2.29

1300

Hex. Flange Elastic M10 x 1.5

233201464

$6.18
