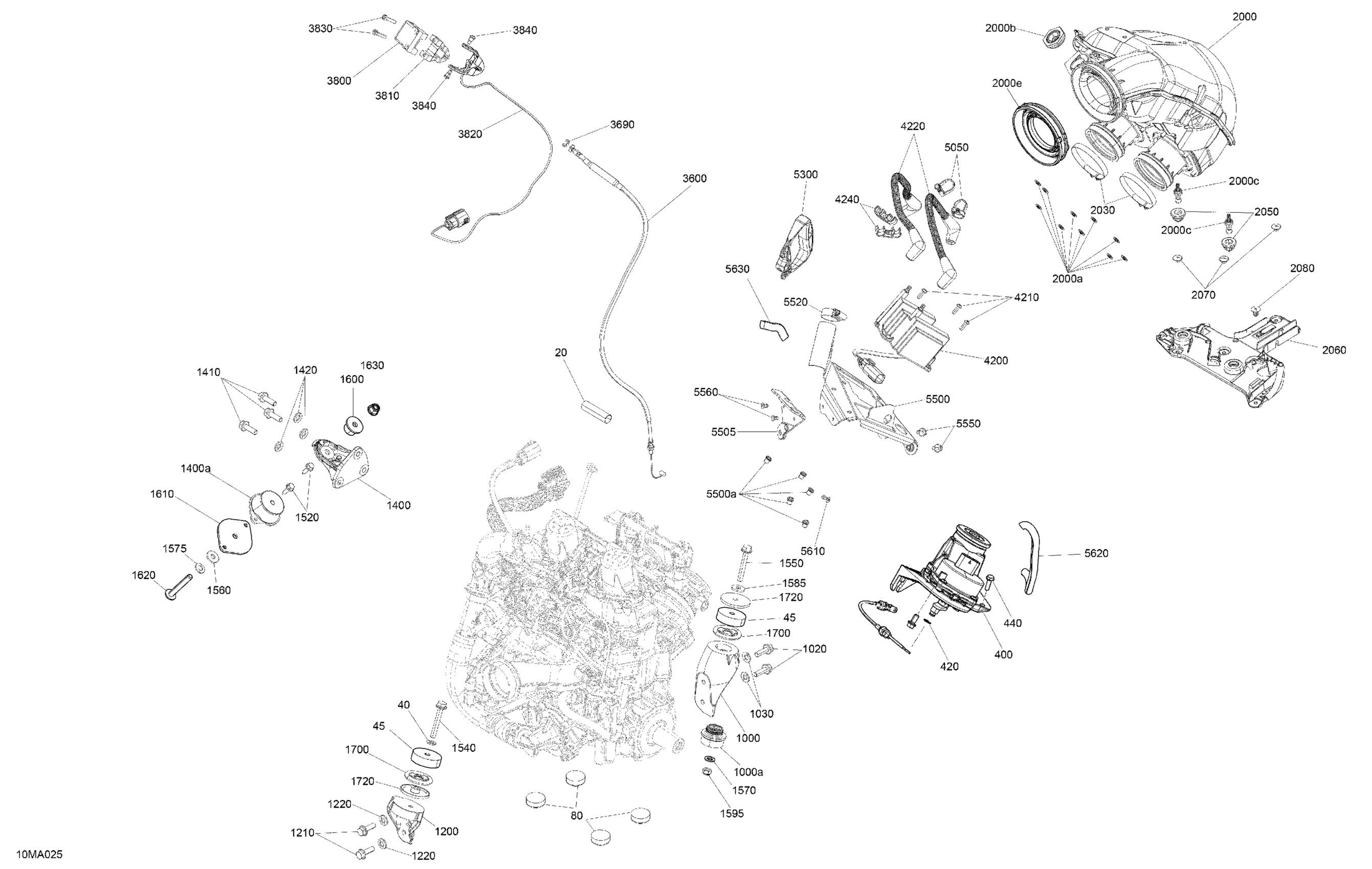

Ski-Doo MXZ 600RS - 2021 Engine - System Diagram

#

Description
Price

20

Braided Sleeve 60MM Long

515178492

$5.22

40

Yellow, Washer

503183200

$3.00

45

Limiter

512061340

$38.43

80

Stopper

512061204

$22.28

400

Servo Motor Ass'y

420889432

$311.51

420

Circlip

293370122

$4.00

440

Hex. Flange Screw, Scotch Grip

207551634

$1.66

1000

Support Ass'y | Includes 1000 to 1000b

512061283

$76.89

1000a

Rubber Mount

512061284

Unavailable

1020

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.07

1030

Conical Spring Washer M8

250200146

$0.83

1200

Front PTO Support

512061025

$29.97

1210

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.07

1220

Conical Spring Washer M8

250200146

$0.83

1400

MAG Support | Includes 1400 to 1400b

512061349

$76.89

1400a

Rubber Mount

512061284

Unavailable

1410

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.07

1420

Conical Spring Washer M8

250200146

$0.83

1520

Hex. Flange Screw M6 X 16

250001062

$1.43

1540

Hex. Flange Screw Din.6921 S.Grip M8 x 60

207586046

$1.94

1550

Hex. Flange Screw M8 X 55

207585544

$1.42

1560

Washer

506151245

$0.91

1570

Flat Washer With Teflon 8 mm

250200008

$3.12

1575

Conical Spring Washer M8

250200146

$0.83

1585

Yellow, Washer

503183200

$3.00

1595

Hex. Elastic Stop Nut M8

232581414

$0.47

1600

Limiter

512061351

$16.89

1610

Shim

512061347

$6.26

1620

Torx Screw M8 X 55

250000535

$2.63

1630

Hex. Flange Elastic Nut M8

233281414

$1.14

1700

Engine Stopper

512061137

$8.34

1720

Spacer

512061335

$19.20

2000

Chamber Ass'y | Includes 2000 to 2000h

508001093

$171.51

2000a

Push Nut

732610072

$1.72

2000b

Rubber

512061083

$8.38

2000c

Screw

420441840

$2.06

2000e

Boot

508000805

$16.89

2030

GEMI Clamp

293650212

$6.26

2050

Rubber Cap

420201630

$4.28

2060

Airbox Support

512061274

$10.57

2070

Pop Rivet 3/16"

293150103

$0.54

2080

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

3600

Throttle Cable

512061295

$19.97

3690

Circlip

414274500

$0.74

3800

Upper Housing

512061365

$73.05

3810

Lower Housing

512061294

$73.05

3820

Throttle Ass'y

512061266

$114.58

3830

Socket Screw M5 X 25

205052544

$1.34

3840

Flange Screw M5x12

250000991

$6.18

4200

Ignition Coil

512061168

$129.97

4210

Torx Screw M5 X 20

250000724

$1.39

4220

Ignition Cable

512061166

$26.89

4240

Spark Plug Wire Holder

512061238

$4.28

5050

Clamp

512060993

$5.22

5300

Starter Grip

512060136

$14.54

5500

Support | Includes 5500 to 5500b

512061276

$83.82

5500a

Insert M5 X 0.8

293450268

$1.95

5505

Support

512061296

$18.43

5520

Gear Clamp

509000931

$12.52

5550

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

5560

Avex Rivet

390909100

$0.29

5610

Pop Rivet 3/16"

390402300

$0.75

5620

Was 409901700 Tubing (9 mm)

219704399

$79.97

5630

Was 409901700 Tubing (9 mm)

219704399

$79.97
