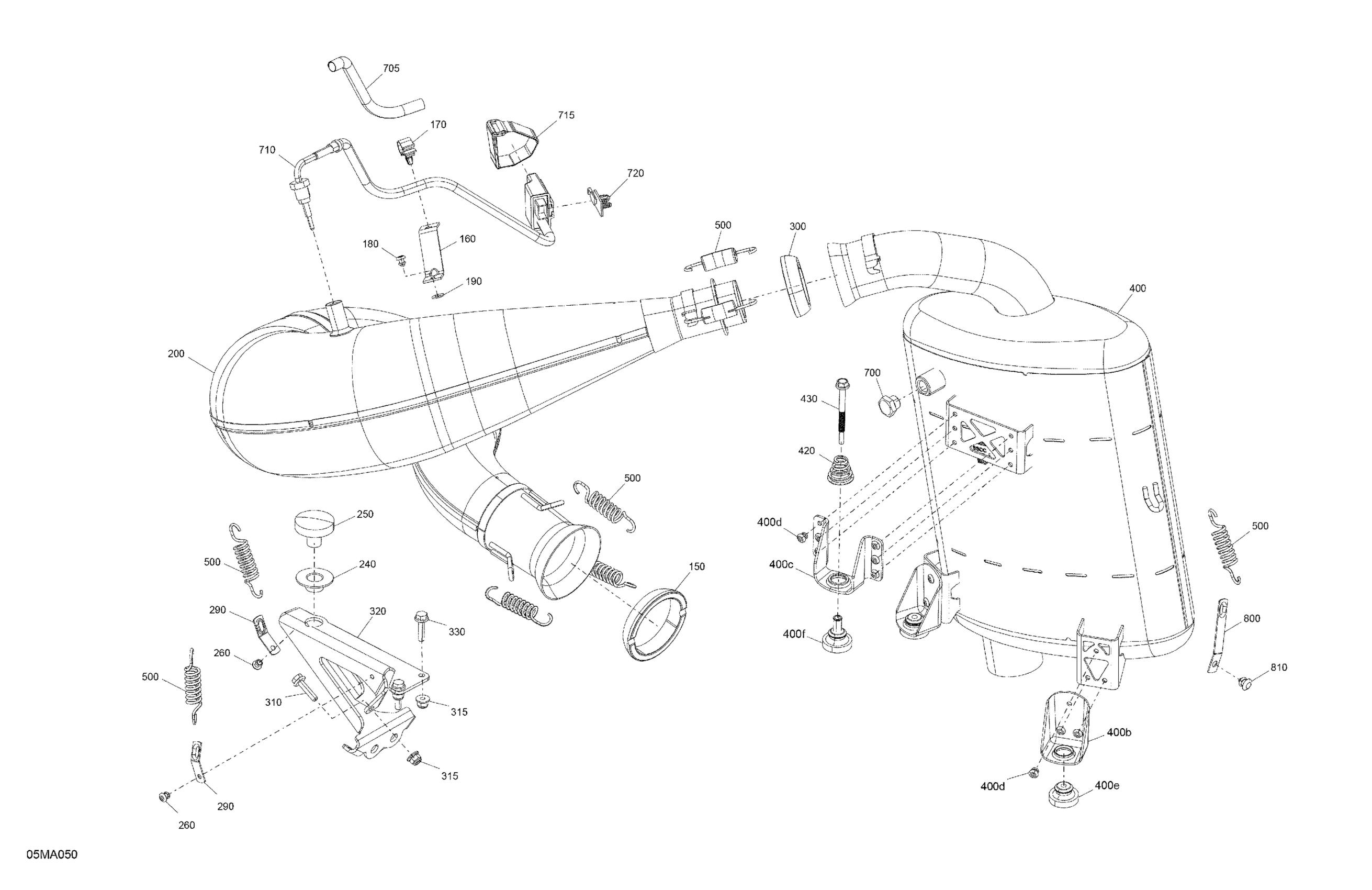

Ski-Doo MXZ 600RS - 2021 Engine - Exhaust Diagram

#

Description
Price

150

Exhaust Gasket

514053487

$26.12

160

Support

514055512

$3.09

170

Tie Rap Mount (screwable)

515176795

$5.11

180

Avex Rivet

390909200

$0.29

190

Washer 3/16

514055537

$0.98

200

Pipe

514055809

$646.12

240

Support Stopper

514055831

$19.20

250

Rubber Bumper

514053654

$49.20

260

Avex Rivet

390909200

$0.29

290

Spring Bracket

514054522

$6.28

300

Exhaust Gasket

514055294

$24.58

310

Hex. Flange Screw M6 X 25

207662544

$0.53

315

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

320

Support

514055830

$68.99

330

Hex. Flange Screw M6 X 25

207662544

$0.53

400

Muffler Ass'y | Includes 400 to 400g

514055429

$738.43

400b

Support

514055231

$5.23

400c

Support

514055406

$5.23

400d

Avex Rivet

390909200

$0.29

400e

Stopper

514055203

$19.20

400f

Stopper Ass'y

514056138

$12.58

420

Spring

514055282

$5.24

430

Hex. Flange Screw M6

250000926

$0.83

500

Spring

514055198

$6.20

700

Hexagonal Head Pipe Plug M14

250100074

$12.49

705

Heat Shield

514055832

$10.63

710

Module

515178170

$179.97

715

Velcro Strip

508000820

$7.35

720

Support

514055393

$2.60

800

Spring Bracket

514055644

$16.89

810

Hemlock Rivet, 6.5 mm

293150096

$3.17
