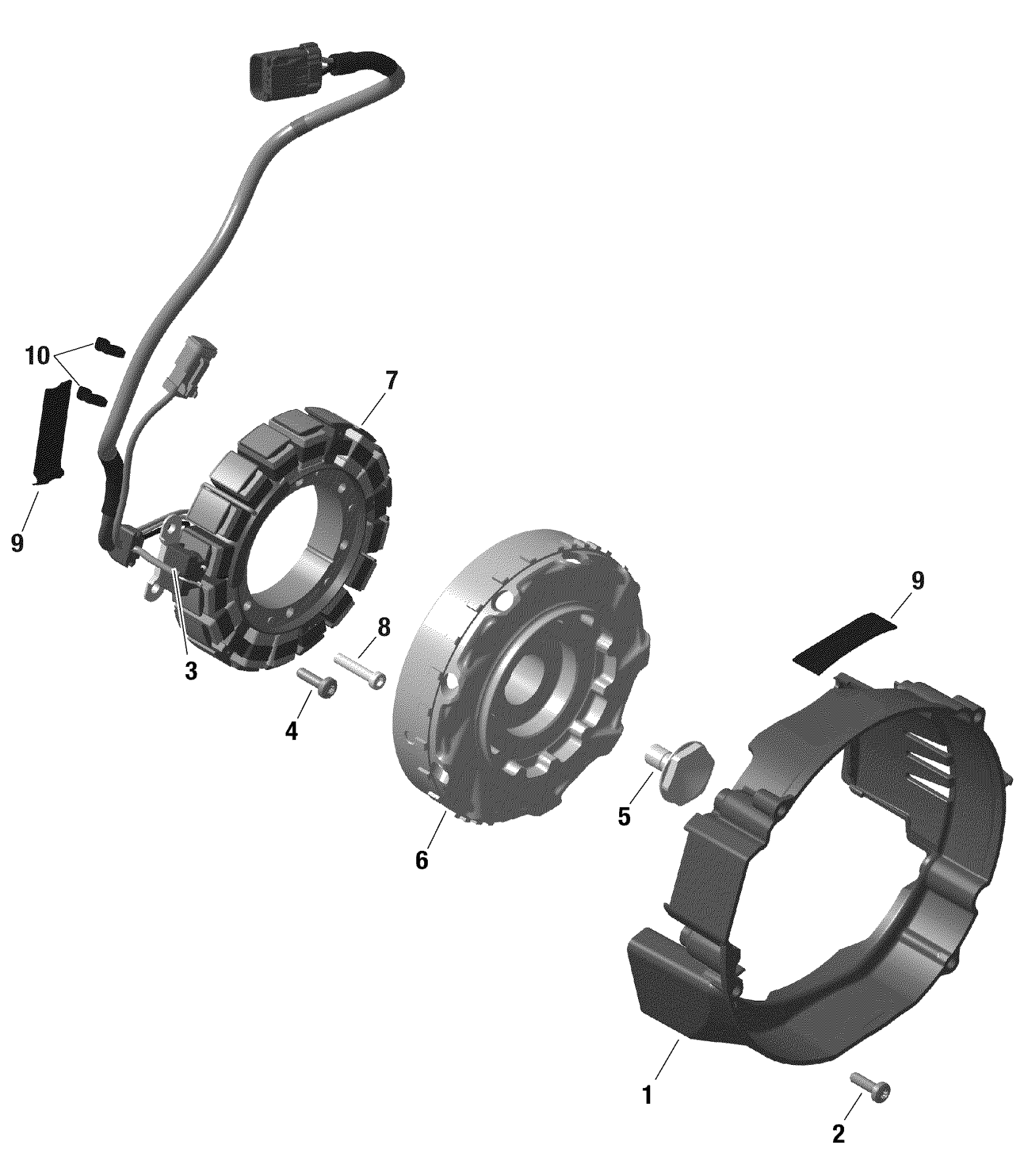

Ski-Doo 008 - MXZ 600RS - North America, 2021 01- Rotax - Magneto Diagram

Ignition Housing

420911855

$22.49

Torx Flange Screw M6 X 20

420441386

$2.11

Pickup Ass'y

420966842

$109.99

Torx Flange Screw M6 X 20

420441386

$2.11

Collar Hex Screw M12 X 25

420840851

$20.99

Magneto Flywheel

420866049

$558.99

Stator Ass'y 55V/1300W

420864427

$478.99

Allen Screw M6 X 30

420540001

$3.29

Adhesive Pad, 1.6 mm X 20 mm X 60 mm

420201360

$2.99

Locking Tie 175 X 4 MM

420651817

$1.05
